重量轻的3D图像全数字超声波扫描仪
说明：
使用任何Windows计算机
UBox超声波箱易于使用，只需要通过USB电缆将其连接到电脑，并将软件安装在计算机中。然后可以实现作为基于计算机的超声波B扫描仪的功能。
键盘是使用电脑键盘，通过软件可以将自己的电脑键盘键定义为某个功能按钮。如“空格”键可以定义为“冻结”按钮，'+'和' - '可以设置为增加和减少，全部由您的define.increase和减少，全部由您的定义。
重量轻3D图像全数字超声波扫描仪主要特点
- 使用用户的电脑，丢失成本超声波扫描仪
- 小而轻
-PC为基础，功能强大，大容量存储
全数字，清晰的图像
-3D图像功能（选项）
由电脑的USB激光/喷墨打印机打印
- 多语言：英文，法文，德文，西班牙文，俄文，意大利文，葡萄牙文等。
规范：
- 操作系统：Windows XP（最佳）或Windows 7
-D最大扫描深度：最大250毫米
- 多频：5段频率
-Zoom：10比，1.5,2.0,2.5,3.0,3.5,4.0,4.5,5.0,5.5,6.0
- 图像灰度级：256级灰阶
- 循环：最大1024帧
- 扫描模式：B，2B，B / M，M，4B，9B，ZOOM（实时放大B模式）
图像处理：预处理，后处理，动态范围，帧率，线平均，边缘;增强，黑/白反转;灰度调整，对比度，亮度，γRevision.evision。vision.
- 测量和计算（人）：
B模式：距离，环境，面积，体积，角度，比例，狭窄，剖面，直方图;
M模式：心率，时间，距离，斜率和狭窄;
妇科测量：子宫，子宫颈，子宫内膜，L / R卵巢;
产科：妊娠年龄，胎儿重量，AFI;
心脏病学：LV，LV功能，LVPW，RVAWT;
泌尿外科：膀胱容量，膀胱容量，RUV，前列腺，肾脏;
小部件：光学，甲状腺，下颌和脸部。
- 测量和计算（兽医）：牛：BPD，CRL，TD;
马：ga狗：gs猫：hd，bd;羊：bpd，crl，td
- 图像存储：由计算机硬盘或USB磁盘
打印：由USB激光/喷墨打印机与电脑
-DICOM3.0，医学数字成像与通信
-3D图像功能（可选）：可以通过任何探头获得重建的3D图像
- 重量：一个探头约1.2kg
- 电池工作时间（可选）：约3小时
-Probe连接器：2
选择我们的原因
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

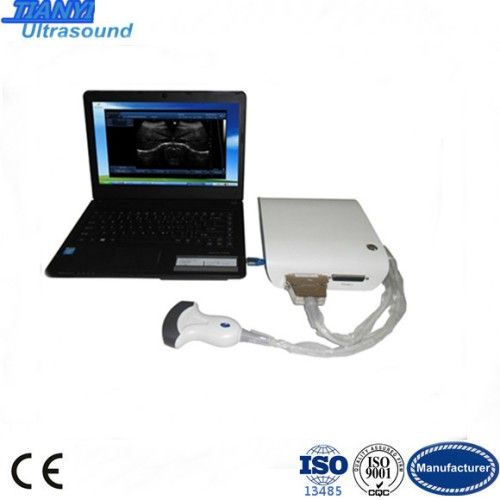

Light weight 3D image full digital ultrasound scanner
Instructions:
Work with any windows computer
UBox Ultrasound Box is easy to use, only need to connect it to computer by USB cable and install the software in the computer. Then can realizable the function as a computer based ultrasound B Scanner.
The keyboard is use the computer keyboard, by software you can define your own computer keyboard keys to a certain function button. Such as the 'Space' key can be defined as 'Freeze' button, the '+' and '-' can set to value increase and decrease, all by your define.increase and decrease, all by your define.
Light weight 3D image full digital ultrasound scanner Main Features
-Use computer of user's, lost cost to get ultrasound scanner
-Small and light
-PC based, powerful function, large volume storage
-Full digital, clear image
-3D image function(option)
-Print by computer's USB laser/inkjet printers
-Multiple language: English, French, German, Spanish, Russian, Italian, Portuguese, etc.
Specification:
-Operation system: Windows XP(Best) or windows 7
-D-Maximum Scanning Depth: Max. 250mm
-Multi-frequency: 5 segment frequencies
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image gray scale: 256 level gray scale
-Cine Loop: Max. 1024 frames
-Scann mode: B, 2B, B/M, M, 4B, 9B, ZOOM(Real-time zoom on B mode)
-Image processing: Pre-processing, after-processing, dynamic range, frame rate, line average, edge; Enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ Revision.evision.vision.
-Measurement and calculation(human):
B mode: Distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
M mode: Heart rate, time, distance, slope and stenosis;
Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
Obstetric: Gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: Transition zone volume, bladder volume, RUV, prostate, kidney;
Small parts: Optic, thyroid, jaw and face.
-Measurement and calculation(veterinary): Cattle: BPD, CRL, TD;
Horse: GA; Dog: GS; Cat: HD, BD; Sheep: BPD, CRL, TD
-Image store: By computer hardisk or USB disk
-Print: By USB laser/inkjet printers with computer
-DICOM3.0, medical digital imaging and communication
-3D image function(optional): Can get rebuilt 3D image by any probe
-Weight: With one probe around 1.2kg
-Work time by battery(optional): About 3 hours
-Probe Connector: 2
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.ystem.stem.
