TY-6868A-2是全数字黑白超声诊断成像系统。
超薄型超声波监护仪系统扫描仪医疗设备主要规格
---------------------------------------------------------------------------------------------------------------------
显示器：14VGA，15寸高分辨率TFT LED显示屏
传感器连接器：3
支持输出设备：2-4个USB设备，VIDEO OUT，VGA，DICOM3.0
显示模式：b，b / b，b / m，m，4b，9b，变焦
图像灰度：256级灰度级
图像处理：预处理，后处理，动态范围，帧相关，线平均，边缘增强，黑/白反转，上/下反转，灰度调整，对比度，亮度，伽马校正，降噪
增益：可调0〜100dB
时间增益控制（TGC）：8段调整，B，B / B，M，4B分别调整
电影循环：64,128,256,512和1024帧可供选择
自动/手动电影循环
薄型LED显示屏超声波系统扫描仪医疗设备测量与计算
------------------------------------------------------------------------------------------------------------------------------------
B模式：距离，环境/面积，体积，角度，比例，狭窄，直方图，横截面，髋关节角度;
M模式：心率，时间，距离，速度，斜率;
腹部测量：肝，胆囊，L / R肾，胰腺，脾;
妇科测量：子宫，子宫颈，子宫内膜，L / R卵巢，L / R卵泡;
产科：妊娠年龄，胎儿重量，AFI;
心脏病学：LV，LV功能，LVPW，RVAWT;
泌尿外科：膀胱体积，RUV，前列腺，肾脏;
小器官：视觉，甲状腺，下颌和脸部，颈部;
存储：图像存储，电路环路，存储容量≥10G。测量结果和报告可以存储。red.
患者信息管理：诊断病例管理，报告打印，评论库，图像输出（USB），导入数据。
标记：评论，身体标记（140种不同部位的选项），箭头。
比例：10比：1.5,2.0,2.5,3.0,3.5,4.0,4.5,5.0,5.5,6.0

选择我们的原因
--------------------------------------
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

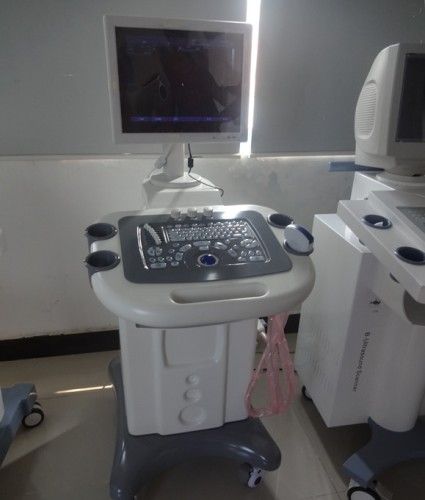

TY-6868A-2 is a full digital black and white ultrasound diagnostic imaging system.
Thin LED monitor ultrasound system scanner medical equipment main specifications
---------------------------------------------------------------------------------------------------------------------
Monitors: 14VGA, 15 inch high-resolution TFT LED monitor
Connectors of transducers: 3
Supported output apparatus: 2-4 USB devices, VIDEO OUT, VGA, DICOM3.0
Display mode: B, B/B, B/M, M, 4B, 9B, ZOOM
Image gray scale: 256 level gray scale
Image processing: Pre-processing, after-processing, dynamic range, frame correlation, line average, edge enhancement, Black/White inversion, Up/Down inversion, Gray scale adjustment, contrast, brightness, gamma correction, noise reduction
Gain: Adjustable within 0~100dB
Time gain control(TGC): 8 segment adjustment, B, B/B, M, 4B adjustment separately
Cine loop: 64, 128, 256, 512 and 1024 frame to choose
Auto/manual cine loop
Thin LED monitor ultrasound system scanner medical equipment Measurement and calculation
------------------------------------------------------------------------------------------------------------------------------------
B mode: Distance, circumstance/area, volume, angle, ratio, stenosis, histogram, cross section, hip joint angle;
M mode: Heart rate, time, distance, speed, slope;
Abdominal measurement: Liver, gallbladder, L/R kidney, pancreas, spleen;
Gynecological measurement: Uterus, cervix, endometrium, L/R ovary, L/R follicle;
Obstetric: Gestation age, fetal weight, AFI;
Cardiology: LV, LV function, LVPW, RVAWT;
Urology: Bladder volume, RUV, prostate, kidney;
Small organs: Optic, thyroid, jaw and face, neck;
Storage: Image storage, cine loop, storage capacity ≥ 10G. Measurement result and report can be stored.ored.red.
Patient information management: Diagnosis case management, report print, comment library, image output(USB), import data.
Marks: Comment, body mark(140 kinds for different parts' option), arrow.
Zoom: 10 ratio: 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0

Reasons for choosing us
--------------------------------------
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.stem.stem.
