医用数码液晶笔记本电脑超声波扫描仪

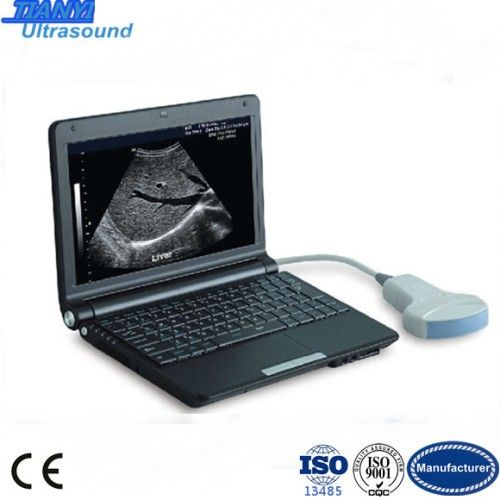

TY-6858A-1是具有高分辨率液晶屏幕的医疗数字笔记本电脑超声机，重量仅2公斤（含一个探头），连续工作2小时，电池室外诊断非常方便，以及兽医用途。
探头连接器：1
10.1'高分辨率液晶屏幕
灰度：256
显示模式：B，B / B，4B，B / M，M
探头频率：2.5MHz -10.0MHz（取决于探头类型）
2个USB端口（可以使用U盘升级）
1个迷你2.0USB端口和1个视频输出
医用数码液晶笔记本电脑超声波扫描仪
测量功能：距离，面积，圆周，体积，心率，怀孕周，
胎儿重量等。
横向分辨率：≤3mm（深度≤80mm）≤4mm（80mmthth≤130mm）pth≤130mm）mm)pth≤130mm)
纵向分辨率：≤2mm（深度≤80mm）≤3mm（80mmthth≤130mm）pth≤130mm）mm)pth≤130mm)
可检测深度：≥160mm盲区：≤5mm≤5mm5mm≤5mm
几何位置变形：横向≤15纵向≤10l≤10;10l≤10
深度扫描：≥170mm70mm70mm
身体标记：各种身体标记（超过50种）“）”"
显示信息：日期，时间，年龄，性别，患者ID和医院信息，增益，聚焦，注释，滚动，缩放设置
变焦：×0.8×0.9×1.0×1.1×1.2×1.3×1.4×1.5倍; 1.1×1.2×1.3×1.4×1.5;1.3×1.4×1.5times;1.1×1.2×1.3×1.4×1.5
探头变频：（2.5-3.5-4.0-5.0MHZ）电子凸阵列，
TGC调整：3 TGC调整
电影循环：192帧
图像处理：上/下，左/右，黑/白
预设：时间，医院名称，胎儿体重公式，图像格式，伪色选择等。
存储：内置内存，通过USB磁盘存储，保存的图像可以调用进行重新分析（1024个永久存储）
包装，工作场所和贸易展览会
选择我们的原因
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

Medical digital LCD Laptop ultrasound scanner Main Feature
TY-6858A-1 is a medical digital laptop ultasound machine with high resolution LCD screen and weights only around 2 KGs(with one probe),it is with li-battery for continuous working for 2 hours which is very convenient for doctor outdoor diagnosis,as well as for veterinary uses.
Probe connector: 1
10.1 ' High-Resolution LCD screenscreen
Gray scale: 256
Display mode: B, B / B, 4B, B / M, M
Probe frequency:2.5MHz -10.0MHz (Depends on the probe type)
2 USB Port(Can be upgrade with U disk)
1 mini 2.0USB Port and 1 video output
Medical digital LCD Laptop ultrasound scanner Main Functions
Measuring functions: distance, area, circumference, volume, heart rate, pregnant week,
fetall weights,etc.
Lateral resolution:≤3mm(depth≤80mm) ≤4mm(80mmdepth≤130mm)pth≤130mm)mm)pth≤130mm)
Longitudinal resolution:≤2mm(depth≤80mm) ≤3mm(80mmdepth≤130mm)pth≤130mm)mm)pth≤130mm)
Detectable depth:≥160mm Blind area:≤5mm≤5mm5mm≤5mm
Geometrical position distortion:Lateral≤15 Longitudinal≤10l≤10;10l≤10
Depth scanning: ≥170mm70mm70mm
Body markers: a variety of body markers (more than 50 sorts)')""
Display information: date, time, age, sex,patient ID and hospital information , gain, focusing, comments , scroll, zoom setting
Zoom:×0.8×0.9×1.0×1.1×1.2×1.3×1.4×1.5times;1.1×1.2×1.3×1.4×1.5;1.3×1.4×1.5times;1.1×1.2×1.3×1.4×1.5
Probe frequency conversion: (2.5-3.5-4.0-5.0MHZ) electronic convex array,
TGC adjustment: 3 TGC adjustments
Cine loop: 192 frames
Image processing: up/down, left/right, black/white
Pre-set:Time,hospital name,fetal weight formula,image format,pseudo-color select ,ect.
Storage: Built-in memory,storage via USB disk,saved image can be recalled for re-analysis.(1024 permanent storage)
Packing,workplace and trade fair
Reasons for choosing us
-Manufacturer: Real manufactuer in China,get supplied from our factory directly.
-Your professional supplier: been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance:we're dedicated to the production and r&s of ultrasonic imaging system.ystem.stem.
