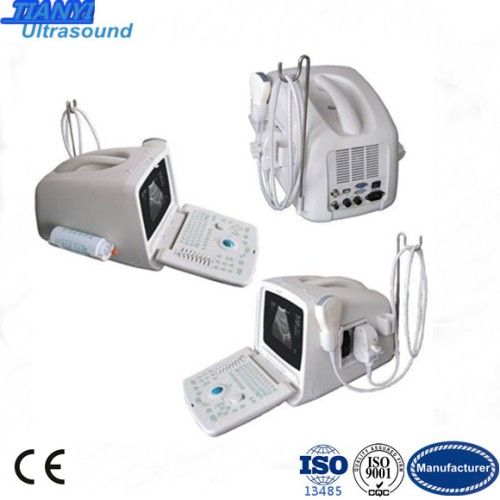

超声波扫描仪（TY-6858A-1）
TY-6858A-1由计算机和数字扫描转换器（DSC）控制，使用可变孔径，多级动态聚焦，具有低噪声前置放大器的动态宽带，对数压缩，TGC控制，动态滤波，边缘增强帧相关技术等。图像清晰，稳定，分辨率高。
主要特点：
图像模式：B，B / B，B / M，M，4B
2.最大显示深度：240mm
3.分辨率：横向2mm，纵向1mm
4.显示器：10'黑白SVGA逐行扫描显示。
灰度：256
6.测量功能：距离，面积，周长，体积，椭圆，心率，孕龄，胎儿出生体重，预计分娩日期的计算包
7.倍率：×1.0，×1.2，×1.5，×2.0×1.5，×2.0 × 2.0 × 1.5, × 2.0
8.深度升级：放大升级
身体标记：各种身体标记
10. TGC调整：8TGC调整
电影循环：256帧
12.图像处理：上/下，左/右，黑/白，帧相关，γ校正rection
13.伪色功能：VGA，PAL-D视频输出端子
探头连接器：2，可连接多个探头
手持式超声波扫描仪（TY-6858A-1）
主要功能
逐行扫描输出，无闪烁，图像清晰细腻
2.便携式结构，使用轨迹球和触摸屏键盘
3.使用当前领先的超声技术
4.动态聚焦系统，动态频率扫描，多层变频探头
伪色的5.8种方式，
6.连接外部大屏幕显示器，彩色显示器，录像机，视频图像打印机等设备。
选择我们的原因
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

Price ultrasound scanner(TY-6858A-1)
TY-6858A-1 is controlled by computers and digital scan converters(DSC), the use of variable apertures, multi-stage dynamic focus, dynamic broadband with low-noise pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement, frame correlation technologies etc. The image is clear, stable, and of high-resolution.
Main Features:
1. Image mode: B, B/B, B/M, M, 4B
2. Max Display depth: 240mm
3. Resolution Power: Lateral 2mm, Longitudinal 1mm
4. Monitor: 10'black and white SVGA progressive scanning display.splay.
5. Gray scale: 256
6. Measureing functions: Distance, area, perimeter, volume, ellipse, heart rate, gestational age, fetal birth weight, computing packages for expected date of childbirth
7. Magnification: × 1.0, × 1.2, × 1.5, × 2.0 × 1.5, × 2.0 × 2.0 × 1.5, × 2.0
8. Depth upgrade: Enlarge upgrading
9. Body markers: A variety of body markers
10. TGC adjustment: 8TGC adjustments
11. Cine loop: 256 frames
12. Image processing: Up/down, left/right, black/white, frame correlation, γ Correctionrectionrection
13. Pseudo-color function: VGA, PAL-D video output terminal
14. Probe connectors: 2, multiple probes connectable
Handheld ultrasound scanner(TY-6858A-1)
Main functions
1. Progressive scanning output without flickering, delicate and clear images
2. Portable type structure, use the trackball and the touch screen keyboard
3. Use current leading ultrasound technology
4. Dynamic focus system, dynamic frequency scanning, multi-layer frequency conversion probes
5.8 ways for pseudo-color,
6. Connected with external large-screen monitors, color displays, video recorders, video image printers and other equipments.
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.stem.stem.
