便携式超声波机（TY-6868A-1）
探头连接器：2
灰度：256
显示模式：B，B / B，4B，B / M，M
探头频率：2.5MHz -10.0MHz（取决于探头类型）
存储：内置内存，通过U盘存储，保存的图像可以被调用进行重新分析。 （1024个永久存储），8G硬盘（可升级）
TGC调整：8 TGC调整
USB移动存储，数字打印机，视频打印机，LAN端口（DICOM传输端口）
凸度参数：标称频率：3.5MHz
线性参数：额定频率：7.5MHz（可选）
内腔凸度参数：标称频率：6.5MHz（可选）
测量与计算：tion:
B模式常规测量：距离，圆周，面积，体积，角度，比例，压缩比等。
M模式常规测量：心率，时间，距离，距离，速度，狭窄率等。
妇科测量：子宫，子宫颈，子宫内膜，卵巢（左右），卵泡（左右）等。
产妇测量：胎龄，胎儿体重，羊水深度指数等。
心脏病学测量：左心室测量，左心室功能和脑室厚度评估等。
泌尿科测量：排尿量，膀胱容量，残尿量等。
其他测量：轮廓测量，髋关节测量等。
用户可以自定义其他测量。

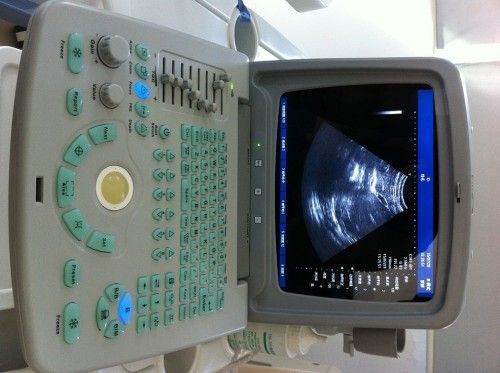

portable ultrasound machine(TY-6868A-1)
Probe connector: 2
Gray scale: 256
Display mode: B, B / B, 4B, B / M, M
Probe frequency: 2.5MHz -10.0MHz (Depends on the probe type)
Storage: Built-in memory, storage via USB disk, saved image can be recalled for re-analysis. (1024 permanent storage), 8G HDD (can be upgraded)
TGC adjustment: 8 TGC adjustments
USB mobile storage, digital printer, video printer, LAN port(DICOM transmit port)
Convex Parameter: Nominal frequency: 3.5MHz
Linear Parameter: Nominal frequency: 7.5MHz (optional)
Endocavity Convex Parameter: Nominal frequency: 6.5MHz (optional)
Measurement & Calculation:ation:tion:
B mode conventional measurement: distance, circumference, area, volume, angle, ratio, stricture ratio and so on.
M mode conventional measurement: heart rate, time, distance, distance, speed, stricture ratio and so on.
Gynecology measurement: womb, cervix, endometrial, ovary (left and right), ovarian follicle (left and right) and so on.
Obstetrics measurement: gestational age, fetus weight, amniotic fluid depth index and so on.
Cardiology measurement: left ventricle measurement, left ventricle function, and ventricle thickness evaluation and so on.
Urology measurement: displacement volume, bladder capacity, residual urine output and so on.
Other measurement: profile measurement, hip joint measurement and so on.
Users can customize other measurement.
