CE便携式兽用超声机
图像模式：B，B / B，B / M，M，4B
最大显示深度：240mm
分辨力：横向2mm，纵向1mm
10'B / W监视器
灰度：256
放大倍率：×1.0，×1.2，×1.5，×2.0，×1.5，×2.0× 2.0, × 1.5, × 2.0
深度升级：放大升级
显示信息：日期，时间，病历数字，放大倍率，测量值，字符笔记，帧相关系数，扫描深度，探针类型组合，中英文转换，全屏字符编辑等。
TGC调整：8TGC调整
电影循环：256帧
图像处理：上/下，左/右，黑/白，帧相关，γ校正rection
伪色功能：VGA，PAL-D视频输出端子
探头连接器：2，多个探头可连接
CE便携式兽用超声波机主要功能
应用由计算机和数字扫描转换器（DSC）控制的便携式超声波扫描仪，使用可变孔径，多级动态聚焦，具有低噪声前置放大器的动态宽带，对数压缩，TGC控制，动态滤波，边缘增强，帧相关技术等。图像清晰，稳定，分辨率高。
逐行扫描输出，无闪烁，图像清晰细腻，10'黑白VGA显示，高清晰度。
2.便携式结构，精致，精致;使用轨迹球和触摸屏键盘结构组合，符合人体工程学原理，高效，方便灵活。
3.利用当前领先的超声波技术在宽带技术领域，提高灵敏度和穿透能力，最大可能性，确保高质量的二维图像。
4.动态聚焦系统，动态频率扫描，高密度多层变频探头。
5.使用数字图像处理，8种伪色，一组黑白图像，提高诊断准确率。
6.图像观察的灵活处理方法;在同一屏幕中显示多个静态图像和动态图像。
7.碎石定位功能
8.使用最新的PLD和VGA视频输出设备，可以连接外部大屏幕显示器，彩色显示器，录像机，视频图像打印机等设备。
9.采用触摸式键盘跟踪球，高效，方便灵活。
选择我们的原因
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

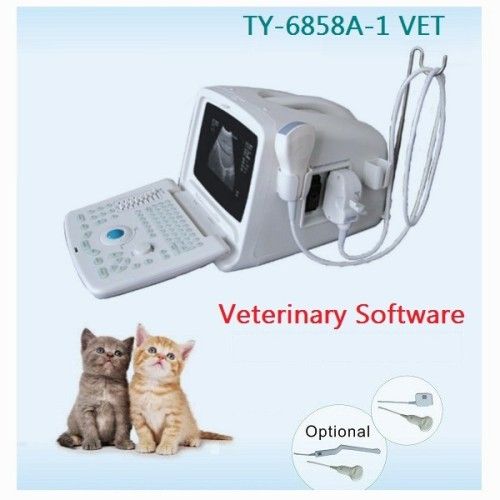

CE portable veterinary ultrasound machine
Image mode: B, B/B, B/M, M, 4B
Max Display depth: 240mm
Resolution Power: Lateral 2mm, Longitudinal 1mm
10'B/W monitoronitor
Gray scale: 256
Magnification: × 1.0, × 1.2, × 1.5, × 2.0, × 1.5, × 2.0× 2.0, × 1.5, × 2.0
Depth upgrade: Enlarge upgrading
Display information: Date, time, medical records number, magnification, measurement value, character notes, coefficient of frame correlation, scanning depth, portfolio of probe type, conversion in both English and Chinese, full-screen character edit etc.
TGC adjustment: 8TGC adjustments
Cine loop: 256 frames
Image processing: Up/down, left/right, black/white, frame correlation, γ Correctionrectionrection
Pseudo-color function: VGA, PAL-D video output terminal
Probe connectors: 2, multiple probes connectable
CE portable veterinary ultrasound machine Main functions
Application of portablet ultrasound scanner controlled by computers and digital scan converters(DSC), the use of variable apertures, multi-stage dynamic focus, dynamic broadband with low-noise pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement, frame correlation technologies etc. The image is clear, stable, and of high-resolution.
1. Progressive scanning output without flickering, delicate and clear images, 10 ' black-and-white VGA display with high definition.nition.
2. Portable type structure, exquisite, refined; Use the trackball and the touch screen keyboard structure consisting with the ergonomic principles, efficient, convenient and flexible.
3. Use current leading ultrasound technology in the area of broadband technologies, increase the sensitivity and the ability of penetration with largest possibility, ensure high-quality two-dimensional image.
4. Dynamic focus system, dynamic frequency scanning, multi-layer frequency conversion probes with high density.
5. Use digital image processing, 8 ways for pseudo-color, a set of black-and-white image, improve the accuracy rate of diagnosis.
6. Flexible processing approaches to image observation; Display multiple static images and dynamic images in the same screen.
7. Positioning function for lithotripsy
8. Use the latest PLD and VGA video output devices, can be connected with external large-screen monitors, color displays, video recorders, video image printers and other equipments.
9. Adopt touch-operated keyboard and track ball, efficient, convenient and flexible.
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.ystem.stem.
