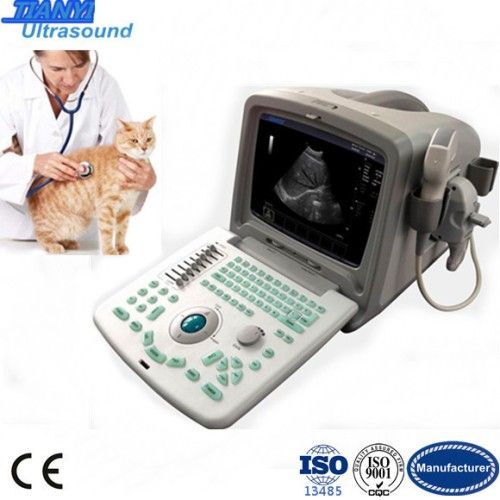

CE Certified Veterinary Portable Ultrasound Scanner
CE认证的兽医便携式超声波扫描仪
| 型号。 | TY-6858a-1 |
| 类型 | 超声波扫描仪 |
| 组 | 人与兽医 |
| 医疗器械注册/记录号 | 20142231167 |
| 颜色 | 白色，灰色，灰色和白色 |
| 规范 | ce，iso9001，iso13485 |
| HS编码 | 90181210 |
| 分类 | 成像诊断设备 |
| 证明 | ce，iso13485 |
| 医疗器械监管类型 | 类型2 |
| 尺寸 | 10'MonitorMonitor |
| 商标 | 天一/ OEM |
| 起源 | 中国 |
CE认证兽医便携式超声波扫描仪主要功能
逐行扫描输出，无闪烁，图像清晰细腻，10'黑白VGA显示，高清晰度。
2.便携式结构，精致，精致;使用轨迹球和触摸屏键盘结构组合，符合人体工程学原理，高效，方便灵活。
3.利用当前领先的超声波技术在宽带技术领域，提高灵敏度和穿透能力，最大可能性，确保高质量的二维图像。
4.动态聚焦系统，动态频率扫描，高密度多层变频探头。
5.使用数字图像处理，8种伪色，一组黑白图像，提高诊断准确率。
6.图像观察的灵活处理方法;在同一屏幕中显示多个静态图像和动态图像。
7.碎石定位功能
8.使用最新的PLD和VGA视频输出设备，可以连接外部大屏幕显示器，彩色显示器，录像机，视频图像打印机等设备。
9.采用触摸式键盘跟踪球，高效，方便灵活。
逐行扫描输出，无闪烁，图像清晰细腻，10'黑白VGA显示，高清晰度。
2.便携式结构，精致，精致;使用轨迹球和触摸屏键盘结构组合，符合人体工程学原理，高效，方便灵活。
3.利用当前领先的超声波技术在宽带技术领域，提高灵敏度和穿透能力，最大可能性，确保高质量的二维图像。
4.动态聚焦系统，动态频率扫描，高密度多层变频探头。
5.使用数字图像处理，8种伪色，一组黑白图像，提高诊断准确率。
6.图像观察的灵活处理方法;在同一屏幕中显示多个静态图像和动态图像。
7.碎石定位功能
8.使用最新的PLD和VGA视频输出设备，可以连接外部大屏幕显示器，彩色显示器，录像机，视频图像打印机等设备。
9.采用触摸式键盘跟踪球，高效，方便灵活。
| 图像模式 | b，b / b，b / m，m，4b |
| 最大显示深度 | 240毫米 |
| 分辨力 | 横向2mm，纵向1mm |
| 监控 | 10'黑白SVGA逐行扫描显示。 |
| 灰度 | 256 |
| 测量功能 | 距离，面积，周长，体积，椭圆形，心率，胎龄， 胎儿出生体重，预计分娩日期的计算包 |
| 放大 | ×1.0，×1.2，×1.5，×2.0，×1.5，×2.0× 2.0, × 1.5, × 2.0 |
| 深度升级 | 放大升级 |
| 身体标记 | 各种身体标记 |
| 显示信息 | 日期，时间，病历数，放大，测量 值，身体标签，字符笔记，帧相关系数， 扫描深度，探针类型组合，英文转换 和中文，全屏字符编辑等 |
| TGC调整 | 8TGC调整 |
| 电线回路 | 256帧 |
| 图像处理 | 上/下，左/右，黑/白，帧相关，γ校正rection |
| 伪色功能 | VGA，PAL-D视频输出端子 |
| 探头连接器 | 2，可连接多个探头 |
| 出生期包装 | 猫，狗，羊，牛，马等 |
| 标准配置 | 主机1 pc凸头 可选探头：6.5mhz原始探针， 7.5mhz高频线性探头 |
| 总重量 | 12公斤 |
| 交货时间 | 付款后7天内 |
| 保证 | 12个月 |
| Model NO. | TY-6858A-1 |
| Type | Ultrasound Scanner |
| Group | Human and Veterinary |
| Medical Devices Reg./Record No. | 20142231167 |
| Color | White,Grey,Grey and White |
| Specification | CE, ISO9001, ISO13485 |
| HS Code | 90181210 |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Size | 10'MonitorMonitor |
| Trademark | Tianyi/OEM |
| Origin | China |
CE certified veterinary portable ultrasound scanner Main functions
1. Progressive scanning output without flickering, delicate and clear images, 10 ' black-and-white VGA display with high definition.nition.
2. Portable type structure, exquisite, refined; Use the trackball and the touch screen keyboard structure consisting with the ergonomic principles, efficient, convenient and flexible.
3. Use current leading ultrasound technology in the area of broadband technologies, increase the sensitivity and the ability of penetration with largest possibility, ensure high-quality two-dimensional image.
4. Dynamic focus system, dynamic frequency scanning, multi-layer frequency conversion probes with high density.
5. Use digital image processing, 8 ways for pseudo-color, a set of black-and-white image, improve the accuracy rate of diagnosis.
6. Flexible processing approaches to image observation; Display multiple static images and dynamic images in the same screen.
7. Positioning function for lithotripsy
8. Use the latest PLD and VGA video output devices, can be connected with external large-screen monitors, color displays, video recorders, video image printers and other equipments.
9. Adopt touch-operated keyboard and track ball, efficient, convenient and flexible.
1. Progressive scanning output without flickering, delicate and clear images, 10 ' black-and-white VGA display with high definition.nition.
2. Portable type structure, exquisite, refined; Use the trackball and the touch screen keyboard structure consisting with the ergonomic principles, efficient, convenient and flexible.
3. Use current leading ultrasound technology in the area of broadband technologies, increase the sensitivity and the ability of penetration with largest possibility, ensure high-quality two-dimensional image.
4. Dynamic focus system, dynamic frequency scanning, multi-layer frequency conversion probes with high density.
5. Use digital image processing, 8 ways for pseudo-color, a set of black-and-white image, improve the accuracy rate of diagnosis.
6. Flexible processing approaches to image observation; Display multiple static images and dynamic images in the same screen.
7. Positioning function for lithotripsy
8. Use the latest PLD and VGA video output devices, can be connected with external large-screen monitors, color displays, video recorders, video image printers and other equipments.
9. Adopt touch-operated keyboard and track ball, efficient, convenient and flexible.
| Image mode | B, B/B, B/M, M, 4B |
| Max Display depth | 240mm |
| Resolution Power | Lateral 2mm, Longitudinal 1mm |
| Monitor | 10'black and white SVGA progressive scanning display.isplay. |
| Gray scale | 256 |
| Measureing functions | distance,area,perimeter,volume,ellipse,heart rate,gestational age, fetal birth weight,computing packages for expected date of childbirth |
| Magnification | × 1.0, × 1.2, × 1.5, × 2.0, × 1.5, × 2.0× 2.0, × 1.5, × 2.0 |
| Depth upgrade | enlarge upgrading |
| Body markers | a variety of body markers |
| Display information | date, time, medical records number, magnification, measurement value,the body tag, character notes, coefficient of frame correlation, scanning depth,portfolio of probe type, conversion in both English and Chinese,full-screen character edit etc. |
| TGC adjustment | 8TGC adjustments |
| Cine loop | 256 frames |
| Image processing | up/down, left/right, black/white, frame correlation, γ correctionrectionrection |
| Pseudo-color function | VGA,PAL-D video output terminal |
| Probe connectors | 2, multiple probes connectable |
| Birth Period package | cat, dog, sheep, cow, horse etc. |
| Standard configuration | main unit 1 pc convex probe optional probe: 6.5mhz transviginal probe, 7.5mhz high frequency linear probe |
| Gross Weight | 12KG |
| Delivery Time | within 7 days after payment |
| Warranty | 12months |
