数码兽医笔记本超声波液晶显示屏主要特点
探头连接器：1
10.1'高分辨率液晶屏幕
灰度：256
显示模式：B，B / B，4B，B / M，M
探头频率：2.5MHz -10.0MHz（取决于探头类型）
2个USB端口（可以使用U盘升级）
1个迷你2.0USB端口和1个视频输出
---------------------------------------------------------------------------------------------------------------------------------------------
TY-6858A-1是一种小型医疗笔记本超声波设备，具有高分辨率液晶屏幕，重量约2公斤（含一个探头），也可以连续工作2小时，这对户外诊断非常方便，以及兽医用途。
----------------------------------------------------------------------------------------------------------------------------------------------
数码兽医笔记本超声波液晶显示主要功能
测量功能：距离，面积，周长，体积，心率，怀孕周，
重量等
横向分辨率：≤3mm（深度≤80mm）≤4mm（80mmthth≤130mm）th≤130mm）mm)th≤ 130mm)
纵向分辨率：≤2mm（深度≤80mm）≤3mm（80mmthth≤130mm）th≤130mm）mm)th≤ 130mm)
可检测深度：≥160mm盲区：≤5mm; 5毫米le; 5mm
几何位置变形：横向≤15纵向≤10≤10 10≤ 10
深度扫描：≥170mm70mm70mm
身体标记：各种身体标记（超过50种）“）”"
显示信息：日期，时间，年龄，性别，患者ID和医院信息，增益，聚焦，注释，滚动，缩放设置
变焦：×0.8×0.9×1.0×1.1×1.2×1.3×1.4×1.5; 1.1×1.2×1.3×1.4×1.5.3× 1.4× 1.5; 1.1× 1.2× 1.3× 1.4× 1.5
探头变频：（2.5-3.5-4.0-5.0MHZ）电子凸阵列，
TGC调整：3 TGC调整
电影循环：192帧
图像处理：上/下，左/右，黑/白
预设：时间，医院名称，胎儿体重公式，图像格式，伪色选择等。
存储：内置内存，通过U盘存储，保存的图像可以被调用进行重新分析。 （1024永久存储）
---------------------------------------------------------------------------------------------------------------------------------------
选择我们的原因
制造商：中国的真正的制造商，直接从我们工厂提供。
- 您的专业供应商：自1998年以来一直在超声波开发和制造领域。
- 价格稳定，性能稳定：我们致力于超声波成像系统的生产和研发。stem.

Digital Veterinary laptop ultrasound with LCD display Main Feature
Probe connector: 1
10.1 ' High-Resolution LCD screenscreen
Gray scale: 256
Display mode: B, B / B, 4B, B / M, M
Probe frequency: 2.5MHz -10.0MHz (Depends on the probe type)
2 USB Port(Can be upgrade with U disk)
1 mini 2.0USB Port and 1 video output
---------------------------------------------------------------------------------------------------------------------------------------------

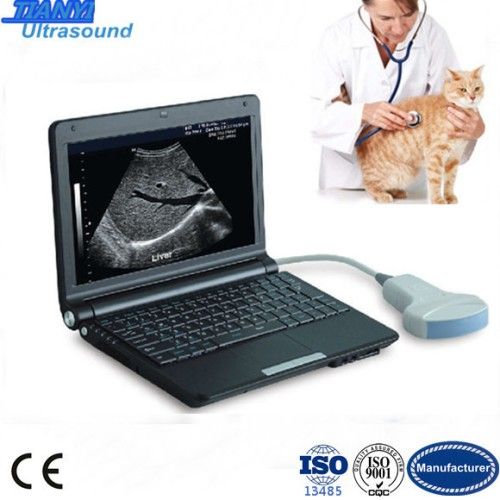

TY-6858A-1 is a small medical laptop ultasound equipment with high resolution LCD screen and only weights around 2 KGs(with one probe), also it is with li-battery can continuous working for 2 hours which is very convenient for outdoor diagnosis, as well as for veterinary uses.
----------------------------------------------------------------------------------------------------------------------------------------------
Digital Veterinary laptop ultrasound with LCD display Main Functions
Measuring functions: Distance, area, circumference, volume, heart rate, pregnant week,
Fetall weights, etc.
Lateral resolution: ≤ 3mm(depth≤ 80mm) ≤ 4mm(80mmdepth≤ 130mm)th≤ 130mm)mm)th≤ 130mm)
Longitudinal resolution: ≤ 2mm(depth≤ 80mm) ≤ 3mm(80mmdepth≤ 130mm)th≤ 130mm)mm)th≤ 130mm)
Detectable depth: ≥ 160mm Blind area: ≤ 5mmle; 5mmle; 5mm
Geometrical position distortion: Lateral≤ 15 Longitudinal≤ 10≤ 10 10≤ 10
Depth scanning: ≥ 170mm70mm70mm
Body markers: A variety of body markers (more than 50 sorts)')""
Display information: Date, time, age, sex, patient ID and hospital information, gain, focusing, comments, scroll, zoom setting
Zoom: × 0.8× 0.9× 1.0× 1.1× 1.2× 1.3× 1.4× 1.5; 1.1× 1.2× 1.3× 1.4× 1.5.3× 1.4× 1.5; 1.1× 1.2× 1.3× 1.4× 1.5
Probe frequency conversion: (2.5-3.5-4.0-5.0MHZ) electronic convex array,
TGC adjustment: 3 TGC adjustments
Cine loop: 192 frames
Image processing: Up/down, left/right, black/white
Pre-set: Time, hospital name, fetal weight formula, image format, pseudo-color select, ect.
Storage: Built-in memory, storage via USB disk, saved image can be recalled for re-analysis. (1024 permanent storage)
---------------------------------------------------------------------------------------------------------------------------------------
Reasons for choosing us
-Manufacturer: Real manufactuer in China, get supplied from our factory directly.
-Your professional supplier: Been in the field of ultrasound develope and manufacturing since 1998.
-Compective price and stable performance: We're dedicated to the production and r&s of ultrasonic imaging system.ystem.stem.
