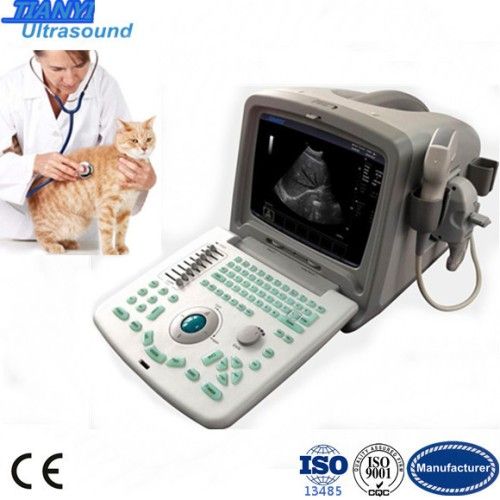

Mobile Digital Portable Ultrasound Scanner for Veterinary
移动数字便携式超声波扫描仪
| 型号。 | TY-6858a-1 |
| 类型 | 超声波扫描仪 |
| 组 | 人与兽医 |
| 医疗器械注册/记录号 | 20142231167 |
| 颜色 | 白色，灰色，灰色和白色 |
| 规范 | ce，iso9001，iso13485 |
| HS编码 | 90181210 |
| 分类 | 成像诊断设备 |
| 证明 | ce，sgs，iso13485 |
| 医疗器械监管类型 | 类型2 |
| 尺寸 | 10'MonitorMonitor |
| 商标 | 天一/ OEM |
| 起源 | 中国 |
手机数码便携式超声波扫描仪为兽医主要特点
图像模式：B，B / B，B / M，M，4B
2.最大显示深度：240mm
3.分辨率：横向2mm，纵向1mm
4.显示器：10'黑白SVGA逐行扫描显示。
灰度：256
6.测量功能：距离，面积，周长，体积，椭圆，心率，孕龄，胎儿出生体重，预计分娩日期的计算包
7.倍率：×1.0，×1.2，×1.5，×2.0×1.5，×2.0 × 2.0 × 1.5, × 2.0
8.深度升级：放大升级
身体标记：各种身体标记
10.显示信息：日期，时间，医疗记录号，放大倍数，测量值，身体标签，字符笔记，帧相关系数，扫描深度，探针类型组合，中英文转换，全屏字符编辑等等
TGC调整：8TGC调整
电影循环：256帧
图像处理：上/下，左/右，黑/白，帧相关，γ校正rection
14.伪色功能：VGA，PAL-D视频输出端子
15.探头连接器：2，可连接多个探头
移动数字便携式超声波扫描仪用于兽医主要功能
应用由计算机和数字扫描转换器（DSC）控制的便携式超声波扫描仪，使用可变孔径，多级动态聚焦，具有低噪声前置放大器的动态宽带，对数压缩，TGC控制，动态滤波，边缘增强，帧相关技术等。图像清晰，稳定，分辨率高。
逐行扫描输出，无闪烁，图像清晰细腻，10'黑白VGA显示，高清晰度。
2.便携式结构，精致，精致;使用轨迹球和触摸屏键盘结构组合，符合人体工程学原理，高效，方便灵活。
3.利用当前领先的超声波技术在宽带技术领域，提高灵敏度和穿透能力，最大可能性，确保高质量的二维图像。
4.动态聚焦系统，动态频率扫描，高密度多层变频探头。
5.使用数字图像处理，8种伪色，一组黑白图像，提高诊断准确率。
6.图像观察的灵活处理方法;在同一屏幕中显示多个静态图像和动态图像。
7.碎石定位功能
8.使用最新的PLD和VGA视频输出设备，可以连接外部大屏幕显示器，彩色显示器，录像机，视频图像打印机等设备。
9.采用触摸式键盘跟踪球，高效，方便灵活。
常见问题〜
保修期多久？
12个月后，你得到的产品。
如何购买？
向我们提供有关形式发票的完整信息。
按照T / T或其他方式按照我们的PI支付。
收货后我们将汇款到您，并在1-2天内向您提供DHL或其他快递的追踪号码。
我们将继续跟踪您的包裹，直到您成功完成。
如何获得售后服务？
如果您在使用过程中遇到任何问题或问题，请随时与我们联系。我们将尽快在24小时内为您提供解决方案。
图像模式：B，B / B，B / M，M，4B
2.最大显示深度：240mm
3.分辨率：横向2mm，纵向1mm
4.显示器：10'黑白SVGA逐行扫描显示。
灰度：256
6.测量功能：距离，面积，周长，体积，椭圆，心率，孕龄，胎儿出生体重，预计分娩日期的计算包
7.倍率：×1.0，×1.2，×1.5，×2.0×1.5，×2.0 × 2.0 × 1.5, × 2.0
8.深度升级：放大升级
身体标记：各种身体标记
10.显示信息：日期，时间，医疗记录号，放大倍数，测量值，身体标签，字符笔记，帧相关系数，扫描深度，探针类型组合，中英文转换，全屏字符编辑等等
TGC调整：8TGC调整
电影循环：256帧
图像处理：上/下，左/右，黑/白，帧相关，γ校正rection
14.伪色功能：VGA，PAL-D视频输出端子
15.探头连接器：2，可连接多个探头
移动数字便携式超声波扫描仪用于兽医主要功能
应用由计算机和数字扫描转换器（DSC）控制的便携式超声波扫描仪，使用可变孔径，多级动态聚焦，具有低噪声前置放大器的动态宽带，对数压缩，TGC控制，动态滤波，边缘增强，帧相关技术等。图像清晰，稳定，分辨率高。
逐行扫描输出，无闪烁，图像清晰细腻，10'黑白VGA显示，高清晰度。
2.便携式结构，精致，精致;使用轨迹球和触摸屏键盘结构组合，符合人体工程学原理，高效，方便灵活。
3.利用当前领先的超声波技术在宽带技术领域，提高灵敏度和穿透能力，最大可能性，确保高质量的二维图像。
4.动态聚焦系统，动态频率扫描，高密度多层变频探头。
5.使用数字图像处理，8种伪色，一组黑白图像，提高诊断准确率。
6.图像观察的灵活处理方法;在同一屏幕中显示多个静态图像和动态图像。
7.碎石定位功能
8.使用最新的PLD和VGA视频输出设备，可以连接外部大屏幕显示器，彩色显示器，录像机，视频图像打印机等设备。
9.采用触摸式键盘跟踪球，高效，方便灵活。
常见问题〜
保修期多久？
12个月后，你得到的产品。
如何购买？
向我们提供有关形式发票的完整信息。
按照T / T或其他方式按照我们的PI支付。
收货后我们将汇款到您，并在1-2天内向您提供DHL或其他快递的追踪号码。
我们将继续跟踪您的包裹，直到您成功完成。
如何获得售后服务？
如果您在使用过程中遇到任何问题或问题，请随时与我们联系。我们将尽快在24小时内为您提供解决方案。
标准配置： | 主机等配件 3.5MHz凸型探头 |
| 可选探头： | 6.5mhz经阴道探针， 7.5mhz高频线性探头 |
| 总重量： | 12公斤 |
| 交货时间： | 收款后1-2天内 |
| 保证： | 12个月 |
| Model NO. | TY-6858A-1 |
| Type | Ultrasound Scanner |
| Group | Human and Vet |
| Medical Devices Reg./Record No. | 20142231167 |
| Color | White,Grey,Grey and White |
| Specification | CE, ISO9001, ISO13485 |
| HS Code | 90181210 |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Size | 10'MonitorMonitor |
| Trademark | Tianyi/OEM |
| Origin | China |
Mobile digital portable ultrasound scanner for veterinary Main Features
1. Image mode: B, B/B, B/M, M, 4B
2. Max Display depth: 240mm
3. Resolution Power: Lateral 2mm, Longitudinal 1mm
4. Monitor: 10'black and white SVGA progressive scanning display.splay.
5. Gray scale: 256
6. Measureing functions: Distance, area, perimeter, volume, ellipse, heart rate, gestational age, fetal birth weight, computing packages for expected date of childbirth
7. Magnification: × 1.0, × 1.2, × 1.5, × 2.0 × 1.5, × 2.0 × 2.0 × 1.5, × 2.0
8. Depth upgrade: Enlarge upgrading
9. Body markers: A variety of body markers
10. Display information: Date, time, medical records number, magnification, measurement value, the body tag, character notes, coefficient of frame correlation, scanning depth, portfolio of probe type, conversion in both English and Chinese, full-screen character edit etc.
11. TGC adjustment: 8TGC adjustments
12. Cine loop: 256 frames
13. Image processing: Up/down, left/right, black/white, frame correlation, γ Correctionrectionrection
14. Pseudo-color function: VGA, PAL-D video output terminal
15. Probe connectors: 2, multiple probes connectable
Mobile digital portable ultrasound scanner for veterinary Main functions
Application of portablet ultrasound scanner controlled by computers and digital scan converters(DSC), the use of variable apertures, multi-stage dynamic focus, dynamic broadband with low-noise pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement, frame correlation technologies etc. The image is clear, stable, and of high-resolution.
1. Progressive scanning output without flickering, delicate and clear images, 10 ' black-and-white VGA display with high definition.nition.
2. Portable type structure, exquisite, refined; Use the trackball and the touch screen keyboard structure consisting with the ergonomic principles, efficient, convenient and flexible.
3. Use current leading ultrasound technology in the area of broadband technologies, increase the sensitivity and the ability of penetration with largest possibility, ensure high-quality two-dimensional image.
4. Dynamic focus system, dynamic frequency scanning, multi-layer frequency conversion probes with high density.
5. Use digital image processing, 8 ways for pseudo-color, a set of black-and-white image, improve the accuracy rate of diagnosis.
6. Flexible processing approaches to image observation; Display multiple static images and dynamic images in the same screen.
7. Positioning function for lithotripsy
8. Use the latest PLD and VGA video output devices, can be connected with external large-screen monitors, color displays, video recorders, video image printers and other equipments.
9. Adopt touch-operated keyboard and track ball, efficient, convenient and flexible.
FAQ~
How long is the Warranty?
12 months since you get the product.
How to make the purchase?
Provide us your full information for Proforma Invoice.
Pay by T/T or other way according to the amount of our PI.
We will make the shipment to you upon payment collection and provide you tracking number of DHL or other express in 1-2 days.
We will keep tracking your parcel till you get it successfully.
How to get aftersales service?
If any question or problem during your using, please feel free to contact us. We will provide you solutions as soon as we can no later than 24 hours.
1. Image mode: B, B/B, B/M, M, 4B
2. Max Display depth: 240mm
3. Resolution Power: Lateral 2mm, Longitudinal 1mm
4. Monitor: 10'black and white SVGA progressive scanning display.splay.
5. Gray scale: 256
6. Measureing functions: Distance, area, perimeter, volume, ellipse, heart rate, gestational age, fetal birth weight, computing packages for expected date of childbirth
7. Magnification: × 1.0, × 1.2, × 1.5, × 2.0 × 1.5, × 2.0 × 2.0 × 1.5, × 2.0
8. Depth upgrade: Enlarge upgrading
9. Body markers: A variety of body markers
10. Display information: Date, time, medical records number, magnification, measurement value, the body tag, character notes, coefficient of frame correlation, scanning depth, portfolio of probe type, conversion in both English and Chinese, full-screen character edit etc.
11. TGC adjustment: 8TGC adjustments
12. Cine loop: 256 frames
13. Image processing: Up/down, left/right, black/white, frame correlation, γ Correctionrectionrection
14. Pseudo-color function: VGA, PAL-D video output terminal
15. Probe connectors: 2, multiple probes connectable
Mobile digital portable ultrasound scanner for veterinary Main functions
Application of portablet ultrasound scanner controlled by computers and digital scan converters(DSC), the use of variable apertures, multi-stage dynamic focus, dynamic broadband with low-noise pre-amplifier, log compression, TGC control, dynamic filtering, edge enhancement, frame correlation technologies etc. The image is clear, stable, and of high-resolution.
1. Progressive scanning output without flickering, delicate and clear images, 10 ' black-and-white VGA display with high definition.nition.
2. Portable type structure, exquisite, refined; Use the trackball and the touch screen keyboard structure consisting with the ergonomic principles, efficient, convenient and flexible.
3. Use current leading ultrasound technology in the area of broadband technologies, increase the sensitivity and the ability of penetration with largest possibility, ensure high-quality two-dimensional image.
4. Dynamic focus system, dynamic frequency scanning, multi-layer frequency conversion probes with high density.
5. Use digital image processing, 8 ways for pseudo-color, a set of black-and-white image, improve the accuracy rate of diagnosis.
6. Flexible processing approaches to image observation; Display multiple static images and dynamic images in the same screen.
7. Positioning function for lithotripsy
8. Use the latest PLD and VGA video output devices, can be connected with external large-screen monitors, color displays, video recorders, video image printers and other equipments.
9. Adopt touch-operated keyboard and track ball, efficient, convenient and flexible.
FAQ~
How long is the Warranty?
12 months since you get the product.
How to make the purchase?
Provide us your full information for Proforma Invoice.
Pay by T/T or other way according to the amount of our PI.
We will make the shipment to you upon payment collection and provide you tracking number of DHL or other express in 1-2 days.
We will keep tracking your parcel till you get it successfully.
How to get aftersales service?
If any question or problem during your using, please feel free to contact us. We will provide you solutions as soon as we can no later than 24 hours.
Standard configuration: | main unit and other accessories 3.5MHz convex probe |
| optional probe: | 6.5mhz transvaginal probe, 7.5mhz high frequency linear probe |
| Gross Weight: | 12KG |
| Delivery Time: | within 1-2 days upon payment collection |
| Warranty: | 12months |
