Ophthalmic Ultrasound a/B Scanner
眼科超声a / B扫描仪
议价
加入意向| 型号。 | TY-OU中-1 |
| 类型 | 数字成像系统 |
| 组 | 中老年 |
| 医疗器械注册/记录号 | 20142231167 |
| 商标 | 天一/ OEM |
| 起源 | 中国 |
| 分类 | 成像诊断设备 |
| 证明 | ce，sgs，iso13485 |
| 医疗器械监管类型 | 类型2 |
| 尺寸 | 15寸液晶电视 |
| 规范 | iso9001，iso13485 |
| HS编码 | 90181210 |
TY-OUS-1眼科超声A / B扫描仪具有正常的玻璃体增强，视网膜观察模式，主要用于诊断眼内疾病，显示感染焦点的位置，形状范围以及与周围组织的关系。
可诊断玻璃体不透明，视网膜脱离，眼底肿瘤等眼部疾病。扫描用于测量前房深度，镜片厚度，轴向长度，计算植入物IOL的屈光度。
B扫描：
频率：10MHz / 20MHz（可选），磁驱动，无噪声
扫描模式：扇区扫描
放大倍数：多次连续放大，实时放大
分辨率：横向≤0.3mm;垂直≤0.2mme; 0.2mme;0.2mm
几何位置精度：横向≤10％;垂直≤5％l≤5％;5%l≤5%
深度：60毫米
增加玻璃体和视网膜的部分
探头增益：30dB-105dB
扫描角度：53°deg;°
灰度：256
假颜色：多色。十月
测量类型：多组距离，周长和面积
图像后处理：多重曲线处理，伪色处理曲线
电影：100张影片评论，AVI JPG格式图像输出
扫描：
频率：10MHz，带LED
深度：40mm
精度：±0.05 mm; 0.05 mm;0.05 mm
测量：前房深度，镜片厚度，玻璃体长度，总长度和平均值
眼睛模式：Phakic / Aphakic /密集/各种IOL
iol公式：srk-ii，srk-t，hoffer-q，holladay，binkhorst-ii，haigis
统计。计算：平均和标准差
商店：10每个眼睛扫描结果
其他：
显示模式：B，B + B，B + A，A
提示：预设关键字
案例搜索：多关键字
屏幕：15寸液晶
内置电池：可使用4小时
用户定义的报告模板信用担保贷款不良
可诊断玻璃体不透明，视网膜脱离，眼底肿瘤等眼部疾病。扫描用于测量前房深度，镜片厚度，轴向长度，计算植入物IOL的屈光度。
B扫描：
频率：10MHz / 20MHz（可选），磁驱动，无噪声
扫描模式：扇区扫描
放大倍数：多次连续放大，实时放大
分辨率：横向≤0.3mm;垂直≤0.2mme; 0.2mme;0.2mm
几何位置精度：横向≤10％;垂直≤5％l≤5％;5%l≤5%
深度：60毫米
增加玻璃体和视网膜的部分
探头增益：30dB-105dB
扫描角度：53°deg;°
灰度：256
假颜色：多色。十月
测量类型：多组距离，周长和面积
图像后处理：多重曲线处理，伪色处理曲线
电影：100张影片评论，AVI JPG格式图像输出
扫描：
频率：10MHz，带LED
深度：40mm
精度：±0.05 mm; 0.05 mm;0.05 mm
测量：前房深度，镜片厚度，玻璃体长度，总长度和平均值
眼睛模式：Phakic / Aphakic /密集/各种IOL
iol公式：srk-ii，srk-t，hoffer-q，holladay，binkhorst-ii，haigis
统计。计算：平均和标准差
商店：10每个眼睛扫描结果
其他：
显示模式：B，B + B，B + A，A
提示：预设关键字
案例搜索：多关键字
屏幕：15寸液晶
内置电池：可使用4小时
用户定义的报告模板信用担保贷款不良
| Model NO. | TY-OUS-1 |
| Type | Digital Imaging System |
| Group | Middle-aged and Old |
| Medical Devices Reg./Record No. | 20142231167 |
| Trademark | Tianyi/OEM |
| Origin | China |
| Classification | Imaging Diagnostic Equipment |
| Certification | CE, SGS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Size | 15 Inch LCD |
| Specification | ISO9001, ISO13485 |
| HS Code | 90181210 |

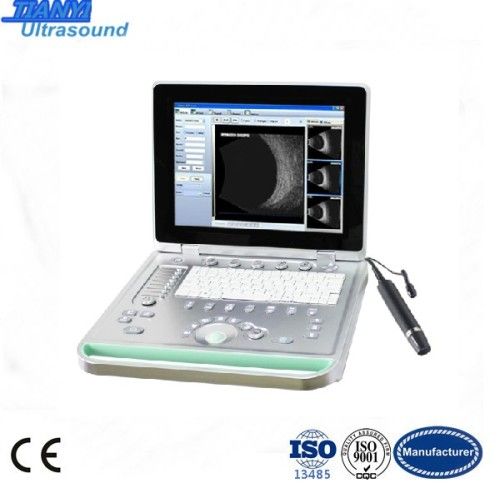

TY-OUS-1 Ophthalmic ultrasound A/B Scanner with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue.
Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
B scan:
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify:Multi continuous magnification,Real-Time magnification
Resolution: Lateral ≤0.3mm;Vertical≤0.2mme;0.2mme;0.2mm
Geometry position precision: Lateral ≤10%;Vertical≤5%l≤5%;5%l≤5%
Depth:60mm
Enhance the part of vitreous body and retina
Gain of probe:30dB-105dB
Scanning Angle:53°°deg;°
Gray Scale: 256
False Color: Multi colors. OCT
measurement type: multigroup distances, perimeters and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Movies: 100 images movie review, AVI JPG format image output
A scan:
Frequency:10MHz, with LED
Depth: 40mm
Precision:±0.05 mm;0.05 mm;0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others:
Display Mode :B,B+B,B+A,A
Hint: preset keyword
Case Search:Multi-keywords
Screen: 15 inch LCD
Built-in battery: can use 4 hours
User-defined report template poor credit secured loans
Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
B scan:
Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify:Multi continuous magnification,Real-Time magnification
Resolution: Lateral ≤0.3mm;Vertical≤0.2mme;0.2mme;0.2mm
Geometry position precision: Lateral ≤10%;Vertical≤5%l≤5%;5%l≤5%
Depth:60mm
Enhance the part of vitreous body and retina
Gain of probe:30dB-105dB
Scanning Angle:53°°deg;°
Gray Scale: 256
False Color: Multi colors. OCT
measurement type: multigroup distances, perimeters and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Movies: 100 images movie review, AVI JPG format image output
A scan:
Frequency:10MHz, with LED
Depth: 40mm
Precision:±0.05 mm;0.05 mm;0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others:
Display Mode :B,B+B,B+A,A
Hint: preset keyword
Case Search:Multi-keywords
Screen: 15 inch LCD
Built-in battery: can use 4 hours
User-defined report template poor credit secured loans
