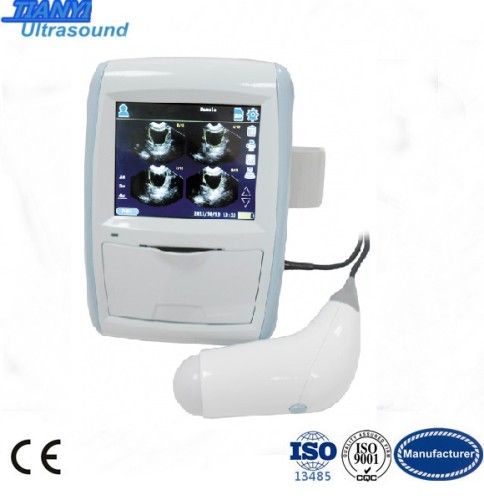

Wuhan Tianyi Manufacturer Ultrasound Bladder Scanner
武汉天一制造商超声膀胱扫描仪
| 型号。 | 膀胱扫描仪 |
| 类型 | 超声波扫描仪 |
| 组 | 婴儿和儿童 |
| 医疗器械注册/记录号 | 20142231167 |
| 解析度 | 640 X480 |
| 尺寸 | 200X160X140mm |
| 规范 | iso9001，iso13485 |
| HS编码 | 90181210 |
| 分类 | 诊断和监测设备的生理功能 |
| 证明 | ce，sgs，iso13485 |
| 医疗器械监管类型 | 类型2 |
| 屏幕 | 5.6英寸液晶触摸屏 |
| 电池 | 是 |
| 商标 | 天一/ OEM |
| 起源 | 中国 |
WellEcho开发的超声膀胱扫描仪是多年研发的成果。该产品采用与传统技术完全不同的新一代成像和探测技术，易于操作，测量精度极高。
扫描结果更准确
不同气囊的兼容性好
更容易操作和使用
膀胱壁与空气的识别率高
扫描过程中的实时成像
10ml-2000ml大测量范围
技术规格：
1.打印：内置热敏打印机;
探头保持装置：带支架和探头线绕架;
3.接口：一个探头接口，一个SD卡插槽，一个电源输入插孔;
4.电池：内置24wh电池，连续工作时间> 4小时，
可连接外部12V / 2A电池，
内置电池充电时间为3小时;
5.输入电源：100〜260V交流电源为电源适配器充电，适配器为扫描仪供电12V DC;
尺寸：200mm（高）×160mm（宽）×140mm（厚）。 （厚度）。 (thickness).
产品包装：
扫描结果更准确
不同气囊的兼容性好
更容易操作和使用
膀胱壁与空气的识别率高
扫描过程中的实时成像
10ml-2000ml大测量范围
技术规格：
| 超声波探头 | 3D扫描，2.6MHz宽带频率探头; |
| 屏幕 | 5.6寸液晶触摸屏640×480分辨率;小心;lution; |
| 测量范围 | 10ml〜2000ml; |
| 自动测量误差 | <15% |
| 扫描时间 | <2 secondsonds |
| 体积测量时间 | <2 secondsonds |
| 扫描图像显示框 | 4帧/秒 |
| 案例存储 | 最大32G |
| SD卡数据存储 | > 40000 |
1.打印：内置热敏打印机;
探头保持装置：带支架和探头线绕架;
3.接口：一个探头接口，一个SD卡插槽，一个电源输入插孔;
4.电池：内置24wh电池，连续工作时间> 4小时，
可连接外部12V / 2A电池，
内置电池充电时间为3小时;
5.输入电源：100〜260V交流电源为电源适配器充电，适配器为扫描仪供电12V DC;
尺寸：200mm（高）×160mm（宽）×140mm（厚）。 （厚度）。 (thickness).
产品包装：
| 标准包装 | 一个主要单位 一个探针 一个电源适配器 一个内部电池 一个探针架 一个背包 一个SD存储卡 |
| 可选附件 | 手推车 额外的电池 额外的探针 额外的SD存储卡 |
| Model NO. | Bladder Scanner |
| Type | Ultrasound Scanner |
| Group | Infants and Young Children |
| Medical Devices Reg./Record No. | 20142231167 |
| Resolution | 640 X480 |
| Size | 200X160X140mm |
| Specification | ISO9001, ISO13485 |
| HS Code | 90181210 |
| Classification | Physiological Functions of Diagnosis and Monitoring Equipment |
| Certification | CE, SGS, ISO13485 |
| Medical Device Regulatory Type | Type 2 |
| Screen | 5.6-Inch LCD Touch Screen |
| Battery | Yes |
| Trademark | Tianyi/OEM |
| Origin | China |
Ultrasound bladder scanner, developed by WellEcho, is the fruition of years of research and development. The product applies new generation of imaging and probing technology that is completely different from traditional technology and is easy to operate with extremely high measuring accuracy.
scanning results more accurate
good compatibility for different bladders
easier to operate and use
High recognition rate for the bladder wall with air
Real-time imaging during the scanning process
10ml-2000ml large measurement range
Technical specification:
1. Printing: Built-in thermal printer;
2. Probe holding device: with holder and probe wire winding frame;
3. Interface: one probe interface, one SD card slot, one power input jack;
4. Battery: Built-in 24wh battery, continuous working time﹥ 4 hours,urs,
can be connected to an external 12V/2A battery,
built-in battery charging time is 3 hours;
5. Input Power: 100 ~ 260V AC power to charge power adapter, adapter supplies 12V DC to the scanner;
6. Dimension: 200mm (height) × 160mm (width) × 140mm (thickness). (thickness). (thickness).
Product Package:
scanning results more accurate
good compatibility for different bladders
easier to operate and use
High recognition rate for the bladder wall with air
Real-time imaging during the scanning process
10ml-2000ml large measurement range
Technical specification:
| Ultrasonic probe | 3D scan, 2.6MHz broadband frequency probe; |
| Screen | 5.6-inch LCD touch screen 640 × 480 resolution;olution;lution; |
| Measuring range | 10ml ~ 2000ml; |
| Automatic measurement error | <15% |
| Scan time | <2 secondsonds |
| Volume measurement time | <2 secondsonds |
| Scanned image display frame | 4 frames / seconds |
| Case Storage | Maximum 32G |
| SD card data storage | > 40000 |
1. Printing: Built-in thermal printer;
2. Probe holding device: with holder and probe wire winding frame;
3. Interface: one probe interface, one SD card slot, one power input jack;
4. Battery: Built-in 24wh battery, continuous working time﹥ 4 hours,urs,
can be connected to an external 12V/2A battery,
built-in battery charging time is 3 hours;
5. Input Power: 100 ~ 260V AC power to charge power adapter, adapter supplies 12V DC to the scanner;
6. Dimension: 200mm (height) × 160mm (width) × 140mm (thickness). (thickness). (thickness).
Product Package:
| Standard Package | one main unit one probe one power adapter one internal battery one probe holder one backpack one SD memory card |
| Optional Accessory | trolley extra battery extra probe extra SD memory card |
