1080P HDD 4 Camera Security System NVR Network Video Recorder
1080P HDD 4相机安全系统NVR网络录像机
议价
加入意向| 型号。 | EV-4chipck2 |
| HDMI格式 | 1080P |
| 传感器尺寸 | 1/4英寸 |
| 类型 | 录影机 |
| 特征 | 防水/防水 |
| 证明 | ce，fcc，rohs |
| 有效距离 | 10-30m |
| 遥控 | 无遥控器 |
| 传感器 | CMOS |
1080P HDD 4相机安全系统NVR网络录像机
产品概述：
具有4x HD-IP 720P相机的1x4通道1080P NVR。 1/4“1.0百万像素CMOS传感器。 3.6mm固定焦距百万像素镜头，具有IR-CUT，ONVIF协议，4 CH同时播放，内置P2P服务。支持Iphone，Windows Mobile，Symbian，Android，黑莓平台等100多种手机。
相机规格： | |
图像传感器 | |
| 传感器 | CMOS |
| 传感器尺寸 | 1/4英寸彩色CMOS传感器 |
| 解析度 | 1.0百万像素 |
| 镜头（mm） | 3.6 |
| 最小照度（Lux） | 0 Lux |
| 视频图像/音频设置 | |
| 视频帧率（FPS） | NTSC：30fps的（1280×720）; PAL：25fps的（1280×720） |
| 视频调整 | 自动背光补偿，自动白平衡，对比度可调， 亮度可调 |
通信与Interfacerfacerface | |
| 网络接口 | Wi-Fi / 802.11 / b / g，RJ-45 10 / 100Mb自适应以太网插槽 |
| 支持的协议 | dns，ftp，pppoe，upnp，ddns，http，smtp，dhcp，tcp / ip |
| 无线安全 | wpa2，wpa，wep |
| IP模式 | 静态IP地址，动态IP地址 |
| 物理环境 | |
| 环境 | 户外/室内 |
| 电源（V） | 12V |
| 工作温度（℃）rdm; C）rdm;C) | -10°〜50°C（14°〜122°F）4°〜122°f）2°F)4°~122°F) |
| 系统需求 | |
| 支持的移动系统 | Android，iPhone操作系统 |
| 支持的操作系统 | Microsoft Windows 7，Microsoft Windows Vista，Microsoft Windows XP，Microsoft Windows 2000，Microsoft Windows ME，Microsoft Windows 98 |
支持浏览器 | Google Chrome，Firefox，Safari，IE，其他标准浏览器 |
| 附加功能 | |
| 特征 | 即插即用，远程访问，移动侦测，日夜，防水 |
| 红外夜视距离（m） | 30 |
| 语言 | 繁体中文，Français，España，Italian，Português，ian，Português，irc;s,ian, Português, 德语，英语 |
NVR技术参数 | |
| 主处理器 | 硅胶3520d |
| 系统资源 | 实况录制，播放，备份，远程视图，移动监控 |
| 控制模式 | 前面板，USB鼠标，红外遥控器，网络 |
| 显示 | 支持：， |
| 视频 | 4ch输入，1ch电视输出，1ch vga输出，1 * hdmi（1080p） |
| 音频 | 4CH输入 |
| 报警 | 是 |
| 记录 | 4 * 960P / 1080P实时 |
| 回放 | 4 * 960P或2 * 1080P实时 |
| 云台 | 是 |
| HDMI | 是 |
| DVD选项 | 没有 |
| 硬盘容量 | SATA接口硬盘* 1 |
| 网络接口 | 1 * RJ45,100Mbps以太网 |
| 升级 | usb磁盘，网络 |
| 备用 | usb磁盘，网络 |
| 用户扩展 | 自己设计启动画面LOGO |
| 电源 | 12V / 2A |
| 工作环境 | -10°〜+ 55°/ 10〜90％RH / 86〜106Kpa86〜106Kpa86~106Kpa |
有竞争力的优势：
中央电视台业界领先，专业的制造商
2.高品质
竞争力合理的价格
最好的售前，售中和售后服务
ce，fcc，rohs通过
| Model NO. | EV-4CHIPCK2 |
| HDMI Format | 1080P |
| Sensor Size | 1/4 Inch |
| Type | Video Camera |
| Feature | Waterproof / Weatherproof |
| Certification | CE, FCC, RoHS |
| Effective Distance | 10-30m |
| Remote Control | Without Remote Control |
| Sensor | CMOS |

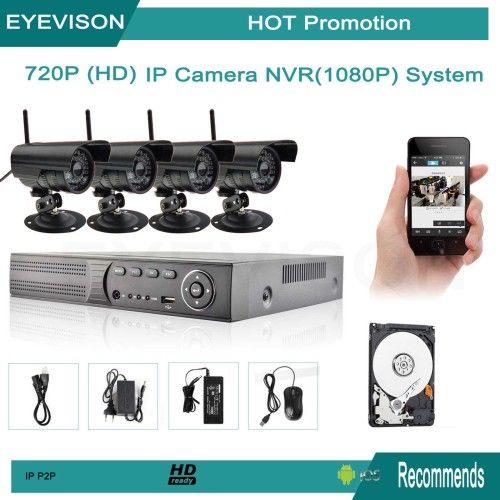

1080P HDD 4 Camera Security System NVR Network Video Recorder
Product Overview :
1x4 Channel 1080P NVR with 4x HD-IP 720P Camera. 1/4' 1.0 Megapixel CMOS Sensor. 3.6mm Fixed focus Megapixel Lens with IR-CUT, ONVIF agreement, 4 CH simultaneous playback, Built-P2P service. Support Iphone, Windows Mobile, Symbian, Android, blackberry platforms, more than 100 types of mobile phones.hones.
Camera Specifications : | |
Image Sensor | |
| Sensor | CMOS |
| Sensor Size | 1/4 Inch Color CMOS Sensor |
| Resolution | 1.0 Megapixels |
| Lens (mm) | 3.6 |
| Minimum Illumination (Lux) | 0 Lux |
| Video Image/Audio Setting | |
| Video Frame Rate (FPS) | NTSC:30fps(1280x720); PAL:25fps(1280x720) |
| Video Adjustment | Auto Backlight Compensation, Auto White Balance, Contrast Adjustable, Brightness Adjustable |
Communication&Interfacerfacerface | |
| Network Interface | Wi-Fi/802.11/b/g, RJ-45 10/100Mb self-adaptable Ethernet slot |
| Supported Protocol | DNS, FTP, PPPoE, UPNP, DDNS, HTTP, SMTP, DHCP, TCP/IP |
| Wireless Security | WPA2, WPA, WEP |
| IP Mode | Static IP address, Dynamic IP address |
| Physical/Environment | |
| Environment | Outdoor/indoor |
| Power Supply (V) | 12V |
| Operate Temperature (ºC)rdm;C)rdm;C) | -10°~50°C (14°~122°F)4°~122°F)2°F)4°~122°F) |
| System Requirment | |
| Supported Mobile Systems | Android, iPhone OS |
| Supported Operating Systems | Microsoft Windows 7, Microsoft Windows Vista, Microsoft Windows XP,Microsoft Windows 2000, Microsoft Windows ME, Microsoft Windows 98 |
Supported Browers | Google Chrome, Firefox, Safari, IE, Other Standard Browser |
| Additional Features | |
| Features | Plug and play, Remote Access, Motion Detection, Day Night, Waterproof |
| IR Night Vision Distance (m) | 30 |
| Language | Traditional Chinese, Français, España, Italian, Português,ian, Português,irc;s,ian, Português, Deutsch,English |
NVR Technical Parameters | |
| Main Processor | HISILICON 3520D |
| System Resource | Live recording, Playback, Backup, Remote view, Mobile monitoring |
| Control Mode | Front panel, USB mouse, IR remote control, Network |
| Display | Support:, |
| Video | 4CH Input,1CH TV Output,1CH VGA Output , 1*HDMI(1080P) |
| Audio | 4CH Input |
| Alarm | YES |
| Recording | 4*960P/1080P real time |
| Play back | 4*960P or 2*1080P real time |
| PTZ | YES |
| HDMI | YES |
| DVD Option | NO |
| HDD Capacity | SATA Interface HDD*1 |
| Network Interface | 1*RJ45,100Mbps Ethernet |
| Upgrade | USB DISK, Network |
| Backup | USB DISK, Network |
| User Extend | Design boot screen LOGO by yourself |
| Power supply | 12V/2A |
| Working environment | -10°~+55°/10~90%RH/86~106Kpa86~106Kpa86~106Kpa |
Competitive advantages:
1. Leading and professional manufacturer in CCTV industry
2. High quality
3. Competitive and reasonable price
4. Best pre-sale,sale and after-sale service
6. CE,FCC,RoHS passed
