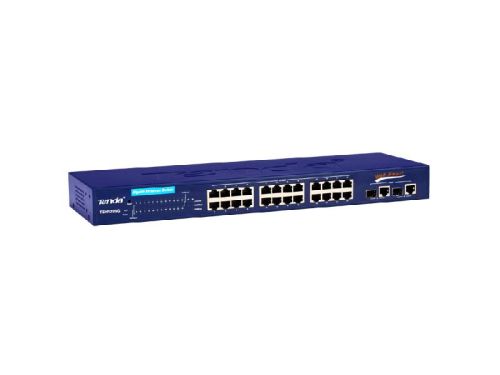

Tenda TEH1226G 24-Port Smart Ethernet Switch | 24-Port 10\100 +2-Port Gigabit Smart Switch
腾达TEH1226G 24端口智能以太网交换机| 24个10/100端口+ 2端口千兆智能交换机
议价
加入意向| 硬件特性 | ||
| 标准 | IEEE 802.3; IEEE 802.3u标准; IEEE 802.3z支持; IEEE 802.3ab标准; IEEE 802.3X; IEEE 802.1Q; IEEE 802.1p优先级; SNMP | |
| 接口 | 24 RJ45端口 2 * 10/100 / 1000Mbps的RJ45端口/ 2个SFP光纤端口 | |
| 速度 | 10 / 100Mbps的 10/100 / 1000Mbps的 1000Mbps的 | |
| LED | FCC / CE / RoHS指令 | |
| 功率 | 100V-240V〜0.6A 50 / 60Hz的 5V / 6A | |
| 外形尺寸（长宽高;毫米） | 440*209*44 | |
| 一般特征 | ||
| 转发方案 | 商店 - ＆ - 向前 | |
| MAC地址表 | 4K | |
| MAC地址学习 | 是 | |
| 背板带宽 | 8.8Gbps | |
| 软件特点 | ||
| 安全 | 广播风暴控制 | |
| VLAN | POR的VLAN 802.1Q VLAN | |
| 服务质量 | 调度：FIFO; SP和WRR QOS模式：基于端口的; 802.1P，IP TOS / DSCP | |
| DHCP | DHCP客户端 | |
| 管理 | SNMP V1; 基于网络的 | |
| 其他 | ||
| 工作环境 | 工作温度 | 0℃〜45℃ |
| 储存温度 | -30℃〜70℃ | |
| 工作湿度 | 10％〜90％RH非冷凝 | |
| 存储湿度 | 10％〜90％RH非冷凝 | |
| 最低系统要求 | 电脑： CPU为733MHz或更高 64MB内存或更高 Internet Explorer 5.5或火狐1.0以上 网络适配器 的Windows 98SE / ME操作系统或更高版本 | |
| 包装内容 | 一个TEH1226G 24 + 2G快速以太网交换机（智能） 一根电源线 一个用户指南 2 L型架用螺丝 4靠垫 | |
| 证书 | FCC / CE / RoHS指令 | |
| Hardware Features | ||
| Standards | IEEE 802.3; IEEE 802.3u; IEEE 802.3z; IEEE 802.3ab; IEEE 802.3x; IEEE 802.1Q; IEEE 802.1p; SNMP | |
| Interface | 24 RJ45 Ports 2*10/100/1000Mbps RJ45 ports/ 2 SFP Fiber Ports | |
| Speed | 10/100Mbps 10/100/1000Mbps 1000Mbps | |
| LED | FCC/ CE/ RoHS | |
| Power | 100V-240V ~0.6A 50/60Hz 5V/ 6A | |
| Dimensions (LxWxH; mm) | 440*209*44 | |
| General Features | ||
| Forwarding Scheme | Store-&-forward | |
| MAC Address Table | 4K | |
| MAC Address Learning | Yes | |
| Backplane Bandwidth | 8.8Gbps | |
| Software Features | ||
| Security | Broadcast Storm Control | |
| VLAN | Por-based VLAN 802.1Q VLAN | |
| QoS | Scheduling: FIFO; SP and WRR QOS mode: Port-based; 802.1P, IP TOS/ DSCP | |
| DHCP | DHCP client | |
| Management | SNMP V1; Web-based | |
| Others | ||
| Operating Enviroment | Operating Temperature | 0oC~45oC |
| Storage Temperature | -30oC~70oC | |
| Operating Humidity | 10% ~ 90% RH non-condensing | |
| Storage Humidity | 10% ~ 90% RH non-condensing | |
| Minimum System Requirement | Computer with: 733MHz CPU or higher 64MB Memory or higher Internet Explorer 5.5 or Firefox 1.0 Above Network Adapter Windows 98SE/ ME OS or higher | |
| Package Contents | One TEH1226G 24+2G Fast Ethernet Switch (Intelligent) One Power Cord One User Guide 2 L-Shaped racks with screws 4 Cushions | |
| Certificates | FCC/ CE/ RoHS | |
