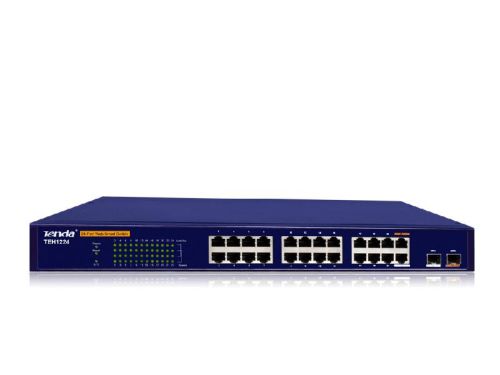

Tenda TEH1224 24-Port WebSmart Ethernet Switch | 24-Port 10\100 Smart Switch
腾达TEH1224 24端口WebSmart以太网交换机| 24个10/100端口智能交换机
议价
加入意向| 硬件特性 | ||
| 标准 | IEEE 802.3; IEEE 802.3u标准; 802.3X | |
| 接口 | 24 RJ-45 | |
| 速度 | 10 / 100Mbps的 | |
| LED | LINK / ACT 1〜24; 功率; 系统 | |
| 功率 | AC100-240V 50 / 60Hz的0.6A; 9V / 1A | |
| 外形尺寸（长宽高;毫米） | 440 * 178 *44毫米 | |
| 一般特征 | ||
| 转发方案 | 商店 - ＆ - 转发 | |
| MAC地址表 | 8K | |
| MAC地址学习 | 自动学习/ -aging | |
| 背板带宽 | 4.8G | |
| 软件特点 | ||
| 安全 | 环路检测和预防; 端口MAC绑定 | |
| 访问控制 | 没有 | |
| VLAN | 端口VLAN：多达24组; QVLAN：多达32组 | |
| STP | STP; RSTP | |
| IGMP | IGMP V1 | |
| 服务质量 | FIFO; 严格优先级队列; WRR | |
| DHCP | DHCP客户端 | |
| 管理 | SNMP V1; 远程登录; 卷筒纸 | |
| 其他 | ||
| 工作环境 | 工作温度 | -10℃~40℃ |
| 储存温度 | -40℃~70℃ | |
| 工作湿度 | 的10％〜90％RH | |
| 存储湿度 | 5％〜90％RH的 | |
| 最低系统要求 | 电脑： 浏览器：Internet Explorer的6.0; Firefox 1.0或更高版本 内存：64MB或更高 已安装的网卡 操作系统：Windows 98SE / ME或更高版本 | |
| 包装内容 | TEH1224 电源线 使用手册 橡胶垫和螺钉 L形架 | |
| 证书 | CE，FCC | |
| Hardware Features | ||
| Standards | IEEE 802.3; IEEE 802.3u; 802.3x | |
| Interface | 24 RJ-45 | |
| Speed | 10/100Mbps | |
| LED | Link/ Act 1~24; Power; SYSTEM | |
| Power | AC100-240V 50/60Hz 0.6A; 9V/ 1A | |
| Dimensions (LxWxH; mm) | 440*178*44mm | |
| General Features | ||
| Forwarding Scheme | Store-&-forwarding | |
| MAC Address Table | 8K | |
| MAC Address Learning | Auto-learning/ -aging | |
| Backplane Bandwidth | 4.8G | |
| Software Features | ||
| Security | Loopback Detection and Prevention; Port-MAC binding | |
| Access Control | No | |
| VLAN | Port VLAN: up to 24 groups; QVLAN: up to 32 groups | |
| STP | STP; RSTP | |
| IGMP | IGMP V1 | |
| QoS | FIFO; Strict priority queue; WRR | |
| DHCP | DHCP Client | |
| Management | SNMP V1; telnet; Web | |
| Others | ||
| Operating Enviroment | Operating Temperature | -10℃~40℃ |
| Storage Temperature | -40℃~70℃ | |
| Operating Humidity | 10%~90% RH | |
| Storage Humidity | 5%~90% RH | |
| Minimum System Requirement | Computer with: Browser: Internet Explorer 6.0; Firefox 1.0 or later Memory: 64MB or better Installed NIC OS: Windows 98SE/ ME or later | |
| Package Contents | TEH1224 Power Cord User Manual Rubber cushions and screws L-shaped rack | |
| Certificates | CE, FCC | |
