OP-COM - 基于PC的欧宝诊断
硬件版本：软件版本：OPCOM 090714 /
OP-COM是一个基于PC的诊断程序。
它涵盖了几乎所有的欧宝汽车，基础的诊断与CAN-BUS甚至新车，如威达-C，ASTRA-H，赛飞利-B。
该方案可以让你读出并清除故障码，显示你实时数据，让您执行输出测试，并支持远程和关键编程。
该方案支持多种控制单元，如发动机，自动变速箱，ABS，安全气囊，发动机冷却模块，仪表板，电子气候控制，车身控制单元，只是仅举几个例子。
由于欧宝使用了许多针的OBD插头，诊断接口工作作为多路复用器，并选择适当的针进行通信。
PIN3; PIN7; PIN8; PIN12 =串行链路（ISO9141，KW81，KW82，KWP2000）
故障代码会显示所有可用信息来：
全故障代码的文字说明
完整状态信息（礼物;不存在;间歇）
您可以打印出来，保存或故障代码复制到任何其他应用程序。 从故障代码窗口中，你可以直接去测量块窗口。
该方案显示你测量许多控制模块块信息，您可以从列表中选择你自己的东西。
该方案是能够显示8个测量块参数同时进行的。 采样速率是主要取决于通信协议。 例如，旧系统，像欧米茄-B×25 DT引擎（ISO-9141-2）可能会很慢; 在通信; 而较新的Multec; 或博世单位是速度更快（使用KWP-2000），和最新的基于CAN的控制单元是非常快的！
您也可以在多个控制器上运行输出测试。
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - 双丝; 高速CAN-BUS; 500 kbps的
MSCAN - 双丝; 中速CAN-BUS; 95 kbps的
SWCAN - 单线，低速CAN-BUS，33.3 kbps的
您将获得的激活输出状态的反馈。 这将帮助您找到失败的。 组件更容易。 随着OP-COM，你可以学习键防盗，远程钥匙中央门锁。
您也可以重新和程序以下防盗相关项目：ECM，BCM，IPC。
您将需要车辆的安全代码，这可以在CAR-PASS找到。
您也可以复位; 和程序阿斯特拉-G的保养间隔提示; 赛飞利; 科萨-C; Meriva的
您可以编写SAB6，并SAB8安全气囊的软件。
诊断inteface是一个基于USB端口，因此会有存在兼容性问题，具有串行到USB转换器。
通过USB-BUS通信的速度是足以支撑其高速CAN-BUS系统，这是目前500KBPS的真棒速度。 这是最主要的原因，为什么只有基于USB端口接口可用于CAN-BUS。
相比TECH2，这是经销商工具（配有32 MB卡+的CANdi接口），OP-COM的价格还是比较实惠的。
套餐包括：
1. OP的COM接口
2. USB电缆
3.软件和驱动程序光盘

OP-COM - PC based Opel diagnostic
Hardware VERSION: Software Version: OPCOM 090714/
OP-COM is a PC based diagnostic program.
It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test, and supports remote, and key programming.
The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3; PIN7; PIN8; PIN12 = Serial Link (ISO9141; KW81; KW82; KWP2000)
Fault codes will be shown with all available information:
Full fault code text description
Full status information (Present; Not present; Intermittent)
You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
The program shows you measuring block information on many control module, you can choose anything from the list on your own.
The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow; during communication; while newer Multec; or Bosch units are faster (using KWP-2000) , and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire; High Speed CAN-BUS; 500 kbps
MSCAN - Dual-wire; Medium Speed CAN-BUS; 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
You will get a feedback on the state of the activated output. This will helps you to find the failed. Components more easily. With OP-COM, you can learn keys to immobiliser, and remote keys to the central door locking.
You can also reset, and program the following immobiliser related items: ECM, BCM, IPC.
You will need the vehicle security code, which can be found on the CAR-PASS.
You can also reset; and program the Service interval reminder on Astra-G; Zafira; Corsa-C; Meriva
You can code SAB6, and SAB8 airbags with the software.
The diagnostic inteface is USB port based, so there will be NO COMPATIBILITY ISSUES, with serial to USB converters.
The speed of the communication over the USB-BUS is enough to handle the awesome speed of the High-Speed CAN-BUS systems, which is currently 500kbps. This is the main reason, why only the USB port based interface is available for CAN-BUS.
Compared to the TECH2, which is the dealers tool (with a 32 MB Card+CANdi interface) , the price of OP-COM is quite affordable.

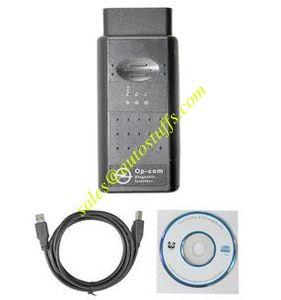

Package including:
1. OP COM Interface
2. USB Cable
3. Software and Drivers CD
