该车辆通信模块（VC​​M）是一个高性能，坚固耐用，车辆串行通信网关。 该设备提供了多种车辆串行通信接口，以满足所有的福特汽车公司车辆的要求。

该VCM装置安装在一个镁外壳用坚韧，防护，塑料盖的PCMCIA扩展插槽，可以，例如，可用于无线局域网卡或内存扩展。

该VCM装置包含五个LED状态指示灯，提供内部VCM的可视化模式下，用户; 车辆; 和主机设备（如NGS经典的T型手柄，PC，掌上电脑/ PDS和笔记本电脑/ IDS）操作。

该VCM也有可拆卸的电缆测试连接到行业标准的高速主机接口以及到车辆上。

该VCM DVD包括bothIDS（综合诊断软件）andPDS（便携式诊断软件）的工具。

诊断coverageincludes most1996〜2011我（生产1995至2011年）福特，林肯/水星和马自达汽车。

应用概述

综合诊断软件（IDS）是下一代的诊断工具。 IDS集成了修改，以在一个现成的现成的笔记本电脑与车辆通信模块（VC​​M）目前在农工商+和PDS使用，新的车辆测量模块（VMM）运行WDS软件。

车辆诊断连接器

对VCM 16针DLC电缆被用于到VCM连接到车辆。 在VCM和VMM通过以太网，USB适配器电缆（H406 / H416）连接到笔记本电脑。

接口设备

所使用与此应用程序的接口设备是：

该器件提供了所有环节的基础功能，包括：数据记录，自检，服务功能，模块配置和编程等VMM车辆测量模块。 注意，应用程序将检测到被连接到笔记本电脑的接口设备。 当VCM和/或VMM连接指示器图标将出现在IDS屏幕的右下方角落

福特VCM的upports 29种语言：
1.西班牙
2.斯洛文尼亚
3.英语
4.希腊
6.丹麦
5.德国
7. Czechic
8.中国（台湾）
9.中文（中国）
10. AmerEnglish
11.越南
12.土耳其
13.泰国
14.瑞典
15.俄罗斯
16.葡萄牙
17.葡萄牙语（巴西）
18.波兰
19.挪威
20.荷兰
21.韩国
22.日本
23.意大利
24.印度
25.匈牙利
26.法国
27.法语（加拿大）
28.芬兰
29.西班牙（墨西哥）

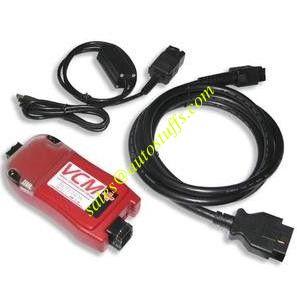

The Vehicle Communication Module (VCM) is a high performance, ruggedized, vehicle serial communications gateway. This device provides multiple vehicle serial communication interfaces to meet the requirements of all Ford Motor Company vehicles.

The VCM unit is housed in a magnesium enclosure with a tough, protective, plastic cover for the PCMCIA expansion slot which can, for example, be used for wireless LAN cards or memory expansion.

The VCM device contains five LED status indicators to provide the user with a visual mode of internal VCM; vehicle; and host device (e.g. NGS Classic's T-Handle, PC, Pocket PC/ PDS, and Laptop/ IDS) operation.

The VCM also has detachable cables for connection to industry standard high-speed host interfaces as well as to the vehicle under test.

The VCM DVD includes bothIDS (Integrated Diagnostic Software) andPDS (Portable Diagnostic Software) tools.

Diagnostic coverageincludes most1996 ~ 2011 MY (produced 1995 - 2011) Ford, Lincoln/ Mercury & Mazda vehicles.

Application Overview

Integrated Diagnostic Software (IDS) is the next generation diagnostic tool. IDS integrates WDS software modified to run on an off-the-shelf laptop with the Vehicle Communication Module (VCM) currently used in NGS+ and PDS, and a new Vehicle Measurement Module (VMM) .

Vehicle Diagnostic Connectors

The VCM 16-pin DLC cable is used to connect the VCM to the vehicle. The VCM and VMM connect to the laptop through the Ethernet-USB Adapter Cable (H406/ H416) .

Interface Devices

The interface devices that are used with this application are:

This device provides all link based functionality including: Data logger, Self test, Service Functions, Module Configuration and Programming, etc. VMM Vehicle Measurement Module. Note that the application will detect the interface device that is connected to the laptop. Indicator icons will appear at the bottom right-hand corner of the IDS screen when the VCM and/ or VMM are connected

FORD VCMs upports 29 languages:
1. Spanish
2. Slovenia
3. English
4. Greece
6. Danmark
5. German
7. Czechic
8. Chinese (Taiwan)
9. Chinese (China)
10. AmerEnglish
11. Vietnam
12. Turkey
13. Thailand
14. Swedish
15. Russian
16. Portuguese
17. Portuguese (Brazil)
18. Poland
19. Norwegian
20. Holand
21. Korea
22. Japanese
23. Italy
24. Indian
25. Hungary
26. French
27. French (Canada)
28. Finland
29. Spanish (Mexico)
