Specifiction＆说明：

1.8 LED灯2.4G无线技术

2.输入电压：DC12V

3.发射功率：0dBm的

4.发射机黑色：接线负极接地

5.变送器黄色：左转向灯的接线正线

6.变送器红：布线制动信号的正线

7.发射绿色：接线右转向灯正线

8.请根据线颜色的线路图，以避免misconnecting连线严格。

9.打开：所有的灯光闪烁两次，关闭：所有的灯闪烁一次

10.防水设计适合各种天气

11.适合所有类型的摩托车，electrombile.etc

12.尺寸：190×70 x30mm，重量：100g /件

产品特点：

1. LED无线头盔刹车和转向灯包括一个发射装置和一个接收装置

2.基于2.4G无线收发技术。

摩托车3.制动和转向信号由发送设备被无线发送到接收装置。

4.无线头盔LED刹车和转向灯安装于头盔的后部用于改善警示效果这是相当明显尤其在有雾，雨雪天气，或在夜间或在黑暗的环境中，从而有效地避免追尾 碰撞并保证司机的安全。

5.无线刹车灯有四个超亮LED灯，它提供有一键开关，尤其是在运行闪烁 - 关一键开关。
6.无线刹车灯是由两节AAA电池供电，可以使用螺丝刀安装电池。
7.发射器（直流12V）包括一个接线盒。
8.两个不同颜色的线从接线盒导致的分别与对应的电线上的摩托车连接。

Specifiction & Instruction:

1.8 leds 2.4G wireless technology

2. Input voltage: DC12v

3. Transmitted power: 0dBm

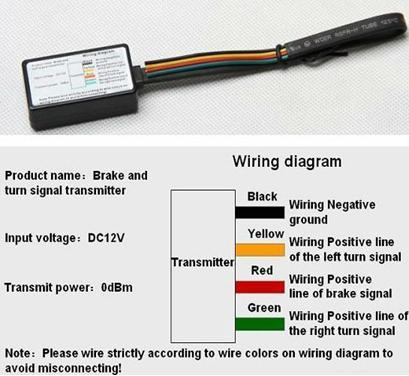

4. Transmitter black: wiring negative ground

5. Transmitter yellow: wiring positive line of the left turn signal

6. Transmitter red: wiring positive line of brake signal

7. Transmitter green: wiring positive line of the right turn signal

8. Please wire strictly according to wire colors on wiring diagram to avoid misconnecting.

9. Turn on: all light flashing twice, turn off: all the light flashing one time

10. Waterproof design suit all weather

11. Suit all kinds of motorcycle, electrombile.etc

12. Size: 190 x70 x30mm, weight: 100g/ piece

Features:

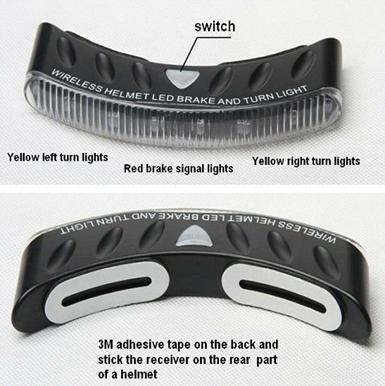

1. The LED wireless helmet brake and turn light consists of a transmitting device and a receiving device

2. Based on 2.4G wireless transceiving technology.

3. Brake and turn signals of motorcycles are wirelessly transmitted to the receiving device by the transmitting device.

4. The wireless helmet LED brake and turn light is attached to the rear part of a helmet for improving warning effect which is quite obvious especially in foggy, rainy and snowy weather, or at night or in dark environment, thereby effectively avoiding rear-end collisions and guaranteeing the safety of drivers.

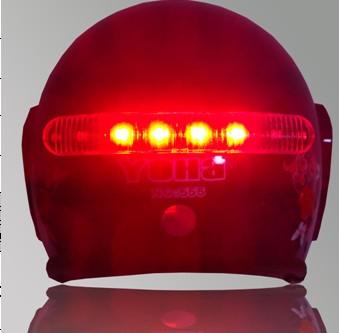

5. The wireless brake light has four super bright LED lamps, it is provided with one key switch, particularly a On-running-flashing-Off one key switch.
6. The wireless brake light is powered by two AAA batteries and you can use a screwdriver to install the battery.
7. The emitter (DC 12V) comprised a junction box.
8. Two different colors of wires led from the junction box are respectively connected with corresponding wires on a motorcycle.
