CCTV Surveillance Camera Systems Auto Electronics Xy-1201
CCTV监控摄像机系统汽车电子Xy-1201
| 型号。 | XY-1201 |
| 探头号码 | 没有 |
| 接口 | RCA |
| 定义 | 480〜1000 Tvl可选 |
| 防水等级 | IP67 |
| 探头直径 | 没有 |
| 电视系统 | PAL / NTSC |
| 最小照明 | 0.01LUX |
| 镜/正常开关 | 可选的 |
| 旋转锁 | 支持 |
| 规范 | 比照 |
| HS编码 | 8525801390 |
| 外壳材质 | 不锈钢 |
| 显示类型 | 反转图像 |
| 功能 | 防水 |
| 芯片 | CCD |
| 报警距离 | 没有 |
| 图像传感器 | CCD / CMOS |
| 视频电缆长度 | 6m |
| 当前消费（马） | 100毫安 |
| 停车线开关 | 可选的 |
| 商标 | x＆y oem; y oemY OEM |
| 起源 | 广东广州 |
红外夜视后视/前视摄像头巴士卡车车厢和大型车辆，12V〜24V适应性，700TVL可选，1/4'CCD / CMOS，防水防水
cctv监控摄像系统汽车电子XY-1201
夜视车载摄像头与明亮的LED在黑暗中表现出色
图像传感器：1/4'ccd / cmoscd / cmos
电视系统：ntsc / pal
有效像素：640 * 480像素
感应面积：4.9mm×3.6mm; 3.6毫米; 3.6mm
同步。系统：内部
水平分辨率：480〜1000TVL可选
最低照度：0 Lux
视频输出：1.0V p-p，75ohm
agc：auto
信噪比：优于48dB
白平衡：自动
电子快门：1/50（PAL）或1/60（NTSC）〜1/10，000秒
blc：auto
电流消耗：最大200毫安
电源：DC 12V〜24V
工作温度：-10oC〜50oC，RH 95％MAX
存储温度：-20oC〜6 0oC RH 95％MAX
镜头：F = 2.8mm / F = 2.0
镜片角度：120度
其他：自动白平衡
净重：280g
----------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
我们是专业的汽车摄像系统供应商，拥有9年车载摄像系统经验，并为世界知名知名品牌提供优质的OEM ODM服务。
请发送您的相机信息请求（图像传感器型号，镜头角度，镜像/正常图像，带移动停车导轨，180/360度鸟瞰图，带/不带停车线，连接器类型，线长度，带DVR，与动态移动停车线，距离传感器，前/后Speica OEM stype相机...），我们可以提供最好的解决方案。
具有严格的材料和质量控制，我们提供1年保修
而且我们的客户生产不足0.3％。
最新LED夜视迷你尺寸汽车倒车后视摄像头
车载相机带反向导航线（具有高分辨率低勒克斯传感器，宽视角镜头）
欢迎所有客户选择我们的工厂，并快乐与所有海外业务
注意事项：我们严格的生产工艺，老化试验和质量控制，确保高品质生产。
我们建立了防水，防震，耐温性，
耐湿度高，清晰度高。
竞争优势
质量稳定（CE FCC ROHS）
最具竞争力的价格
3.时间交货
良好的售后服务
5.所有产品必须逐一测试耐摔和耐高低温性能
6.Warranty：16个月
7.OEM，ODM欢迎
广州X＆Y电子有限公司于2005年在广州成立，是从事汽车摄像机系统，车载DVR摄像机研发，生产和销售的高新技术企业。我们保证准时交货，价格有竞争力，及时响应。我们欢迎您的询问，并期待在不久的将来与您建立长期的业务关系。r future.
------------------------------------------------------------------------------------------------------------------------------
公司电话：+ 86-20-29036269
公司名称：广州兴和电子有限公司 Ltd.
网址：http：//www.xyglobal.cn
cctv监控摄像系统汽车电子XY-1201
夜视车载摄像头与明亮的LED在黑暗中表现出色
图像传感器：1/4'ccd / cmoscd / cmos
电视系统：ntsc / pal
有效像素：640 * 480像素
感应面积：4.9mm×3.6mm; 3.6毫米; 3.6mm
同步。系统：内部
水平分辨率：480〜1000TVL可选
最低照度：0 Lux
视频输出：1.0V p-p，75ohm
agc：auto
信噪比：优于48dB
白平衡：自动
电子快门：1/50（PAL）或1/60（NTSC）〜1/10，000秒
blc：auto
电流消耗：最大200毫安
电源：DC 12V〜24V
工作温度：-10oC〜50oC，RH 95％MAX
存储温度：-20oC〜6 0oC RH 95％MAX
镜头：F = 2.8mm / F = 2.0
镜片角度：120度
其他：自动白平衡
净重：280g
----------------------------------------------------------------------------------------------------------
| 图像传感器1/4'CMOS 7070/10890/1089 |
| nstc / tv系统ntsc / pal |
| 同步系统内部 |
| 最小照度 < 1 lux lux |
| 白平衡自动 |
| 视频颜色多彩 |
| 防水等级IP68 |
| 有效像素580（H）* 540（V） |
| 分辨率480〜1000电视线 |
| 感应区3.5964 * 2.7084mm |
| 视频输出1.0Vp-p，75Ω |
| 电子快门1 / 60S-1 / 5000S |
| S / N比优于48dB |
| 镜片角度170度 |
| 工作温度-20°〜+ 70°〜+ 70°deg;~+70° |
| 储存温度-30°〜+ 80°〜+ 80°deg;~+80° |
| 保修12个月 |
我们是专业的汽车摄像系统供应商，拥有9年车载摄像系统经验，并为世界知名知名品牌提供优质的OEM ODM服务。
请发送您的相机信息请求（图像传感器型号，镜头角度，镜像/正常图像，带移动停车导轨，180/360度鸟瞰图，带/不带停车线，连接器类型，线长度，带DVR，与动态移动停车线，距离传感器，前/后Speica OEM stype相机...），我们可以提供最好的解决方案。
具有严格的材料和质量控制，我们提供1年保修
而且我们的客户生产不足0.3％。
最新LED夜视迷你尺寸汽车倒车后视摄像头
车载相机带反向导航线（具有高分辨率低勒克斯传感器，宽视角镜头）
欢迎所有客户选择我们的工厂，并快乐与所有海外业务
注意事项：我们严格的生产工艺，老化试验和质量控制，确保高品质生产。
我们建立了防水，防震，耐温性，
耐湿度高，清晰度高。
竞争优势
质量稳定（CE FCC ROHS）
最具竞争力的价格
3.时间交货
良好的售后服务
5.所有产品必须逐一测试耐摔和耐高低温性能
6.Warranty：16个月
7.OEM，ODM欢迎
广州X＆Y电子有限公司于2005年在广州成立，是从事汽车摄像机系统，车载DVR摄像机研发，生产和销售的高新技术企业。我们保证准时交货，价格有竞争力，及时响应。我们欢迎您的询问，并期待在不久的将来与您建立长期的业务关系。r future.
------------------------------------------------------------------------------------------------------------------------------
公司电话：+ 86-20-29036269
公司名称：广州兴和电子有限公司 Ltd.
网址：http：//www.xyglobal.cn
| Model NO. | XY-1201 |
| Probe Number | No |
| Interface | RCA |
| Definition | 480~1000 Tvl Optional |
| Waterproof Grade | IP67 |
| Probe Diameter | No |
| TV System | PAL/NTSC |
| Min Illumination | 0.01lux |
| Mirror/Normal Switch | Optional |
| Rotation Lock | Support |
| Specification | CF |
| HS Code | 8525801390 |
| Shell Material | Stainless Steel |
| Display Type | Reverse Image |
| Function | Waterproof |
| Chip | CCD |
| Alarming Distance | No |
| Images Sensors | CCD/CMOS |
| Video Cable Length | 6m |
| Current Consumption(Ma) | 100mA |
| Parking Line Switch | Optional |
| Trademark | X&Y OEM;Y OEMY OEM |
| Origin | Guang Dong Guang Zhou |

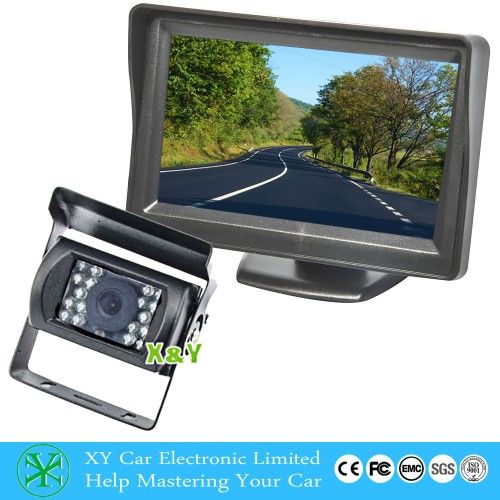

IR night vision Rear /Front view camera for Bus Truck Van and large vehicles,12V~24V Adaptable,700TVL optional ,1/4' CCD/CMOS,waterprooferproof
cctv surveillance camera systems auto electronics XY-1201
Night vision car camera with bright LED good profomance in the dark
Image Sensor: 1/4' CCD/CMOSCD/CMOS
TV System: NTSC/PAL
Effective Pixels: 640*480 pixels
Sensing Area: 4.9mm × 3.6mm; 3.6mm; 3.6mm
Sync. System: Internal
Horizontal Resolution: 480~1000TVL optional
Minimum Illumination: 0 Lux
Video Output: 1.0V p-p, 75ohm
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50(PAL)or 1/60(NTSC)~1/10, 000 Second
BLC: Auto
Current Consumption: Max. 200mA
Power Supply: DC 12V~24V
Operating Temperature: -10oC~50oC, RH 95%MAX
Storage Temperature: -20oC~6 0oC RH 95%MAX
Lens: F=2.8mm/F=2.0
Lens Angle: 120 degrees
other:auto white balance
net weight: 280g
----------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------
We are the professional car camera system supplier with 9 years car camera system experience, and offered excellent OEM ODM service to world wide well know famous brands.
Please send your details request for cameras (image sensor model,lens angle,mirror/normal image,with moving parking guide lines,with 180/360 degree bird view recording,with/without parking line,connector type,wire length,with DVR, with dynamic moving parking line,with distance sensor,Front/Rear Speically OEM stype camera...) and we could offer the best solutions.
With strict material and producing quality control,we offer 1 year warranty
and less than 0.3% faulty rate production to our customers.
NEWEST LED Night Vision mini size auto reverse car rear view camera
car camera with reverse guide line (with high resolution low lux sensor,wide view lense)
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note:We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof,shockproof,temperature resistance,
humidity resistance,high definition.
competitive advantage
1.Stable quality (CE FCC ROHS)
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:16months
7.OEM,ODM welcome
Guangzhou X&Y Electronics Co., Ltd. was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system,car DVR camera.We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.ar future.r future.
------------------------------------------------------------------------------------------------------------------------------
Company Phone: +86-20-29036269
Company Name: Guangzhou X&Y Electronic Co., Ltd., Ltd. Ltd.
Website: http://www.xyglobal.cn
cctv surveillance camera systems auto electronics XY-1201
Night vision car camera with bright LED good profomance in the dark
Image Sensor: 1/4' CCD/CMOSCD/CMOS
TV System: NTSC/PAL
Effective Pixels: 640*480 pixels
Sensing Area: 4.9mm × 3.6mm; 3.6mm; 3.6mm
Sync. System: Internal
Horizontal Resolution: 480~1000TVL optional
Minimum Illumination: 0 Lux
Video Output: 1.0V p-p, 75ohm
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/50(PAL)or 1/60(NTSC)~1/10, 000 Second
BLC: Auto
Current Consumption: Max. 200mA
Power Supply: DC 12V~24V
Operating Temperature: -10oC~50oC, RH 95%MAX
Storage Temperature: -20oC~6 0oC RH 95%MAX
Lens: F=2.8mm/F=2.0
Lens Angle: 120 degrees
other:auto white balance
net weight: 280g
----------------------------------------------------------------------------------------------------------
| Image Sensor 1/4 ' CMOS 7070/10890/1089 |
| NSTC/TV System NTSC/PAL |
| Sync System internal |
| Minimum illumination < 1 lux lux |
| White balance Auto |
| Video color Colorful |
| Waterproof class IP68 |
| Effective pixels 580(H)*540(V) |
| Resolution 480~1000 TV lines |
| Sensing area 3.5964*2.7084mm |
| Video output 1.0Vp-p, 75Ω |
| Electronic shutter 1/60S-1/5000S |
| S/N ratio Better than 48dB |
| Lens angle 170 degree |
| Operation temperature -20° ~+70°~+70°deg;~+70° |
| Storage temperature -30° ~+80°~+80°deg;~+80° |
| Warranty 12 months |
We are the professional car camera system supplier with 9 years car camera system experience, and offered excellent OEM ODM service to world wide well know famous brands.
Please send your details request for cameras (image sensor model,lens angle,mirror/normal image,with moving parking guide lines,with 180/360 degree bird view recording,with/without parking line,connector type,wire length,with DVR, with dynamic moving parking line,with distance sensor,Front/Rear Speically OEM stype camera...) and we could offer the best solutions.
With strict material and producing quality control,we offer 1 year warranty
and less than 0.3% faulty rate production to our customers.
NEWEST LED Night Vision mini size auto reverse car rear view camera
car camera with reverse guide line (with high resolution low lux sensor,wide view lense)
Welcomes All Customers Vistor Our Factory and Happy to do Business with all overseas
Note:We have strict producing process, aging test and QC to make sure high quality production.
We have established systematic production standard in waterproof,shockproof,temperature resistance,
humidity resistance,high definition.
competitive advantage
1.Stable quality (CE FCC ROHS)
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:16months
7.OEM,ODM welcome
Guangzhou X&Y Electronics Co., Ltd. was established in Guangzhou in 2005. We are a hi-tech enterprise engaged in the R&D, production, and sale of car camera system,car DVR camera.We guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.ar future.r future.
------------------------------------------------------------------------------------------------------------------------------
Company Phone: +86-20-29036269
Company Name: Guangzhou X&Y Electronic Co., Ltd., Ltd. Ltd.
Website: http://www.xyglobal.cn
