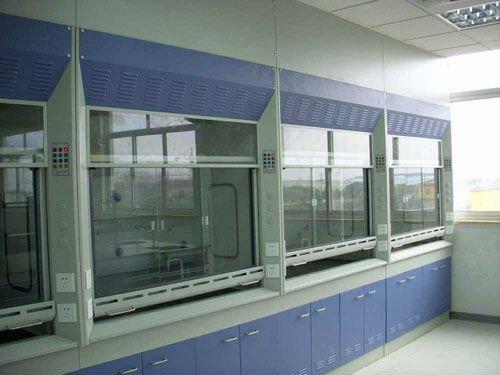

| product name: | Steel Fume Hood |
| product brand: | CARTMAY |
| size: | 1200*850*2350mm |
| 1500*850*2350mm |
| 1800*850*2350mm |
| Material: | 1.0mm cold rolled steel plate with epoxy coated |
| Inner liner panel: | Imported from America; 6mm compact panel; acid and alkali resistance temperature-resistance; anti-moisture |
| Guide plate: | Imported from America, 6mm compact panel, reasonable and knock-down guide structure. Concentrated and effective discharge air, letting off different poisonous gas |
| Operation table board: | acid and alkali resistance, anti-moisture. Impact resistance, 12.7mm thickness chemsurfchemical-resistant laminate with 25.4mm edge/ Trespa panel/ Epoxy resin / stainless/ ceramics as desktop. |
| Window: | 6mm thickness steel safe glass, balancing form elevation and subsidencei, it can be stopped at any position by pulling. |
| Handles: | 304 Stainless steel handle. |
| Lighting equipment: | 20W*2 antisepsis daylight lamp, lamp house is insulated with gas. Lightness on table not lower than 400LUX. |
| Operation panel: | lighting switch; ON/ OFF switch; two sets of 220V/ 10A versatile electric socket |
| Ventilation equipment: | selecting rust-resistance, low wasting, low noise and famous fan and special wind tube. Noise can be reduced at about 55 DB |
