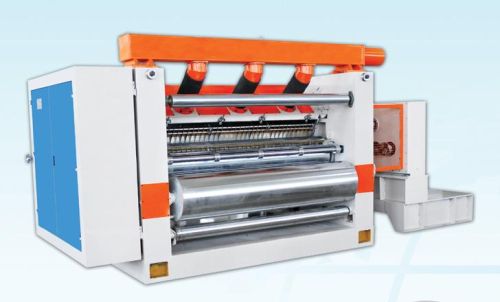

single facer
单面
用途及特点：
设计速度：200米/分
有效宽度：1400毫米-2500毫米
瓦楞辊：φ380mm
无指真空吸附型单面，做成48的CrMo合金钢上下瓦楞辊，与harted治疗，硬度为上述HRC58o-60°是公处理通过研磨和镀铬表面。
上下瓦楞辊的单元组合，全波纹辊组可移动和快速更换，改变笛快速输入。
胶部分是单元组合，全款可通过轨道移动，节省维修时间。
变频电机作为主传动，独立的齿轮箱有三个万向轴，逆变器连接，使无级调速为节省电力，并随时进行生产管理一个通讯连接器。
油浸式润滑，减少噪音保持运行稳定，延长齿轮的使用寿命。
采用胶宽度机动划分到适合纸张宽度。 怠速运行发动机胶水涂布辊，以避免胶水干。 调整用于通过电动或手动可选胶辊和医生辊之间的间隙，数字读出涂胶辊和刮刀辊之间的间隙是可选的。
调整波纹辊，压力辊，并采用气动胶辊。
随着预热器的衬纸和蒸汽喷雾装置中的纸张。
轴承的瓦楞辊，压辊采用高温润滑脂，以确保平稳和持久运行。
有效宽度：1400毫米-2500毫米
瓦楞辊：φ380mm
无指真空吸附型单面，做成48的CrMo合金钢上下瓦楞辊，与harted治疗，硬度为上述HRC58o-60°是公处理通过研磨和镀铬表面。
上下瓦楞辊的单元组合，全波纹辊组可移动和快速更换，改变笛快速输入。
胶部分是单元组合，全款可通过轨道移动，节省维修时间。
变频电机作为主传动，独立的齿轮箱有三个万向轴，逆变器连接，使无级调速为节省电力，并随时进行生产管理一个通讯连接器。
油浸式润滑，减少噪音保持运行稳定，延长齿轮的使用寿命。
采用胶宽度机动划分到适合纸张宽度。 怠速运行发动机胶水涂布辊，以避免胶水干。 调整用于通过电动或手动可选胶辊和医生辊之间的间隙，数字读出涂胶辊和刮刀辊之间的间隙是可选的。
调整波纹辊，压力辊，并采用气动胶辊。
随着预热器的衬纸和蒸汽喷雾装置中的纸张。
轴承的瓦楞辊，压辊采用高温润滑脂，以确保平稳和持久运行。

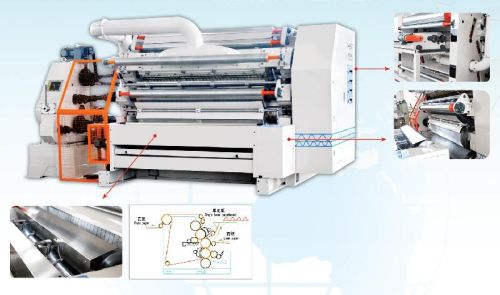

Purpose and Characteristics:
Design Speed: 200m/ min
Effective width: 1400mm-2500mm
Corrugated roller: φ380mm
Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 48 CrMo alloy steel, with harted treatment, the hardness is above HRC58o-60°The surface is well treated by grind and plated chrome.
Upper and lower corrugated roller are unit assemblage, the whole corrugated rollers group can be move and quick replacement, to change flute type quickly.
Glue section are unit assemblage, whole section can be moved by track, save maintenance time.
Frequency conversion motor as main drive , independent gear box connect with three gimbal axis, Inverter to make stepless speed regulation for save power, and to keep one communication connector for production management.
Oil immersed type lubricating to reduce noise keep running stable, prolong the use life of gear.
Adopt Glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll to avoid glue dry. Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.
Adjustment for corrugated roller, pressure roller, and glue roller by pneumatic system.
With preheater for liner paper and steam spray device for medium paper.
Bearing for corrugated rollers, and pressure roller adopt high-temperature lubricate grease to keep running smoothly and durably.
Effective width: 1400mm-2500mm
Corrugated roller: φ380mm
Fingerless vacuum suction type single facer, the upper and lower corrugated roller made of 48 CrMo alloy steel, with harted treatment, the hardness is above HRC58o-60°The surface is well treated by grind and plated chrome.
Upper and lower corrugated roller are unit assemblage, the whole corrugated rollers group can be move and quick replacement, to change flute type quickly.
Glue section are unit assemblage, whole section can be moved by track, save maintenance time.
Frequency conversion motor as main drive , independent gear box connect with three gimbal axis, Inverter to make stepless speed regulation for save power, and to keep one communication connector for production management.
Oil immersed type lubricating to reduce noise keep running stable, prolong the use life of gear.
Adopt Glue width motorized dividing to match the paper width. Idle running motor for glue applicator roll to avoid glue dry. Adjustment for gap between glue roller and doctor roller by electric or manual are optional, Digital read out for the gap between glue roll and doctor roll is optional.
Adjustment for corrugated roller, pressure roller, and glue roller by pneumatic system.
With preheater for liner paper and steam spray device for medium paper.
Bearing for corrugated rollers, and pressure roller adopt high-temperature lubricate grease to keep running smoothly and durably.
