Long Range Security PTZ Thermal Imaging Camera
长距离安全PTZ热成像摄像机
议价
加入意向产品详情
基本信息。
型号：JH320-300 / 75
技术：红外
风格：平移/倾斜
类型：云台
传感器：FPA
HDMI制式：PAL / NTSC
水平分辨率：320X256
种类：电动双的Fov镜头
认证：ISO9001：2000
特点：防水/防水
有效距离：）10公里（船）; ）20公里（船舶）
传感器尺寸：320X256
远程控制：无远程控制
应用：海岸监视
主要市场：全球
附加信息。
商标：武汉市城宝
包装：安全案例
标准：GJB
原产地：中国
HS编码：90318090
生产能力：500台/年
产品描述
长距离安全PTZ热成像摄像机
JH320-150 / 75和JH320-300 / 75
该PTZ摄像机系统，配备了热像仪和天灯摄像头观察入侵者等威胁在完全黑暗的大海，在恶劣的天气。 这云台摄像机系统是一种智能化的IP网络，使树立附近的一个“虚拟围墙”
海岸发现入侵者从海上到达海岸之前。 它也可以是
由积分到一个雷达系统连接。 如果雷达检测物体，云台
摄像系统会自动转向正确的方向，给你视觉图像，
你可以立即看到雷达屏幕上的光点的真正含义。 这是一个自动运动目标检测与识别设备，非常适合集成的固定平台，建筑物和三脚架。
特征
L尺寸指定传感器和镜头，以满足不同的任务。
升能与雷达连接以“从模式”下的监测
升摄像系统输出捕获的图像，以背景进行处理。 功能跟踪目标，产量目标方位角和仰角。
升只需照相机系统通过以太网连接到远程控制面板。
升IP66的保护，防止灰尘和水的侵入，以及抵御腐蚀，变色，盐雾。
升模块化设计，便于维修或升级
技术规格
| 系统参数 | |||
| 潘范围 | 360度* n连续 | ||
| 倾斜范围 | ±80° | ||
| 潘速 | 0.1〜30°/ s最大。 | ||
| 倾斜速度 | 0.1〜25°/ s最大。 | ||
| 通信和控制 | RS422 /以太网 | ||
| 屏蔽 | 是的，供热，风冷式，遮阳，雨刷器 | ||
| 热成像摄像机 | |||
| 检测范围 （可见性：23公里， 15米*10米目标） | 10公里 | 20公里 | |
| 传感器 | 非制冷焦平面氧化钒 | 冷却FPA碲镉汞 | |
| 像素 | 320 * 240，17微米* 17微米 | 320 * 256，30微米* 30微米 | |
| 光谱带 | 为8μm〜12μm波段 | 为3μm〜5μm的 | |
| NETD | ≤55mK | ≤35mK | |
| 帧频 | 为25Hz | 50赫兹 | |
| 焦距 | 150毫米/75毫米 | 为300mm /75毫米 | |
| FOV | 2°*1.5°/ 4°*3° | 1.8°*1.5°/ 7.3°*5.8°/ | |
| 聚焦 | 机动的 | ||
| 电子变焦 | *2 | ||
| 图像处理 | DDE（数字图像细节增强）， ACG（自动增益控制） | ||
| 日光相机 | |||
| 识别范围 （可见性：23公里， 15米*10米目标） | 10公里 | 20公里 | |
| 传感器 | 1/3“彩色CMOS | 1/3“彩色CMOS | |
| 像素 | 1024*768 | 1024*768 | |
| 颜色 | 黑，白 | 黑，白 | |
| FOV | 0.9°*0.7°~37°*27.5° | 18°*13.5°~1°*0.75° | |
| 连续变焦 | 是 | ||
| 聚焦 | 电动，自动对焦 | ||
| 自动光控 | 是 | ||
| 通讯接口 | RS422 | ||
| 视频输出 | 1路的PAL | ||
| 图片展示 | |||
| 视频输出 | PAL热和可见光通道 | ||
| 环境参数 | |||
| 工作温度 | -40℃〜+ 60℃ | ||
| 储存温度 | -50℃〜+ 70℃ | ||
| 知识产权保护 | IP66，抗腐蚀，变色，盐雾 | ||
| 电源参数 | |||
| 电源 | 24VDC〜36VDC | ||
| 物理参数 | |||
| 重量 | ≤40kg | ≤50kg | |
| 尺寸 | 未确定 | ||
| 颜色 | 白色 | ||
| 应用环境 | 室外 | ||
Product Details
Basic Info.
Model NO.:JH320-300/75
Technology:Infrared
Style:Pan/Tilt
Type:PTZ Camera
Sensor:Fpa
HDMI Format:PAL/NTSC
Horizontal Resolution:320X256
Kind:Motorized Dual-Fov Lens
Certification:ISO9001: 2000
Feature:Waterproof / Weatherproof
Effective Distance:)10km (Ship); )20km(Ship)
Sensor Size:320X256
Remote Control:Without Remote Control
Application:Coastal Surveillance
Export Markets:Global
Additional Info.
Trademark:Wuhan JOHO
Packing:Safety Case
Standard:GJB
Origin:China
HS Code:90318090
Production Capacity:500 Units/Year
Product Description

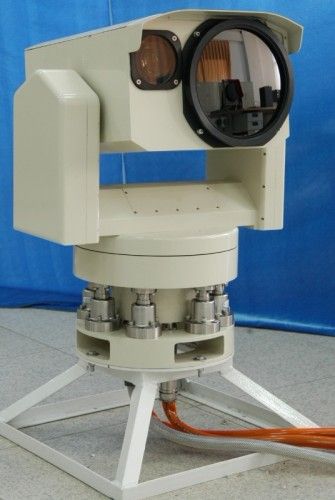

Long Range Security PTZ Thermal Imaging Camera
JH320-150/75 and JH320-300/75
This PTZ camera system is equipped with a thermal camera and day light camera to observe intruders and other threats from the sea in total darkness and in bad weather. This Pan-Tilt camera system is an intelligent IP network so that establish a 'virtual fence' near the
coast to detect intruders from the sea before they reach the coastal. It also can be
connected by the integrator to a radar system. If the radar detects an object, the PTZ
camera system will automatically turn in the right direction and give you a visual image so
that you can instantly see what the blip on the radar screen really means. It is an automatic moving target detection and recognition device, ideal for integration on fixed platforms, buildings and tripods.
FEATURES
l Configurable sensor and lens to satisfy various mission.
l Able to be connected with radar for following monitoring in 'Slave mode'
l Camera system output captured image to background for processing. Functionality of tracking target, output target azimuth and elevation angle.
l Simply connect camera system over Ethernet to a remote control panel.
l IP66 protection against dust and water ingress, as well as resist to corrosion, tarnishing, salt fog.
l Modular design, easy for repair or upgrade
TECHNICAL SPECIFICATIONS
| System Parameters | |||
| Pan range | 360°*n continuous | ||
| Tilt range | ±80° | ||
| Pan speed | 0.1~30°/s Max. | ||
| Tilt speed | 0.1~25°/s Max. | ||
| Communication and control | RS422 / Ethernet | ||
| Shield | Yes, heating, air-cooled, sunshade, wiper | ||
| Thermal Camera | |||
| Detection range (visibility: 23km, 15m*10m target) | 10km | 20km | |
| Sensor | Uncooled FPA VOx | Cooled FPA HgCdTe | |
| Pixel | 320*240, 17μm*17μm | 320*256, 30μm*30μm | |
| Spectral band | 8μm~12μm | 3μm~5μm | |
| NETD | ≤55mK | ≤35mK | |
| Frame frequency | 25Hz | 50Hz | |
| Focus length | 150mm/75mm | 300mm/75mm | |
| FOV | 2°*1.5°/ 4°*3° | 1.8°*1.5°/ 7.3°*5.8°/ | |
| Focusing | Motorized | ||
| Electronic zoom | *2 | ||
| Image Processing | DDE (Digital Detail Enhancement), ACG (Automatic Gain Control) | ||
| Daylight Camera | |||
| Recognition range (visibility: 23km, 15m*10m target) | 10km | 20km | |
| Sensor | 1/3' color CMOS | 1/3' color CMOS | |
| Pixel | 1024*768 | 1024*768 | |
| Color | Black/white | Black/white | |
| FOV | 0.9°*0.7°~37°*27.5° | 18°*13.5°~1°*0.75° | |
| Continuous zoom | yes | ||
| Focusing | Motorized, auto focus | ||
| Automatic light control | Yes | ||
| Communication Interface | RS422 | ||
| Video output | 1-way PAL | ||
| Image Presentation | |||
| Video output | PAL both thermal and visible channel | ||
| Environment parameters | |||
| Operating temperature | -40ºC~+60ºC | ||
| Storage temperature | -50ºC~+70ºC | ||
| IP Protection | IP66, resist to corrosion, tarnishing, salt fog | ||
| Power Parameters | |||
| Power supply | 24VDC~36VDC | ||
| Physical Parameter | |||
| Weight | ≤40kg | ≤50kg | |
| Dimension | Undetermined | ||
| Color | White | ||
| Application Environment | Outdoor | ||
