关键字：LED蓝牙音响灯; 节能灯; 导致蓝牙音频光; 导致音乐灯; 导致音频光; 光源更换
LED蓝牙音频灯
LED照明具有蓝牙音响
该LED照明与蓝牙音频融合了LED节能照明和音响技术结合起来。 外圈是环发光带，它可以照亮的暖白色或冷白色光。 小口径和大马力全频扬声器位于中部地区，和音乐播放器升井。 蓝牙音频接收器，适用于各种产品的蓝牙，如手机，MID，笔记本电脑等。
编号。： SGL-BA001 | 数据 | 条件 |
灯座： | E27 / E26 | |
输出电压（交流） | 90~245V | 50 / 60Hz的 |
输入功率（PO） | ≤15W | 220V / 50HZ |
功率因数（PFC） | ≥0.9 | |
功率效率（η） | ≥82% | 220V / 50HZ; 在满负荷工作 |
LED照明指示灯 |
源电力（PW） | ≤4.5W | |
光通量（LM） | ≥500 | |
显色指数（CRI） | ≥0.7 | |
色温（K） | 5500-6000 | |
光衰减（如果） | ≤3% | 3000H; TA = 25° |
照明角度（°） | ≥160 | |
调光 | 32级数字 |
音频放大器指标 |
音频输出功率（PL） | 3W | F0 = 1KHz的; PL = 1W |
频率响应（F） | 20-20KHZ | PL = 1W; 不匀+ / -3dB; |
信噪比（SNR）的 | ≥80dB | PL = 3W; A加权 |
音频失真（HTD + N） | ≤0.5% | PL = 1W; F = 1KHz的 |
音量控制 | 32级数字 |
蓝牙的传输距离 | ≥10M | 没有任何障碍 |
红外控制距离 | ≥10M | 没有任何障碍 |
使用环境指标 |
应用环境（°） | -20~60 | |
存储环境（度） | -40~70 | |
使用说明
1.本产品适用于电网电压90-240V交流的领域。
2.该产品的主机接口采用国际通用的E27 / E26的标准。
3.从地面安装的距离超过2.2M，最大小于4M。
4.蓝牙传输的距离大于10M（不存在任何障碍时）。
5.红外遥控距离大于10M，360°遥控器无死角
（主机安装测试高度3M）。
6.主机处于低功耗状态时，主机遥控关机，符合环保要求。 当长期不用时，请关掉线路开关。
7.本产品具有完善的保护功能。 当环境温度过高或电网浪涌太尖锐，主机会自动进入保护，机器处于待机状态。 这是正常的。
而且只需要简单地按一下按钮，重新启动。
关于这个新灯的更多信息，请联系我们的销售的完整说明，许多的感谢！
（备注：所有图片只是仅供参考。）
Keyword: led bluetooth audio lamp; energy-saving light; led bluetooth audio light; led music light; led audio light; light source replacement
LED Bluetooth Audio lamp
LED Lighting With Bluetooth Audio

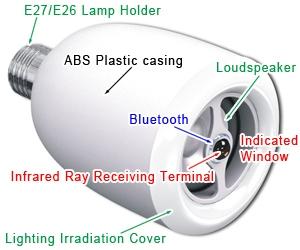

This LED lighting with Bluetooth audio combines LED energy-saving lighting and sound technology together. The outer ring is the ring luminescence band, which can brighten the light of warm white or cool white. A small-caliber and high-powered full-range speaker is located in the middle area, and music player rise well. Bluetooth audio receiver is suitable for all kinds of products with Bluetooth, such as mobile phone, MID, notebook etc.
Item No.: SGL-BA001 | Data | Condition |
Lamp Base: | E27 / E26 | |
Output voltage (AC) | 90~245V | 50/60Hz |
Input power (Po) | ≤15W | 220V/ 50Hz |
Power factor (PFC) | ≥0.9 | |
Power efficiency (η) | ≥82% | 220V/ 50Hz; Work at full capacity |
LED lighting indicators |
Source power (Pw) | ≤4.5W | |
Luminous flux (Lm) | ≥500 | |
Color rendering index (CRI) | ≥0.7 | |
Color temperature (K) | 5500-6000 | |
Light decay (If) | ≤3% | 3000H; Ta=25° |
Illumination angle (°) | ≥160 | |
Dimming | 32-step digital |
Audio amplifier indicators |
Audio output power (PL) | 3W | F0=1KHz; PL=1W |
Frequency response (F) | 20-20KHz | PL=1W; Unevenness+/ -3dB; |
Signal to Noise Ratio (SNR) | ≥80dB | PL=3W; A-weighted |
Audio distortion (HTD+N) | ≤0.5% | PL=1W; F=1KHz |
Volume control | 32-step digital |
Bluetooth transmission distance | ≥10M | No obstacle |
Infrared control distance | ≥10M | No obstacle |
Use of environmental indicators |
Application Environment (°) | -20~60 | |
Storing Environment (°) | -40~70 | |
Instructions of use
1. This product is suitable for the areas of grid voltage 90-240V AC.
2. The host interface of the product uses internationally accepted E27/ E26 standard.
3. The installed distance from the ground is more than 2.2M, and the maximum less than 4M.
4. The distance of Bluetooth transmission is greater than 10M (when no obstacles) .
5. Infrared remote control distance is greater than 10M, 360° remote control without dead space
(host installation testing height 3M) .
6. The host is in low power state when the host is remote shutdown, in line with environmental protection requirements. When unused for long periods, please turn off the line switch.
7. This product has perfect protection function. When the ambient temperature is too high or the power grid surge is too sharp, the host will enter protection automatically, and the machine is in standby. This is normal.
and it just needs simply press the button to restart.
More information about this new lamp, please contact our sales for the complete Instructions with many thanks!
( Remark: All pictures just for your reference only. )
