LED Street Light SGL-PST04
LED路灯SGL-PST04
议价
加入意向关键字：LED路灯; 节能灯; 导致PLC光; LED道路照明; 导致公园灯; 光源更换
E40接口高效率LED路灯
产品编号：SGL-PST04
净重：1.56公斤
产品规格：Ф150x285毫米
灯座：E27 / E39 / E40
LED灯：72 x 1W
光源功率：72瓦
总功率：80瓦
光效率：≥100-110流明/瓦
色温：暖白：3700K-3200K
纯白色：4000K-4500K
冷白：5700K-6300K
输入电压：AC90V〜265V / DC12 / 24V
输入频率：50〜60赫兹
输出电流：320〜330毫安
驱动功率因数：）0.90
驱动电源转化效率：）85％
发光角度：水平水平120度
纵向160度
光衰：在1000小时（3％
寿命：）50000小时
光斑形状：圆形光斑
工作温度范围：-40℃〜70℃
存储温度范围：-20℃〜60℃
光源Lumious光通量：）7200 Lm的
照射范围：6M：45 /2²πM²
8M：55 /2²πM²
照度：6M：）72 LUX
8M：）51 LUX
-
适用范围：
1.应用于城市次干道和小区道路及人行道照明
2.对于景观灯，庭院灯照明
3.适用于太阳能和风能供电照明。
4.适用于矿山，船舶，机床等照明。
5.可直接替换白炽灯; 节能灯; 无极灯; 汞灯; 而不需要替换原始holde钠灯
产品特点：
1.光效：100LM / W
2.寿命长：LED灯具使用寿命可达5 - 7年;
3.健康照明：发热量低; 无热辐射; 无汞; 钠等危害人体健康的元素;
4.有利的环境：LED灯为全固态体耐冲击不易破碎; 废物回收; 无污染，可称为绿色照明光源;
5.适应环境强：在-40℃-80℃，湿度≤65％的环境中。
（注：本aboves图片只是仅供您参考。）
Keyword: led street light; energy-saving light; led PLC light; led road light; led park light; light source replacement
E40 Interface High Efficiency LED Street Light
Item No.: SGL-PST04
Net Weight: 1.56 Kgs

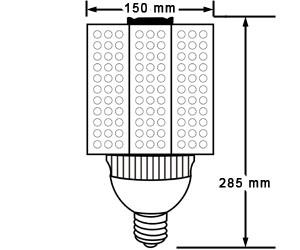

Specifications: Ф150 x 285 mm
Lamp Base: E27 / E39 / E40
LEDs: 72 x 1W
Light Source Power: 72 W
Total Power: 80 W
Light Efficiency: ≥ 100-110 Lm / W
Color Temperature: Warm White: 3700K-3200K
Pure White: 4000K-4500K
Cool White: 5700K-6300K
Input Voltage: AC90V~265V / DC12 / 24V
Input Frequency: 50 ~ 60 HZ
Output Current: 320 ~ 330 mA
Driving Power Factor: ) 0.90
Driving Power Transformation Efficiency: ) 85%
Light Angle: Horizontal horizontal 120 degrees
Longitudinal 160 degrees
Luminous Decay: Within 1000Hours ( 3%
Life Span: ) 50000hs
Light Spot Shape: Circular Facula
Working Temperature Scope: -40℃ ~ 70℃
Storage Temperature Scope: -20℃ ~ 60℃
Light Source Lumious Flux: ) 7200 Lm
Radiation Range: 6M: 45/2²πM²
8M: 55/2²πM²
Illuminance: 6M: ) 72 LUX
8M: ) 51 LUX
-
Applicable scope:
1. Applied to urban sub-trunk roads and residential roads and sidewalk lighting
2. For the landscape lamp, courtyard lighting
3. Applies to solar and wind-powered lighting.
4. Applies to mines, ships, machine tools and other lighting.
5. Can directly replace the incandescent lamp; energy-saving lamps; electrodeless lamps; mercury lamp; sodium lamp without the need to replace the original holde
Features:
1. Luminous efficiency : 100LM / W
2. Long life: LED lamp life of up to 5-7 years;
3. Healthy Lighting: Low heat; no hot-radioactive; non-mercury; sodium and other elements harmful to human health;
4. Beneficial to the environment: LED light for all-solid-body impact resistance is not easy broken; waste recycling; pollution-free can be called the Green Color illumination light source;
5. Adapt to the environment strong: in the-40℃-80℃, humidity ≤ 65% of the environment.
( Remark: The aboves pictures just for your reference only. )
