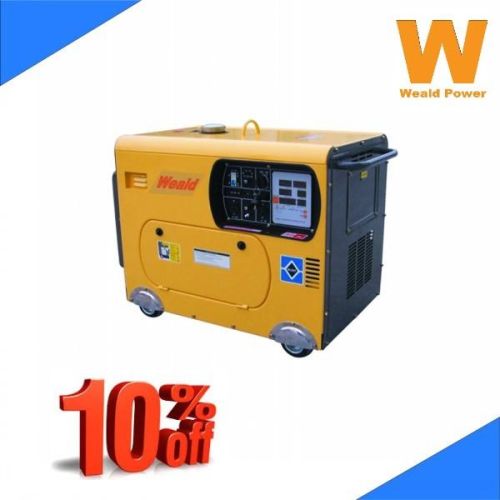

Silent Generator 5000W
静音发电机5000W
议价
加入意向技术指标
418cc柴油发动机， 4冲程电启动数字控制面板
包括车轮套件和免维护蓄电池
5KVA隔音发电机
| 模型 | WD7000SE | WD7000SE - 3 | ||
| AC频率（Hz ） | 50 | 60 | 50 | 60 |
| 续 交流电源（ KVA ） | 4.2 | 4.5 | 4.5 | 5 |
| 最大。 交流电源（ KVA ） | 4.5 | 5 | 5 | 5.5 |
| 交流电压（V） | 115/230220230240/110120110/220120/240 | 380230/400277/480 | ||
| 直流输出（ V / A ） | 12/8.3 | 12/8.3 | ||
| 相数 | 单相 | 三相 | ||
| 功率因数 | 1 | 0.8 | ||
| 绝缘等级 | F | |||
| 发动机型号 | 186FAE | |||
| 发动机型号 | 风冷; 4冲程; 柴油发动机; 单缸 | |||
| 最大。 功率（ HP ） | 10 | |||
| 排量（ CC ） | 418 | |||
| 发动机转速（ RPM ） | 3000 | 3600 | 3000 | 3600 |
| 油箱容积（L ） | 14 | |||
| 续 工作时间（H）的 | 11 | 9.5 | 11 | 9.5 |
| 噪声电平米（分贝） | 69 | |||
| 启动系统 | 电动 | |||
| 毛重（ KG ） | 174 | 176 | ||
| 包装尺寸（mm ） | 955*565*760 | |||
| 20'GP集装箱数量 | 74 | |||
| 40'HQ集装箱数量 | 163 | |||
Specifications
418cc diesel engine, 4 stroke with electric startdigital control panel
includes wheels kit and maintenance free battery
5kva Soundproof Generator
| Model | WD7000SE | WD7000SE-3 | ||
| AC Frequency (Hz) | 50 | 60 | 50 | 60 |
| Cont. AC Power (KVA) | 4.2 | 4.5 | 4.5 | 5 |
| Max. AC Power (KVA) | 4.5 | 5 | 5 | 5.5 |
| AC Voltage (V) | 115/230220230240/110120110/220120/240 | 380230/400277/480 | ||
| DC Output (V/ A) | 12/8.3 | 12/8.3 | ||
| Phase Number | Single Phase | Three Phase | ||
| Power Factor | 1 | 0.8 | ||
| Insulation Class | F | |||
| Engine Model | 186FAE | |||
| Engine Type | Air-cooled; 4-stroke; diesel engine; Single Cylinder | |||
| Max. Power (HP) | 10 | |||
| Displacement (CC) | 418 | |||
| Engine Speed (RPM) | 3000 | 3600 | 3000 | 3600 |
| Fuel Tank Capacity (L) | 14 | |||
| Cont. Working Time (H) | 11 | 9.5 | 11 | 9.5 |
| Noise Level at 7m (dB) | 69 | |||
| Start System | Electric | |||
| Gross Weight (KG) | 174 | 176 | ||
| Packing Size (MM) | 955*565*760 | |||
| 20'GP Container QTY | 74 | |||
| 40'HQ Container QTY | 163 | |||
