项目细节

is_customized：

是

包：

是

型号：

SP-SHD201A

产品描述

1×2的HDBaseT分路器RS232与以太网和POE

产品特点：

lIncorporates HDBaseT技术。

lDistributes 1个HDMI源2显示了超五类/ 6电缆。

lSupports 3D功能。

从480P lSupports分辨率可达1080p和高达4K * 2K。

lSupports杜比TrueHD技术，DTS-HD音频母校传输。

lSupports距离可达至的CAT5e / 6电缆70米。

lSupports双向IR。

lCEC传递。

•HDMI版本：高速与3D
•HDCP版本：HDCP1.2
•支持HDMI分辨率：1080P / 1080i的/ 720P / 576P / 576I / 480P / 480i的
•支持的视频色位：色深24位/ 36位
•支持的音频格式：LPCM /杜比AC3 / DTS7.1 / DSD
•输入视频信号：5.0Volts P-P
•输出电缆距离：小于12英尺26AWG的
•输入电缆距离：小于12英尺26AWG的
•数据传输：6.75Gbps，达到10.2Gbps
•工作湿度范围：5〜90％RH（无冷凝）
•工作温度：-15〜+ 55℃（5〜131F）
•电源适配器格式：输入交流电（50赫兹60Hz）的100〜240V
•电源：DC 5V

HDMI到CAT5 HDBaseT技术适配器可用于：
1.任何高清碟网络和DirecTV的接收器与HDMI输出接口
2.高清TiVo的带有HDMI输出接口
3.任何高清晰度有线接收器与HDMI输出接口
4.加拿大罗杰斯; 肖; 响铃ExpressVu和星接收器的选择与HDMI输出; 或DVI输出与转换器
5.任何空中下载（OTA）高清接收器与HDMI输出接口
6.索尼PS3，HD DVD和蓝光DVD播放器
7.带有HDMI输出的任何的Xbox360
8.任何上变频DVD播放机配备HDMI输出
9.任何DVHS录像机配备HDMI输出
10.配备HDMI输出苹果电视
11. Roku公司配备HDMI输出
12. VUDU配备HDMI输出
13.许多PC显卡配备HDMI输出
14.任何高清摄录一体机使用可选的C类标准的HDMI线
15.许多A / V环绕声接收器与HDMI切换，包括适当的芯片组。 请致电您的AV接收器的供应商讨论您的应用或美国。
16.任何2D兼容HDCP高清电视，显示器和投影仪。 如果源是HDCP兼容和你的电视不，你不会得到一个图片。 请检查您的电视手册或制造商的网站。
17.所有的HDMI 1.3标准的设备，以及与旧的1.0，1.1，1.2和all1.4
HDMI HDBaseT技术延长有用的提示和建议：

1. CAT6电缆不应超过220英尺或（70米）。
2.在现场终端网络电缆时请遵守TIA / EIA568B标准。
3.屏蔽CAT5 / 6与金属的RJ-45连接器，建议以防止造成电磁干扰随机视频闪烁

包装详细信息

单位类型：

片

包装重量：

1.050千克

包装尺寸：

15厘米×15厘米x 10厘米

Item specifics

is_customized:

Yes

Package:

Yes

Model Number:

SP-SHD201A

Product Description

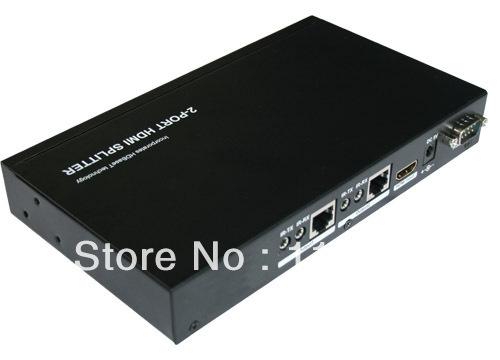

1x2 HDBaseT splitter RS232 with Ethernet and POE

Features:

lIncorporates HDBaseT technology.

lDistributes 1 HDMI source to 2 displays over Cat5e/ 6 cable.

lSupports 3D features.

lSupports resolutions from 480p to 1080p and up to 4K*2K.

lSupports Dolby TrueHD, DTS- HD Mater Audio transmission.

lSupports distances up to 70 meters through CAT5e/ 6 cables.

lSupports Bi-Directional IR.

lCEC Pass-Through.

• HDMI version: High speed with 3D
• HDCP version: HDCP1.2
• Supported HDMI resolutions: 1080P/ 1080i/ 720P/ 576P/ 576i/ 480P/ 480i
• Supported video color bit: deep color 24bit/ 36bit
• Supported audio formats: LPCM/ Dolby-AC3/ DTS7.1/ DSD
• Input Video signal: 5.0Volts P-P
• Output cable distance: Less than 12 feet of 26AWG
• Input cable distance: Less than 12 feet of 26AWG
• Data transfer: 6.75Gbps-10.2Gbps
• Operating Humidity range: 5 to 90%RH (No Condensation)
• Operating Temperature: -15 to +55C (5 to 131F)
• Power adapter format: Input AC (50Hz. 60Hz) 100- 240V
• Power Supply: DC 5V

HDMI to CAT5 HDBaseT Adapter Can Be Used With:
1. Any high definition Dish Network and DirecTV receiver with HDMI outputs
2. High definition TiVo's with HDMI outputs
3. Any high definition cable receiver with HDMI outputs
4. Canadian Rogers; Shaw; Bell ExpressVu and Star Choice receivers with HDMI out; or DVI out with a converter
5. Any Over The Air (OTA) high definition receiver with HDMI outputs
6. Sony PS3, HD DVD and Blu-ray DVD players
7. Any Xbox360 with HDMI outputs
8. Any upconverting DVD player with HDMI outputs
9. Any DVHS VCR with HDMI outputs
10. An APPLE TV with HDMI outputs
11. A Roku with HDMI outputs
12. A Vudu with HDMI outputs
13. Many PC video card with HDMI outputs
14. Any high definition camcorder with an optional type C to standard HDMI cable
15. Many A/ V surround sound receivers with HDMI switching that include the proper chip set. Call your AV receiver supplier to discuss your application or us.
16. Any 2D HDCP compliant HDTV, monitor and projector. If the source is HDCP compliant and your TV is not, you will not get a picture. Please check your TV manual or the manufacturers web site.
17. All HDMI 1.3 compliant devices as well as with older 1.0, 1.1, 1.2 and all1.4
HDMI HDbaseT Extender Helpful Tips & Recommendations:

1. CAT6 cables should not exceed 220 feet or (70m) .
2. Please adhere to the TIA/ EIA568B standards when terminating network cables in the field.
3. Shielded CAT5/6 with metal RJ-45 connectors are recommended to safeguard against random video flashes caused by electromagnetic interference

Packaging Details

Unit Type:

piece

Package Weight:

1.050kg

Package Size:

15cm x 15cm x 10cm
