3X1 HDMI Switcher Support 3D 1080p Full HD
3X1 HDMI切换器支持3D 1080p全高清
议价
加入意向产品描述
迷你HDMI切换器，带3D直通
3×1 HDMI切换器路由高清视频与3D直通（在多种分辨率高达1080p），加上从三个来源至电视机或投影机中的任何一个数字音频。 三个输入容纳多达三个高清视频源，如SkyHDi，Freeview频道的高清，PS3，XBOX360，蓝光播放器及更多的同时连接。 HDMI输出发送高清音频/视频信号到任何高清显示。 切换信号源很容易通过细长型远程完成。 高分辨率和充分的色彩是你的12位色深和全1080p分辨率。 技术上的声音，并支持HDMI 1.3b的和1.4的3D直通在AV技术的最新进展。
保持与没有信号损失和美丽的尖锐HDTV分辨率高达1080p，2K，1440P显卡和高达1920 x 1200轻松实现电脑分辨率的高清晰度视频。
技术指标
| 输入DDC信号 | 5伏P-P（TTL） |
| 最大单链路范围 | 为1920x1080 |
| 输出视频 | HDMI 13亿 |
| 垂直频率范围 | 50 / 60Hz的 |
| 视频放大器带宽 | 的2.5Gbps / 250MHz的 |
| 隔行扫描（50＆60赫兹） | 480i的; 576i的; 1080i的 |
| 进步（50＆60赫兹） | 480P; 576P; 720P; 1080 |
| 有限保修 | 1年部件和人工 |
| 工作温度 | 0至+70 |
| 工作湿度 | 10％〜85％RH（无冷凝） |
| 储存温度 | -10to + 80 |
| 存储湿度 | 5％至90％RH（无冷凝） |
| 外部电源 | 无需电源 |
| 功率消耗（最大） | 5W |
| 使用手册 | 英文版 |
Product Description

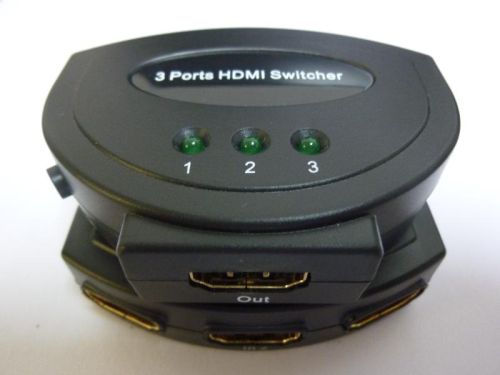

Mini HDMI Switcher With 3D Passthrough
3 x 1 HDMI switcher routes high definition video with 3D pass-through (in multiple resolutions up to 1080p) plus digital audio from any one of the three sources to your TV or Projector. Three inputs accommodate the simultaneous connection of up to three high definition video sources, such as SkyHDi, Freeview HD, PS3, Xbox360, Blu-ray players & more. The HDMI output sends the high definition audio/ video signals to any high definition display. Switching sources is easily done via the slim line remote. High resolution and full color is yours with 12-bit Deep Color and full 1080p resolution. Technologically sound and supports HDMI 1.3b & 1.4 3D pass-through for the latest advances in AV technology.
Maintains high resolution video with no signal loss and beautiful sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved.
SPECIFICATIONS
| Input DDC Signal | 5 volts p-p (TTL) |
| Maximum Single Link Range | 1920X1080p |
| Output Video | HDMI 1.3b |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/ 250MHz |
| Interlaced (50&60Hz) | 480i; 576i; 1080i |
| Progressive (50&60Hz) | 480p; 576p; 720p; 1080p |
| Limited Warranty | 1 Year Parts and Labor |
| Operating Temperature | 0 to +70 |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10to +80 |
| Storage Humidity | 5% to 90 % RH (no condensation) |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W |
| User Manual | English Version |
