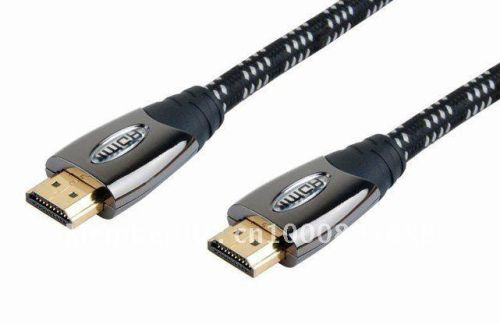

Metal housing Gold plated connector High Speed HDMI Cable

Metal housing Gold plated connector High Speed HDMI Cable

金属外壳镀金连接器，高速HDMI线

议价

加入意向

项目细节

原始地点：
广东中国（大陆）
is_customized：
是
型号：
szc015

产品描述

主要规格/特殊功能：

  • 镀金金属外壳

  • 高清晰多媒体接口电缆

  • HDMI 19针公转HDMI 19针公

  • 完美的连接HDMI显示器; A / V接收器; 和HDTV

  • 支持所有HDMI设备，包括1.3 / 1.4

  • 支持分辨率高达1080p

  • 我们CL3 HDMI线能满足您的接线HDMI线建设

  • HDMI转接头，认证与ATC

产品特点：

1.高品质1.3 / 1.4 HDMI转HDMI电缆适用于高清电视，家庭影院，DVD播放机，投影仪等设备的使用;

2. 24K镀金接头抗腐蚀，并确保最大的信号传输最佳的连接;

3.高纯氧免费库珀导体最大的导电性和可靠性;

4.具有多种音频格式，从立体声到穆蒂通道cound兼容;

5.传输每秒10.2 GB的包高速数字音频及录象信号;

1.4V特点：

1. 3D-能力通过3D立体信号格式

2. 4K-4096×2160的商业应用，如数字电影院，CAD，后期制作，图形等/ 24视频分辨率支持

3. HDMI以太网通道，允许两个HDMI连接设备之间的100 Mb / s以太网

4.音频回传通道，允许音频从显示器返回到HDMI信号源进行放大和显示

5.支持所有SD; HD; 和VESA（VGA，SVGA，XGA，WXGA，SXGA，UXGA）的分辨率高达1080p（60Hz的＆50赫兹）

6. SD和HD：480i的; 480P; 720P; 1080i的; 1080; 1440P

7. VESA / DVI：从640×高达1920x1200p

电气特性：

1. 100％打开和短路测试;

2.耐压：直流200V 10ms的

3.绝缘电阻：10M欧姆分钟

4，接触电阻：3max

包装详细信息

单位类型：
片
包装重量：
0.28千克
包装尺寸：
10厘米x 5cm的×旁边3cm

Item specifics

Place of Origin:
Guangdong China (Mainland)
is_customized:
Yes
Model Number:
szc015

Product Description

Key Specifications/ Special Features:

  • Gold-plated metal shell

  • High definition multimedia interface cable

  • HDMI 19-pin male to HDMI 19-pin male

  • Perfect for connecting your HDMI monitors; A/ V receivers; and HDTV

  • Supports all HDMI devices, including 1.3/1.4

  • Supports resolution up to 1080p

  • Our CL3 HDMI cable can satisfy your wiring HDMI cables in construction

  • HDMI adapter, certification with ATC

Features:

1. A premium quality 1.3/1.4 hdmi to hdmi cable is suitable for use in HDTV, home theater, DVD player, projector and other devices;

2. 24K gold plated connector resist corrosion and ensures an optimum connection for maximum signal transfer;

3. high pure oxygen free cooper conductor for maximum conductivity and reliability;

4. compatible with multiple audio formats from stereo to muti-channel cound;

5. transfer digital audio&vedio signals at wrap speed of 10.2 gigabytes per second;

1.4v features:

1. 3D-Capability to pass 3D stereoscopic signal formats

2. 4K-4096x2160/24 video resolution support for commercial applications such as Digital Movie Theaters, CAD, Post Production, Graphics and etc.

3. HDMI Ethernet Channel-Allows 100 Mb/ s Ethernet between two HDMI connecting devices

4. Audio Return Channel-Allows audio to be returned from display back to HDMI source for amplification and display

5. Supports all SD; HD; and VESA (VGA; SVGA; XGA; WXGA; SXGA; UXGA) resolutions up to 1080p (60Hz & 50Hz)

6. SD & HD: 480i; 480p; 720p; 1080i; 1080p; 1440p

7. VESA / DVI: From 640x480p up to 1920x1200p

Electrical features:

1. 100% open & short test;

2. Hi-pot: DC 200v 10ms

3. insulation resistance: 10m ohm min

4. contact resistance: 3max

Packaging Details

Unit Type:
piece
Package Weight:
0.28kg
Package Size:
10cm x 5cm x 3cm
