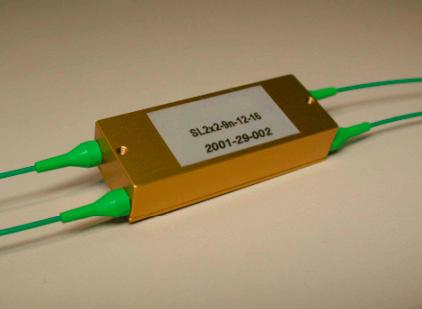

2×2 MEMS SWITCHare光学机械latchingswitches用于光纤通信网络最苛刻的应用。 该交换机可in1x1 ， 2× 2×2和变种，并提供固态可靠性，精度准确和快速的响应时间。 该switchmechanism被锁定，有一个非常快速的timebelow 1毫秒，只有0.5 dB的插入损耗响应。 在SLTS变型中，开关带有一个内置器就位显示器以感测开关的状态。 在微型封装承受崎岖environmentsand非常适合于直接安装在印刷circuitboards 。 根据Telcordia GR1221的开关是合格的。

特征

`可靠

` 0.5分贝插入损耗

` 0.5毫秒响应时间

`低PDL

` 60分贝串扰

`微型尺寸

`闭锁

` 2×2; 2X1; 1x1的变种

应用

`保护倒换

`重新配置

` WDM

The 2x2 MEMS SWITCHare opto-mechanical latchingswitches for the most demanding applications in fiberoptic communication networks. The switch is available in1x1, 2x1 and 2x2 variants and offers solid state reliability, accurate precision and fast response time. The switchmechanism is latching and has a very fast response timebelow 1 ms and only 0.5 dB insertion loss. In the SLTS variant the switch comes with a built inposition monitor to sense the state of the switch. The miniature package withstands rugged environmentsand is well suited for direct mounting on printed circuitboards. The switch is qualified according to Telcordia GR1221.

FEATURES

` reliable

` 0.5 dB insertion loss

` 0.5 ms response time

` low PDL

` 60 dB crosstalk

` miniature size

` latching

` 2x2; 2x1; 1x1 variants

APPLICATIONS

` Protection Switching

` Reconfiguration

` WDM
