产品详情：

原始地点	广东省，中国（大陆）
品牌	KR
型号	KR2000
类型	适配器
性别	女
沥青	2.00毫米
行	单
类别	压接壳体

详细信息

生产速度快，对时间
质量保证
的MOLEX品牌的替代品
安全
代理销售单独可能

我们的产品的关键词 :

水晶头质量高; 理想的Molex产品的认购; 更便宜

OEM采样延迟：1-3天

样品免费

质量保证

股票

prodce快，交货准时

产品通过UL，符合RoHS标准

应用：

信号线对板。

一般：

系列：KR2000

产品：压接外壳

gende R：女

锁定插接部位：是

电路/引脚：2-15

沥青配合界面：2.00毫米

规范：

材料：尼龙，UL 94V

额定电流：1A AC，DC

额定电压：100V AC.DC

温度范围：-25℃ - + 85°C

绝缘电阻：500MΩ/分钟

withstading volage：500V AC /分钟

接触电阻：20MΩ/最大

	内部产品MATES			Molex产品MATES信息
	住房	终奌站	WAFER	住房	终奌站	WAFER
KR1250	KR1251H	KR1250T	KR1250WF	51047		53047/53048/53261/53398
KR1251	KR1250H	KR1251T		51021	50125	50133
KR1252		KR1252T			50061/50080
KR1253		KR1253T	KR1253W		50641/50753	53780
KR1500		KR1500T	KR1500W		87421	87437/87438
KR2000		KR2000T	KR2000W		50011	53014/53015/53025
KR2007		KR2007T		51005FH	50012
KR2360	KR2360H	KR2360T
KR2500		KR2500T	KR2500W		5263

阅读意甲数字的指南:

例：

KR1234H：康瑞品牌，PITCH1.23毫米住房（H meansing住房; F表示女生宿舍，M是指性别男性; T代表终端;W¯¯signfic晶片）

需要知道：

产品畅销单独possble（终端，住房/头）

样品免费

样品交付在1-3个工作日

如果你找不到你想要在我们广泛的标准列表什么; 请联系我们为自定义; 我们DESGIN灵活和

制造能力使我们更好地提供您的需求在numerious应用解决方案

我们是位于东莞的公司; 广东省在中国; 公司工业; 被称为各种等于莫仕/小时/ JAE / AMP的专业制造商

通过了ISO9001国际质量体系标准认证，符合许多认证UL美国，加拿大CSA的德国TUV和RoHS欧盟斯塔纳德。

我们的产品涵盖连接器外壳，终端，晶片及线束总成等。 广泛applicate在电脑，家电，工业用途，安防系统，小区，圈，汽车等等。

我们处置各种设备产品; 联系的furher信息; OME欢迎

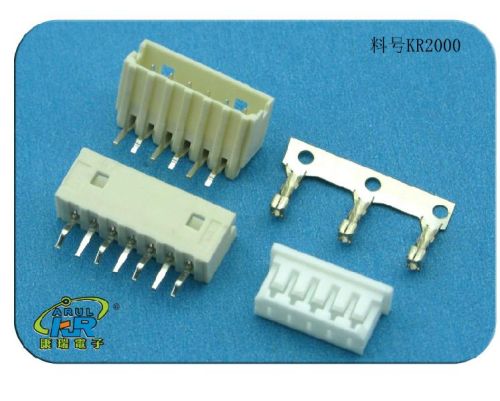

样品 ：

Product Details:

Place of Origin	Guangdong, China (Mainland)
Brand Name	KR
Model Number	KR2000
Type	Adapter
Gender	Female
pitch	2.00mm
row	single
category	crimp housing

Detailed Product Description

produce fast and on time
quality guarantee
substitute of MOLEX brands
security
agents sell individually possible

key words of our product :

connctor high quality; ideal for subscription of molex product ; more cheaper

OEM sample delay : 1-3 days

sample free

quality guarantee

stock

prodce fast and delivery on time

products UL, Rohs compliant

Application:

signal, wire to board.

General:

series: KR2000

product: crimp housing

gender: female

lock to mating part : yes

circuit/ pin: 2-15

pitch-mating interface: 2.00mm

specification:

material: nylon, UL 94V

current rating: 1A AC, DC

voltage rating: 100V AC.DC

temperature range: -25°C-+85°C

insulation resistance: 500M Ω / Min

withstading volage: 500V AC/ minute

contact resistance: 20mΩ/ Max

	INTERNAL PRODUCT MATES			MOLEX PRODUCT MATES INFO
	HOUSING	TERMINAL	WAFER	HOUSING	TERMINAL	WAFER
KR1250	KR1251H	KR1250T	KR1250WF	51047		53047/53048/53261/53398
KR1251	KR1250H	KR1251T		51021	50125	50133
KR1252		KR1252T			50061/50080
KR1253		KR1253T	KR1253W		50641/50753	53780
KR1500		KR1500T	KR1500W		87421	87437/87438
KR2000		KR2000T	KR2000W		50011	53014/53015/53025
KR2007		KR2007T		51005FH	50012
KR2360	KR2360H	KR2360T
KR2500		KR2500T	KR2500W		5263

Guide of reading serie numbers:

EXEMPLE:

KR1234H: KANGRUI BRAND, PITCH 1.23mm of housing (H meansing housing; F means femail; M means gender male; T for terminal; W signfic wafer)

Need to know:

Products sell individually possble ( terminals, housing/ headers)

Sample free

sample deliver in 1-3 working days

If you do not find what you want in our extensive list of standards; pls contact us for a custom; our flexible desgin and

manufacture capabilities allow us better provide the solutions of your needs in numerious applications

We are a company located at DongGuan; province GuangDong in CHINA; a company industrial ; known as a professional manufacturer of various equal Molex/ HRS/ JAE/ AMP

passed the standard attestation of ISO9001 international quality system, comply with many certification UL of the united states , CSA of canada , TUV of GERMANY and RoHS EU stanard.

Our products cover connector housing, terminal, wafer &wiring harness assembly etc . widely applicate in computer, home appliance, industrial use, security system, cell, lap, automotive etc.

we dispose various produts; contact for furher information; OME is welcome

sample :
