产品详情：

原始地点	广东省，中国（大陆）
品牌	JST BH
型号	KR3500
类型	适配器，电源/信号连接器
应用	PCB，LED DRAHT Stecker
性别	女，男的女的
牌	JST BH
沥青	3.5毫米
材料	ROHS; SGS; UL
电路	2针
线的应用	24-26AWG
性能	耐TEM /湿度/冲击/振动
规格	固定温度/电压/电流额定值

详细信息

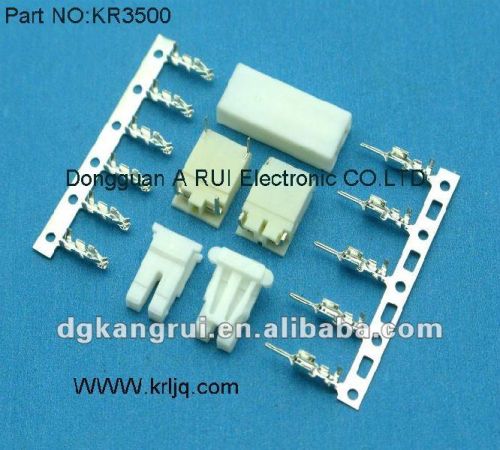

1. JST BH LED DRAHT Stecker
交付，小订单，快速L / T前2.100％的测试
3. JST BH 3.5毫米接口
4. ROHS，SGS是西装

JST BH LED DRAHT Stecker

该系列连接器JST BH 3.5mm节距非常受欢迎，经常用作显示屏/ LED / LCD或其他电子逆变器连接。 由于这个原因，许多不同类型的这一系列的现货供应。

我们还可以举出并根据您的要求制作完整的组装线。

优点：

1.专业制造商超过10年

2.用于线束，实现PCB和连接器之间的连接

3.可用2电路

4.这是3.5mm节距可接受的连接器高

5.直/直角头连接器，公母连接器。 他们将兼容的整个模具。

技术数据：

ireechnological规格
额定电流	额定电压	温度范围	绝缘电阻	耐压	接触电阻
5A AC，DC	250V AC.DC	-25C- + 85℃	1000M /分钟	1500V AC /分钟	20MΩ/最大

我们也能够为您提供完整的组装就可以使用线束的免费样品。 我们将高兴地提交你非约束力的要约。

Product Details:

Place of Origin	Guangdong, China (Mainland)
Brand Name	JST BH
Model Number	KR3500
Type	Adapter, Power/ Singal Connector
Application	PCB, LED Draht Stecker
Gender	Female, male female
brand	JST BH
pitch	3.5 mm
material	ROHS; SGS; UL
Circuits	2 pin
Wire Application	24-26AWG
Performance	Resistant Tem/ Moisture / Shock / Vibration
Spec	Fixed Temp/ Voltage/ Current Rating

Detailed Product Description

1. JST BH LED Draht Stecker
2.100% test before delivery, small order, fast L/ T
3. JST BH 3.5mm connector
4. ROHS, SGS are suit

JST BH LED Draht Stecker

The connector series JST BH 3.5mm pitch is very popular and frequently used as an inverter connector on displays/ Led/ Lcd or other electronics. For this reason there are many different types of this series available from stock.

We can also quote and produce complete assembled cables according to your requirements.

Advantage:

1. Professional Manufacturer more than 10 years

2. Used in the wire harness, realize the connect between PCB and Connector

3. Available 2 Circuits

4. It's 3.5mm pitch acceptable Conector

5. Straight/ right angle Header Connector, male female connector. They will be compliant for whole mold.

Technical Data:

ireechnological Specification
current rating	voltage rating	temperature range	insulation resistance	withstanding voltage	contact resistance
5A AC, DC	250V AC.DC	-25C-+85C	1000M/ Min	1500V AC/ minute	20mΩ/ Max

We are also able to offer you free samples of the full assembled ready to use wiring harness. We would be pleased to submit you a non-binding offer.
