8-15kw ultraviolet lights

8-15kw ultraviolet lights

8-15kw紫外线灯

议价

加入意向

紫外线

Eshine能够提供的各种等效的UV固化灯的更多类型的紫外线系统。

贴牌灯: *我们可以定制灯具,以满足您的具体要求

*功率范围: 1-15KW 40瓦特- 25千瓦/厘米

*长度: 100-2000mm

*端盖/灯座:多类型的陶瓷或金属,可以选择

*导线/终端:可以改变,以符合您的系统。

应用:木地板,家具,装饰,造纸,印刷,上光,塑料涂抹等,它是用来固化光敏油墨在半导体产业,印刷电路板行业和电子元器件行业。 也正是在光学产业和光电产业,以及紫外线粘连业界流行。

自定义样本可用。

最小起订量: 1PC

L / T : 5-7天

规格:

项目 功率(KW ) 总长度(mm) 极距(毫米) 电弧长度(mm) 瓦特/厘米
1 8.4千瓦 825 680 700 120
2 B8.4kw 800 680 700 120
3 8千瓦 1030 985 1005 80
4 8千瓦 900 785 795 100
5 9.6千瓦 1387 1247 1267 75
6 9千瓦 980 810 830 110
7 9千瓦 850 745 965 120
8 9千瓦 900 775 790 120
9 11.2千瓦 1692 1435 1455 80
10 12千瓦 1800 1640 1660 80
11 12千瓦 1692 1435 1455 80
12 15千瓦 1550 1425 1445 100

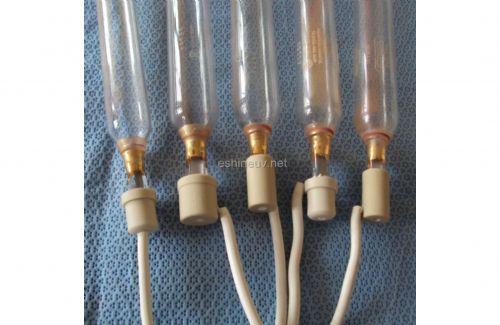

ultraviolet light

Eshine are able to offer the variety of equivalent UV curing lamps for more types of uv systems.

OEM Lamps: *We can customize lamps to meet your exact requirements

*power ranges: 1-15KW 40w-25kw/ cm

*length: 100-2000mm

*end cap/ lamp holder: more type ceramic or metal can be selected

*lead wire/ terminal: can be altered to match your systems.

Application: Wooden floor, furniture, decoration, paper-printing, glazing, plastic daubing etc. It is used to solidify photosensitive inks in semiconductor industry, printed circuit board industry and electronic components industry. It is also popular in optic industry and photoelectric industry as well as UV conglutination industry.

Customize sample is available.

MOQ: 1PC

L/ T: 5-7days

SPEC.:

Items Power (KW) Total length (mm) polar distance (mm) Arc length (mm) w/ cm
1 8.4kw 825 680 700 120
2 B8.4kw 800 680 700 120
3 8kw 1030 985 1005 80
4 8kw 900 785 795 100
5 9.6kw 1387 1247 1267 75
6 9kw 980 810 830 110
7 9kw 850 745 965 120
8 9kw 900 775 790 120
9 11.2kw 1692 1435 1455 80
10 12kw 1800 1640 1660 80
11 12kw 1692 1435 1455 80
12 15kw 1550 1425 1445 100
