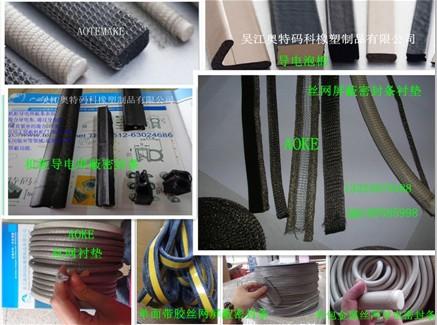

丝网屏蔽衬垫/密封条

介绍：

该产品是橡胶作为内芯，金属丝网和胶的编织在一起的一种产物。 它具有良好的屏蔽功能。 在一些情况下，单丝网屏蔽线将达到目的，但在一些特殊情况下，需要将多层金属线。 随着橡胶芯金属丝网可以达到环境密封，烟雾具有防水，防腐等作用。 通常，我们使用的内芯材料的海绵（如氯丁橡胶;硅橡胶海绵;三元乙丙橡胶和聚氨酯泡沫），但在许多实际应用中，以清除被硅橡胶和三元乙丙橡胶海绵，耐气候稳定性更好。

应用：

与所有金属丝网，用橡胶芯线网屏蔽密封条相比具有更好的复原力，因此适合于那些谁经常需要打开和关闭门或盖，同时，它的闭合力是相对低得多， 因此，即使有一些不规则的表面，也能得到很好的电磁屏蔽效果。 本产品具有环境密封功能，特别是对烟尘隔离。 如果这些产品在一些特殊环境中使用，我们将使用氟硅橡胶或者其他一些特殊的产品，以满足您的要求。 的导电性密封用橡胶芯线可以通过导电粘接剂（接触导线的点可以穿透膜）固定在槽或内部裂纹。 为了便于夹紧和铆接，圆形部分和翼所有情况下可以使用的双核心部分。

性能

频域; 蒙乃尔合金; 铝; 锡; 不锈钢

10千赫H 45 40 60 40

100 KHzH 49 45 65 44

1兆周1 H 60 60 8558

1兆赫Ë125 125 125 125

10 MHzE 120 120 120 120

100兆赫ê100100 108 100

400 MHz的第98页95 99 94

1 GHz的第85页76 78 76

10 GHz的第80页65 62 60

如果您有兴趣，请拨打咨询电话0512-63935021或发送电子邮件judge20111 @ 126。 COM，QQ：188585998 SKYPE：aotemakejdl

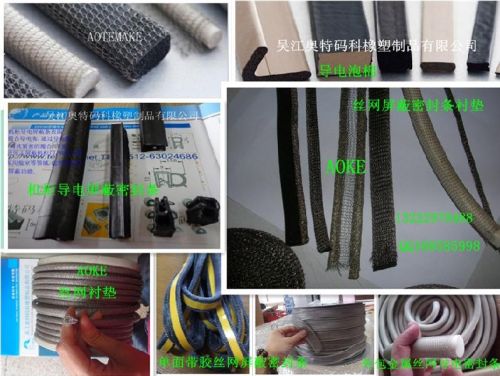

Wire mesh shielding liner/ seal strip

Introduction:

The product is the rubber as the inner core, the weaving of wire mesh and rubber together one kind of product. It has a good shielding function. In some cases, the single wire mesh shielding wire will do the trick, but in some special cases, need to multilayer metal wire. With rubber core wire mesh can achieve environmental sealing, smoke has waterproof and anticorrosion, and so on role. Normally we use the inner core material is sponge (such as chloroprene rubber; silicone rubber sponge; epdm rubber and PU foam) , but in many practical applications to clear is the silicone rubber and epdm sponge, resistant to climate stability is better.

Application:

Compared with all metal wire mesh, with rubber core wire mesh shielding sealing strip has better resilience, thus is suitable for those who often need to open and close doors or cover, at the same time, the closing force of it is relatively much lower, so even if there are some irregular surface, also can get very good EMI shielding effect. This product has the environmental sealing function, especially for smoke dust isolation. If these products are used in some special environment, we will use fluorine silicon rubber or some other special products, to meet your requirements. Conductive sealing with rubber core wire can through the conductive adhesive (the points of contact wire can penetrate the film) fixed in the groove or cracks inside. In order to facilitate clamping and riveting, with circular section and double core section of the wing all cases can be used.

Performance

Frequency field; Monel; Aluminum; Tin; Stainless

10 KHz H 45 40 60 40

100 KHzH 49 45 65 44

1 MHz H 60 60 8558

1 MHz E 125 125 125 125

10 MHzE 120 120 120 120

100 MHz E 100100 108 100

400 MHz P 98 95 99 94

1 GHz P 85 76 78 76

10 GHz P 80 65 62 60

If you are interested, please call TEL 0512-63935021 OR Email judge20111@126. com, qq: 188585998 skype: aotemakejdl
