产品功能： E1-2 / 4V。 35（提供从ITU-T G. 703标准的E1转换为2/4五，35和1个RS232接口）
产品介绍：
E1-2 / 4V35提供ITU-T G. 703标准的E1接口和2/4标准五35接口以及1个RS232数据通道之间的物理转换。 它可以提供与网络中的不同的接口设备之间的安全和无缝通信连接。 随机时间段能够在G 703来选择标准E1至构成五35通道具有N * 64K（N = 1-32）的速率。 它适合的情况下使E1信道的一部分，时隙可直接或设备发送数据只有五35输出。 数据接口的模式是DCE，可与DTE和DCE设备进行连接。 RS232通道可以具有自适应性波特率0传送异步串行数据为19200，并也可以从远程终端设备传输终端数据，如路由器。 该设备支持与Console口超级终端控制设备。 设备在本地端可自我循环，并通过RS232通道配置的远端设备的控制台端口。 应用领域：DDN电路通过E1通道延伸。

产品特点：

• 实现这一目的的设备远端设备的远程监控（双排指示灯，上排指示当地的地位，下排指示远端状态。）
• 有Console口，支持超级终端控制装置;
• 实现随机时隙的选择从31插槽，硬件;
• 提供了四种时钟类型：E1主时钟，E1线路时钟，五，35主时钟，五35外部时钟;
• 提供3种环回功能，即E1自我循环在本端，五35自我循环在本端和V 35被责令自环的远端;
• 具有伪随机码检测的功能; 方便电路的断开; 且可用于作为错误代码的仪器;
• E1支持N * 64k的速率（N = 1-32），它可以从64K调节到2048K;
• 支持同时75欧姆非平衡和120欧姆平衡阻抗;
• V. 35接口支持热插​​拔和DTE和DCE的互连;
• RS232通道可以具有自适应性波特率为300至19200传送异步串行数据;
• 网管接口采用SNMP

技术参数：
E1接口：
接口标准：符合G. 703标准
接口速率：N¡Á64Kbps，N：1〜32
振动特性：满足G. 742和G. 823标准
输送能力：1 * E1
时钟类型：内部时钟，线路时钟
连接器：BNC（75欧姆），RJ45（120欧姆）
接口阻抗：75欧姆（非平衡），120欧姆（平衡）
五，35接口：
接口速度：Nx64K
连接器：DB25到V. 35
RS232接口：
接口速率：0-19.2Kbit /秒
控制台端口：
控制台端口速度：19.2Kbit的/秒
工作条件：
输入电压：AC22​​0V; AC 110V; DC-48V; DC + 24V
功耗：（= 5W
工作温度：0℃〜50℃
储存温度：-40℃〜+ 70℃
相对湿度：95％

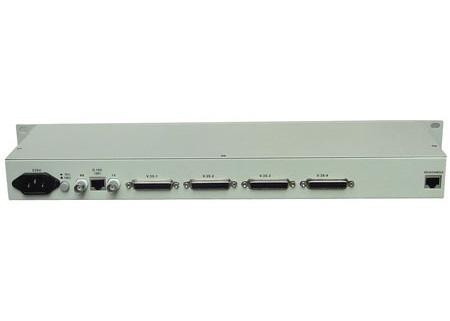

Product function: E1-2/4V. 35 (providing conversion from ITU-T G. 703 standard E1 to 2/4 V. 35 and 1 RS232 interface)
Product introduction:
E1-2/4V35 provides physical conversion between ITU-T G. 703 standard E1 interface and 2/4 standard V. 35 interfaces as well as one RS232 data channel. It can provide safe and seamless communication connection between equipments with different interfaces in the network. Random time slot can be chosen in G. 703 standard E1 to compose V. 35 channel with the rate of N*64K (N=1-32) . It is suitable for the case that part slot of E1 channel can be used and the equipment transmitting data only has V. 35 output. The mode of data interface is DCE, which can be connected with DTE or DCE equipment. RS232 channel can transfer asynchronous serial data with self-adaptable baud rate of 0 to 19200 and can also transfer Console data from remote-end equipment such as Router. The equipment supports super terminal control device with Console port. Equipment at local end can be self looped and configure console port of remote-end device through RS232 channel. Application field: DDN circuit extends through E1 channel.

Features:

• realizes long-distance monitoring of this end equipment to the far-end equipment (two-row indicating lamp, upper row indicating local status, lower row indicating far-end status.)
• has Console port and supports super terminal control device;
• realizes random time slot choice from 31 slots with hardware;
• provides four clock types: E1 master clock, E1 line clock, V. 35 master clock, V. 35 external clock;
• provides 3 kinds of loop-return function, namely E1 self-looping at local end, V. 35 self-looping at local end, and V. 35 being ordered to self-loop at remote end;
• has the function of pseudo-random code testing; convenient for opening of the circuit; and can be used as an error code instrument;
• E1 supports rate of N*64k (N=1-32) , which can be regulated from 64K to 2048K;
• supports 75ohm unbalanced and 120ohm balanced impedance at the same time;
• V. 35 interface supports hot plugging and DTE and DCE interconnection;
• RS232 channel can transfer asynchronous serial data with self-adaptable baud rate of 300 to 19200;
• network management interface uses SNMP

Specifications:
E1 interface:
Interface standard: Conforms to G. 703 standard
Interface rate: N¡Á64Kbps, N: 1~32
Vibration characteristic: Satisfies G. 742 and G. 823 standard
Transmission capacity: 1*E1
Clock type: internal-clock, route clock
Connecter: BNC (75 ohm) , RJ45 (120 ohm)
Interface impedance: 75ohm (non- balanced) , 120ohm (balanced)
V. 35 interface:
Interface speed: Nx64K
Connector: DB25 to V. 35
RS232 interface:
Interface rate: 0-19.2Kbit/ s
Console port:
Console port speed: 19.2Kbit/ s
Working condition:
Input voltage: AC220V; AC 110V; DC-48V; DC+24V
Power consumption: (=5W
Operating temperature: 0C ~ 50C
Storing temperature: -40C ~ +70C
Relative humidity: 95 %
