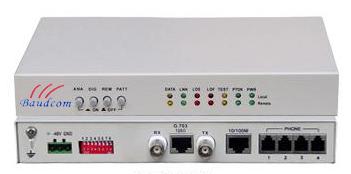

2 Ethernet +1 voice POTS(FXO\FXS)+4 RS232 over E1\G.703 multiplexer

2 Ethernet +1 voice POTS(FXO\FXS)+4 RS232 over E1\G.703 multiplexer

2个以太网+1 POTS语音（FXO / FXS）+4 RS232超过E1 / G.703多路复用器

议价

加入意向

1功能
该 1 POTS语音（FXO / FXS）在E1 / G. 703多路复用器 可以提供 2 * 10（100）BaseT的+ 1 *语音+4 RS232超过E1转换器 。 该 2 POTS语音（FXO / FXS）在E1 / G. 703多路复用器 实现电话线路的通过E1通道长距离延伸。 它是体积小，成本低和非常适合于成本敏感的桥接应用，或者作为空间变局域网基础设施，装置或上述装置的一个扩展。

语音POTS（FXO / FXS）在E1 / G. 703多路复用器 a utomatically连接到LAN与其不间断学习的MAC地址和所述地址作为帧中继局域网的另一个目的。 所述8voice和以太网到E1接口转换器广泛用于LAN和WAN联网，控制等，并且特别适用于网络用户到网络的用户与单个E1通道存取数据和语音的同时。

2，产品特点

  • 实现的本地设备与远程设备的远程监控;
  • 提供2通道以太网接口，10M / 100M，全半双工自动适应，支持VLAN£。
  • 以太网接口支持AUTO-MDIX（跨越和直通自我适应）£。
  • 2以太网接口支持通道独立的功能，可以根据标签中设置VLAN
  • 提供两种时钟类型：E1主时钟，E1线路时钟;
  • 提供3种环回功能; 即E1自我循环在本端; 以太网自我循环在本端; 责令自环的远端;
  • 实现了自动速率设置的本地设备与远程设备£»
  • 具有伪随机码检测的功能; 方便电路的断开; 且可用于作为错误代码的仪器;
  • 以太网支持N * 64k的速率（N = 1-32），它可以从64K调节到1098K;
  • 支持同时75欧姆非平衡和120欧姆平衡阻抗;
  • 提供以太网自动复位功能，运行更稳定£»
  • 各种以太网数据表明功能，它指示数据传输状态及时;
  • 提供1voice渠道，支持呼叫指示;
  • 语音FXO接口（FXS），FXO连接到PBX和FXS连接到手机;
  • 支持4线E＆M
  • RS232通道可以具有自适应性波特率为300〜115.200传送异步串行数据;


3接口
 E1接口
接口标准：符合G. 703标准
接口速率：2048K

代码：HDB3
接口阻抗：75欧姆（不平衡），120欧姆（平衡）
连接器：BNC（75欧姆），RJ45（120欧姆）
振动特性：满足G. 742和G. 823标准
时钟类型：内部时钟，线路时钟

10 / 100Base-T以太网端口
价格：10M / 100M，全/半双工自动适应
协议：支持IEEE 802.3，IEEE 802.1Q（VLAN）
MAC地址表：4096的MAC地址
以太网总内存大小：64MBits SDRAM
物理接口：RJ45，支持AUTO-MDIX（跨越和直通自我适应）

语音端口
FXS电话端口
 环电压：75V
环频率：25HZ
两线路输入阻抗：600欧姆（吊客）
浪费：40分贝
FXO交换机端口
 环测试电压：35V
环测试频率：17HZ-60HZ
两线路输入阻抗：600欧姆（吊客）
浪费：40分贝

RS232口
价格：300〜115.2Kbps的自动适应（异步）
接口特性：满足ITU-T V. 24标准
接口：RJ45

4维
独立：483（L），X140（W）X50（高）mm

5工作条件
输入电压：AC180V〜240V; DC-48V; DC + 24V
消耗功率：5W
工作温度：0〜50degree

储存温度：-40〜+ 70degree
相对湿度：95％

1 Function
The 1 voice POTS (FXO/ FXS) over E1/ G. 703 multiplexer can provides 2*10 (100) BaseT+1*voice +4 RS232 over E1 converter. The 2 voice POTS (FXO/ FXS) over E1/ G. 703 multiplexer realize the long-distance extend of telephone line through E1 channel. It is small size, low cost and very appropriate to the cost-sensitive bridging applications, or as spaces become an extension of the LAN infrastructure, devices or above devices.

The voice POTS (FXO/ FXS) over E1/ G. 703 multiplexer can automatically connected to the LAN with its uninterrupted learning the MAC address and the address as another purpose of the frame relay LAN. The 8voice and ethernet to E1 interface converters widely used for LAN and Wan networking, control, and so on, and particularly applicable to the network users to the network users with a single E1 channel access data and voice at the same time.

2 Features

  • realizes long-distance monitoring of local device to the remote device ;
  • provides 2 channels Ethernet ports, 10M/ 100M, full half duplex self adapt, support VLAN£.
  • The Ethernet interface supports AUTO-MDIX ( cross over and straight through self adapt) £.
  • 2 Ethernet interfaces support channel separate function, can set VLAN based on TAG
  • provides two clock types: E1 master clock, E1 line clock;
  • provides 3 kinds of loop-return function; namely E1 self-looping at local end; Ethernet self-looping at local end; ordered to self-loop at remote end;
  • realize the automatically rate set of local device to remote device£»
  • has the function of pseudo-random code testing; convenient for opening of the circuit; and can be used as an error code instrument;
  • Ethernet supports rate of N*64k (N=1-32) , which can be regulated from 64K to 1098K;
  • supports 75ohm unbalanced and 120ohm balanced impedance at the same time;
  • Provide Ethernet auto reset function, run more stably£»
  • various Ethernet data indicate functions, which indicate data transmission status timely;
  • Provides 1voice channels, support calling indication;
  • Voice connector FXO (FXS) , FXO connect to PBX and FXS connect to phone;
  • support 4 wire E&M
  • RS232 channel can transfer asynchronous serial data with self-adaptable baud rate of 300 to 115.200;


3 interface
E1 interface
Interface standard: Conforms to G. 703 standard
Interface rate: 2048k

Code: HDB3
Interface impedance: 75ohm (unbalanced) , 120ohm (balanced)
Connecter: BNC (75ohm¸) , RJ45 (120 ohm)
Vibration characteristic: Satisfies G. 742 and G. 823 standard
Clock type: internal-clock, line clock

10/100Base-T ethernet port
Rate: 10M/ 100M, full/ half duplex self adapt
Protocol: support IEEE 802.3, IEEE 802.1Q (VLAN)
MAC address table: 4096 MAC addresses
Ethernet Total Memory Sizes: 64MBits SDRAM
Physical interface: RJ45, support AUTO-MDIX (cross over and straight through self adapt)

Voice port
FXS phone port
 Ring voltage: 75V
Ring frequency: 25HZ
Two line input impedance: 600ohm (hanging off)
Wastage: 40 db
FXO switch port
 Ring test voltage: 35V
Ring test frequency: 17HZ-60HZ
Two line input impedance: 600ohm (hanging-off)
Wastage: 40 db

RS232 port
Rate: 300~­115.2Kbps auto-adaptable (Asynchronous)
Interface characteristic: satisfies ITU-T V. 24 standard
Connector: RJ45

4 dimension
standalone: 483 (L) X140 (W) X50 (H) mm

5 Working Condition
Input voltage: AC180V ~ 240V ; DC-48V; DC+24V
Power consumption: 5W
Operating temperature: 0~ 50degree

Storing temperature: -­40 ~ +70degree
Relative humidity: 95 %
