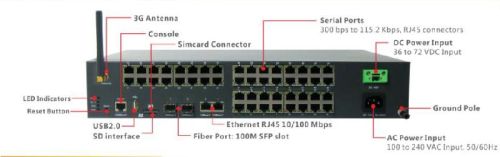

16\32\48 Channel Serial RS232\RS485 to Ethernet\IP converter
16/32/48通道串行RS232 / RS485到以太网/ IP转换器
议价
加入意向概观
该 Baudcom 16/32/48通道串行RS232 / RS485到以太网/ IP转换器 是最好的选择简单 串口转以太网 连接应用。 在一个紧凑的尺寸提供具有成本效益的解决方案，串行服务器提供了灵活性使它非常适用于需要在以太网上正宗的串行连接应用。
在16/32/48通道串口转以太网/ IP服务器可以连接16/32/48串口设备连接到以太网/ IP网络，它支持RS232 / RS485串行标准，可广泛应用在不同领域的如PLC 器，传感器，仪表，电动机，驱动器，条形码阅读器，和操作员显示。 在8路串口转以太网服务器是超瘦，坚固耐用，和用户友好的，制作简单，可靠的串口转以太网解决方案成为可能。
特征
1. 4KV / 2KA串行端口增强浪涌保护
2.内置15 KV ESD保护所有串口信号
3.基于Web的配置
4.支持TCP服务器/客户端的TCP / UDP /虚拟COM套接字模式
5.它具有结构紧凑，采用高性能处理器和大容量内存;
6.设备管理器软件进行集中管理和控制;
7. WEB浏览器对设备进行远程设置;
8.它可以支持8路RS232或RS485
9.以太网支持10M / 100M，全双工/半双工自适应模式;
10.可以选择WIFI或3G传输
应用：
通过IP网络连接的串口设备到服务器的应用程序
通过IP网络管理的远程串行控制台端口
调制解调器的应用程序的虚拟调制解调器功能
| 以太网接口 10 / 100Mbps的速率 全/半双工自动协商 协议：支持IEEE 802.3 RJ45连接器 电磁隔离保护：1.5 KV内置 |
| 串行接口 软件和硬件流控制 接线端子（每个端口3个引脚） TX和RX活动指标
|
所有信号15 kV ESD保护（待定）
拉动高/低电阻RS-485：10 K |。 串口参数
数据位：5,6; 7; 8
停止位：1，2
奇偶校验：无; 甚至; 奇; 空间; 标记
波特率：300 bps至115.2 Kbps的
串行信号
RS-232：TXD引脚; RxD端; GND
RS-422：TX +; TX-; RX +; RX-; GND
RS-485-2w：数据+; 数据-; GND
软件
网络协议：ICMP，IP，TCP，UDP，HTTP，ARP。
配置选项：内置的WEB服务器。
Windows虚拟COM驱动程序：在Windows 2000 / XP / 2003 / VISTA / 2008/7
尺寸：
183 x约88 x30毫米
环境限制
工作温度：0〜50度
储存温度：-40至85degree
环境相对湿度：5％至95％（无冷凝）
电源要求
输入电压：
5 VDC; 24VDC; -48VDC; 110VAC和220VAC
功耗：（5瓦特
Overview
The Baudcom 16/32/48 channel serial RS232/ RS485 to ethernet/ IP converter is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the serial server offers flexibility making it ideal for applications that require an authentic serial connection across an Ethernet network.
The 16/32/48 channel serial to ethernet/ IP servers can connect 16/32/48 port serial devices to an Ethernet/ IP network, It support RS232/ RS485 Serial Standards, It can be widely applied in different fields for such as PLCs, sensors, meters, motors, drives, barcode readers, and operator displays. The 8channel serial to ethernet servers are ultra-lean, ruggedized, and user friendly, making simple and reliable serial to Ethernet solutions possible.
Features
1. 4KV/ 2KA enhanced surge protection for serial ports
2. Built-in 15 KV ESD protection for all serial signals
3. Web-based configuration
4. Support TCP server/ TCP client/ UDP/ Virtual COM Socket modes
5. It has a compact structure, adopting high-performance processor and high-capacity memory;
6. Device Manager software for centralized management and control;
7. WEB browser for remote setup of the equipment;
8. It can support 8channel RS232 or RS485
9. Ethernet supports 10M/ 100M, full-duplex / half-duplex and adaptive modes;
10. can choose WIFI or 3G for transmission
Application:
Connect serial devices to server based applications over an IP network
Manage remote serial console ports over an IP network
Virtual modem capability for modem-based applications
| Ethernet Interface 10/100Mbps rate full/ duplex auto-negotiation Protocol: Support IEEE 802.3 RJ45 connector Magnetic Isolation Protection: 1.5 KV built-in |
| Serial interface Software and hardware flow control Terminal Block (3 pins per port) TX and RX activity indicators
|
15 KV ESD protection for all signals (Pending)
Pull High/ Low Resistor for RS-485: 10 K ¦¸.Serial Communication Parameters
Data Bits: 5, 6; 7; 8
Stop Bits: 1, 2
Parity: None; Even; Odd; Space; Mark
Baudrate: 300 bps to 115.2 Kbps
Serial Signals
RS-232: TxD; RxD; GND
RS-422: Tx+; Tx-; Rx+; Rx-; GND
RS-485-2w: Data+; Data-; GND
Software
Network Protocols: ICMP, IP, TCP, UDP, HTTP, ARP.
Configuration Options: Built-in WEB server.
Windows Virtual COM Drivers: Windows 2000/ XP/ 2003/ Vista/ 2008/7
Dimensions:
183 x 88 x 30mm
Environmental Limits
Operating Temperature: 0 to 50 degree
Storage Temperature: -40 to 85degree
Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
Input Voltage:
5 VDC; 24VDC; -48VDC; 110VAC and 220VAC
Power Consumption: (5 watts
