High-quality LED Panel Light 300x1200 40W CE RoHS Approved
高品质的LED面板灯300x1200 40W CE RoHS认证
LED面板灯300x1200 40W CE RoHS认证
1.功率：40W
2，工作电压：100-240VAC
3.高内凹SMD3014，3200lm
4.发光颜色：暖白/自然白/冷白
5.尺寸：300X1200X14mm
6.铝合金与PMMA导光板
7.表面颜色：银色，白色或蓝色
8.安装方法：嵌入式
9，使用寿命长：大于30，000H
10.显色指数：？ 75
11.工作湿度：10-90％RH
12.保修：3年
LED面板灯产品特点：
1.防尘，防眩光。
2.高效率，节能降耗。
3，外形美观，超薄，仅为14mm。
4.安装方便，与吊顶龙骨完美结合。
LED面板灯参数：
| PART NO。 | LED光源 | 流明 | 功率 | 工作电压 | 工作温度 | 发光颜色 | 尺寸 |
| PA3030-8C-2C | SMD3014 | 500LM | 8W | AC100-240V | -20-45?C | WW / NW / CW | 300x300x14mm |
| PA3030-11C-2C | SMD3014 | 880lm | 11W | AC100-240V | -20-45?C | WW / NW / CW | 300x300x14mm |
| PA3030-15C-2C | SMD3014 | 1200lm | 15W | AC100-240V | -20-45?C | WW / NW / CW | 300x300x14mm |
| PA3060-20C-2C | SMD3014 | 1600lm | 20W | AC100-240V | -20-45?C | WW / NW / CW | 300x600x14mm |
| PA6060-32C-4C | SMD3014 | 2800lm | 32W | AC100-240V | -20-45?C | WW / NW / CW | 600x600x14mm |
| PA6060-40C-4C | SMD3014 | 3200lm | 40W | AC100-240V | -20-45?C | WW / NW / CW | 600x600x14mm |
| PA6060-52C-4C | SMD3014 | 4200lm | 52W | AC100-240V | -20-45?C | WW / NW / CW | 600x600x14mm |
| PA30120-40C-2C | SMD3014 | 3200lm | 40W | AC100-240V | -20-45?C | WW / NW / CW | 300x1200x14mm |
| PA60120-75C-4C | SMD3014 | 6000lm | 75W | AC100-240V | -20-45?C | WW / NW / CW | 600x1200x14mm |
LED面板灯应用：
LED面板灯广泛应用于卫生间，厨房，家庭，酒店，会议室，办公室，学校，超市，住宅楼等。
温馨提示：在提供各种尺寸的LED面板灯，如300X300 LED面板灯，300X600 LED面板灯，600X600 LED面板灯，300X1200 LED面板灯，600X1200 LED面板灯等，如果你有具体的参数和尺寸，定制 是可用的。 任何兴趣，请随时与我们联系。 我们会尽我们最大的努力帮助您！

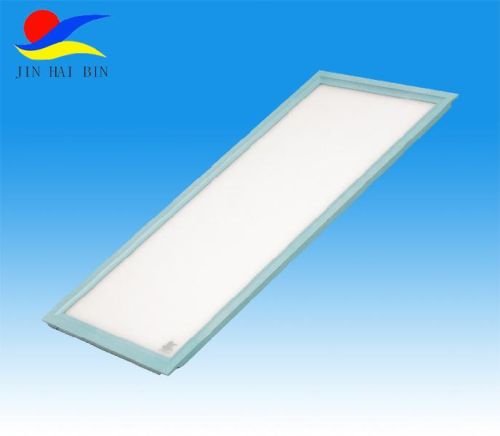

LED Panel Light 300x1200 40W CE RoHS Approved
1. Power: 40W
2. Working Voltage: 100-240VAC
3. Highly bight SMD3014, 3200lm
4. Emitting Color: Warm white/ Natural white/ Cool white
5. Dimension: 300X1200X14mm

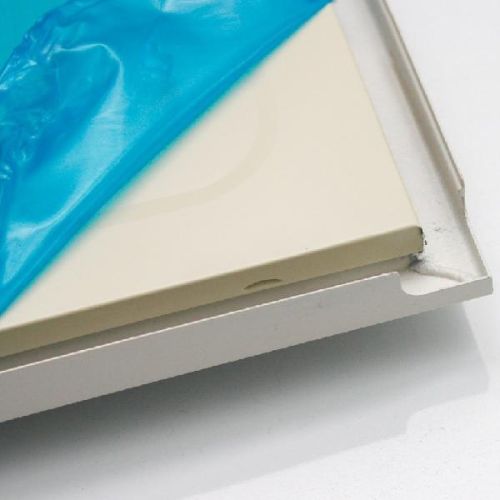

6. Aluminum alloy and PMMA light guide
7. Surface Color: Silver, White or Blue
8. Installation Method: Embeded
9. Long lifetime: More than 30, 000H
10. Color Rendering Index: ? 75
11. Working Humidity: 10-90%RH
12. Warranty: 3years
LED Panel Light Features:
1. Dustproof and anti-glare.
2. High efficiency and energy saving.
3. Beautiful appearance, ultra-thin, only 14mm.

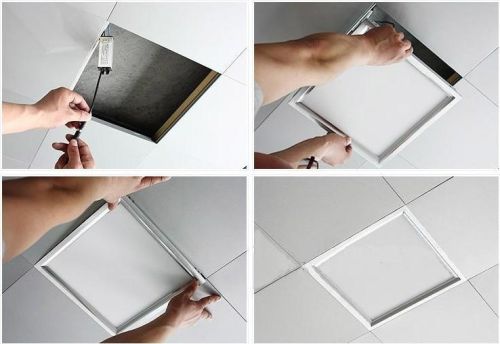

4. Easy installation, perfect combination with ceiling keel.
LED Panel Light Parameter:
| Part NO. | LED Source | Lumen | Power | Working Voltage | Working Temperature | Emitting Color | Dimension |
| PA3030-8C-2C | SMD3014 | 500lm | 8W | AC100-240V | -20-45?C | WW/ NW/ CW | 300x300x14mm |
| PA3030-11C-2C | SMD3014 | 880lm | 11W | AC100-240V | -20-45?C | WW/ NW/ CW | 300x300x14mm |
| PA3030-15C-2C | SMD3014 | 1200lm | 15W | AC100-240V | -20-45?C | WW/ NW/ CW | 300x300x14mm |
| PA3060-20C-2C | SMD3014 | 1600lm | 20W | AC100-240V | -20-45?C | WW/ NW/ CW | 300x600x14mm |
| PA6060-32C-4C | SMD3014 | 2800lm | 32W | AC100-240V | -20-45?C | WW/ NW/ CW | 600x600x14mm |
| PA6060-40C-4C | SMD3014 | 3200lm | 40W | AC100-240V | -20-45?C | WW/ NW/ CW | 600x600x14mm |
| PA6060-52C-4C | SMD3014 | 4200lm | 52W | AC100-240V | -20-45?C | WW/ NW/ CW | 600x600x14mm |
| PA30120-40C-2C | SMD3014 | 3200lm | 40W | AC100-240V | -20-45?C | WW/ NW/ CW | 300x1200x14mm |
| PA60120-75C-4C | SMD3014 | 6000lm | 75W | AC100-240V | -20-45?C | WW/ NW/ CW | 600x1200x14mm |
LED Panel Light Application:

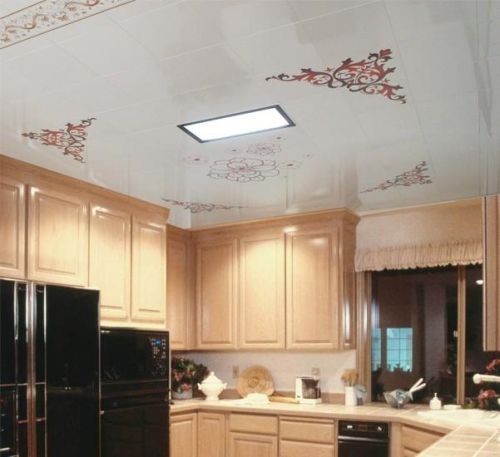

LED Panel Light is widely used in washroom, kitchen, house, hotels, conference rooms, offices, schools, supermarkets, residential buildings etc.
Warm Tips: Various sizes of LED Panel Light are supplied, such as 300X300 LED Panel Light, 300X600 LED Panel Light, 600X600 LED Panel Light, 300X1200 LED Panel Light, 600X1200 LED Panel Light etc. And If you have specific parameters and dimensions, customization is available. Any interest, please feel free to contact us. We'll do our best to help you!
