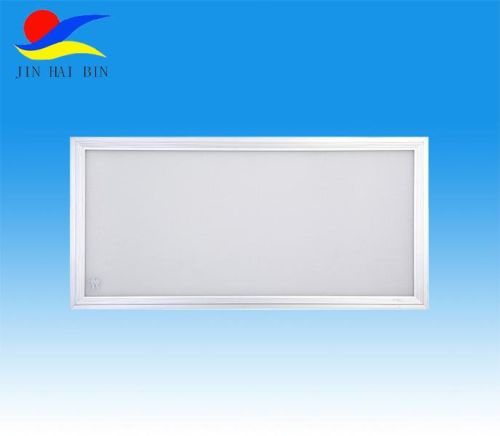

Epistar SMD3014 LED Panel Light 30x60 20W CE RoHS Approved

Epistar SMD3014 LED Panel Light 30x60 20W CE RoHS Approved

晶元SMD3014 LED面板灯30x60 20W CE RoHS认证

29 USD

加入意向

LED面板Light30x60 20W CE RoHS认证


1.功率：20W

2，工作电压：100-240VAC

3.高内凹SMD3014，1600lm

4.发光颜色：暖白/自然白/冷白

5.尺寸：300X600X14mm

6.铝合金与PMMA导光板

7.表面颜色：银色

8.安装方法：嵌入式

9，使用寿命长：大于30，000H

10.显色指数：？ 75

11.工作湿度：10-90％RH

12.保修：3年


产品特点：


1.防尘，防眩光。

2.高效率，节能降耗。

3，外形美观，超薄，仅为1​​4mm。

4.安装方便，与吊顶龙骨完美结合。


参数：


PART NO。 LED光源 流明 功率 工作电压 工作温度 发光颜色 尺寸
PB3060-20X SMD3014 1600lm20W AC100-240V-20-45?C WW / NW / CW 300x600x14mm
PB6060-32X SMD3014 2800lm32W AC100-240V-20-45?C WW / NW / CW 600x600x14mm
PB6060-4X SMD3014 3200lm40W AC100-240V-20-45?C WW / NW / CW 600x600x14mm
PB6060-52X SMD3014 4200lm52W AC100-240V-20-45?C WW / NW / CW 600x600x14mm
PB30120-40X SMD3014 3200lm40W AC100-240V-20-45?C WW / NW / CW 300x1200x14mm
PB60120-60X SMD3014 4800lm60W AC100-240V-20-45?C WW / NW / CW 600x1200x14mm
PB60120-75X SMD3014 6000lm75W AC100-240V-20-45?C WW / NW / CW 600x1200x14mm

应用：


LED面板灯广泛应用于酒店，会议室，办公室，学校，超市，住宅楼等。


温馨提示：各种尺寸LED面板灯的供给，如300X300，300X600，600X600，300X1200，600X1200等，如果你有具体的参数和尺寸，定制可用。 任何兴趣，请随时与我们联系。 我们会尽我们最大的努力帮助您！

LED Panel Light30x60 20W CE RoHS Approved


1. Power: 20W

2. Working Voltage: 100-240VAC

3. Highly bight SMD3014, 1600lm

4. Emitting Color: Warm white/ Natural white/ Cool white

5. Dimension: 300X600X14mm

6. Aluminum alloy and PMMA light guide

7. Surface Color: Silver

8. Installation Method: Embeded

9. Long lifetime: More than 30, 000H

10. Color Rendering Index: ? 75

11. Working Humidity: 10-90%RH

12. Warranty: 3years


Features:


1. Dustproof and anti-glare.

2. High efficiency and energy saving.

3. Beautiful appearance, ultra-thin, only 14mm.

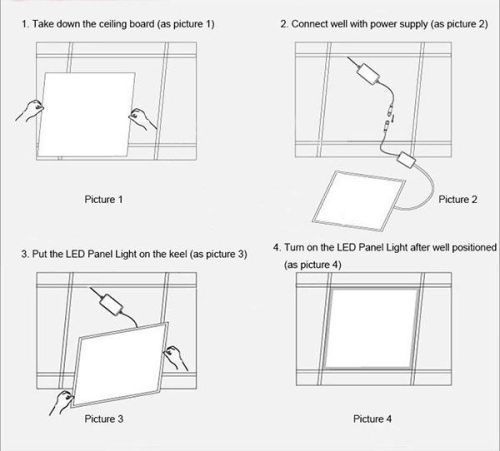

4. Easy installation, perfect combination with ceiling keel.


Parameter:


Part NO.LED SourceLumenPowerWorking VoltageWorking TemperatureEmitting ColorDimension
PB3060-20XSMD30141600lm20WAC100-240V-20-45?CWW/ NW/ CW300x600x14mm
PB6060-32XSMD30142800lm32WAC100-240V-20-45?CWW/ NW/ CW600x600x14mm
PB6060-4XSMD30143200lm40WAC100-240V-20-45?CWW/ NW/ CW600x600x14mm
PB6060-52X SMD30144200lm52WAC100-240V-20-45?CWW/ NW/ CW600x600x14mm
PB30120-40XSMD30143200lm40WAC100-240V-20-45?CWW/ NW/ CW300x1200x14mm
PB60120-60XSMD30144800lm60WAC100-240V-20-45?CWW/ NW/ CW600x1200x14mm
PB60120-75XSMD30146000lm75WAC100-240V-20-45?CWW/ NW/ CW600x1200x14mm

Application:

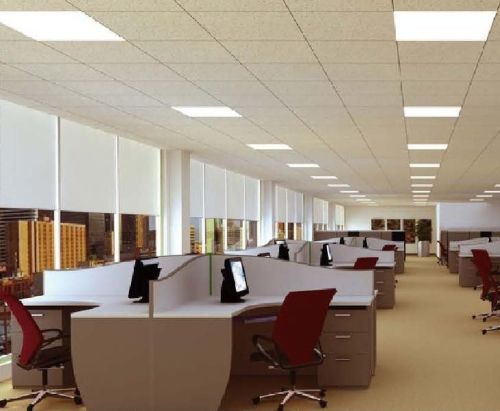

LED Panel Light is widely used in hotels, conference rooms, offices, schools, supermarkets, residential buildings etc.


Warm Tips: Various sizes of LED Panel Light are supplied, such as 300X300, 300X600, 600X600, 300X1200, 600X1200 etc. And If you have specific parameters and dimensions, customization is available. Any interest, please feel free to contact us. We'll do our best to help you!
