VAH系列空气处理机组是奇威特开发的优质，高效的产品，它广泛应用于中央空调系统。 它是由特殊防冷桥铝合金框架，优良的品质面板，翅片式换热器，低噪音离心风扇电机，过滤器等，主要的特点，是影响大小，耗电少，噪音小，便于安装和维护， 广泛应用于酒店，商场建筑，餐厅和各种工业与民用建筑。
VAH系列从1500立方米/ h到25000立方米/ h的归为每空气流速，该模型可以根据所需的空气流量和ESP来选择，它有三种类型的安装，水平，垂直和悬挂式的。 标准电源为380V / 3PH / 50Hz的，请注明电源，如果不是标准之一。
VAH单元由抽吸空气引入口，热水不应高于65℃的加热，水的质量要好，并具有过滤器，在进水口。
单位不应承担风道和/或水管的重量。
变风量控制和电力保护装置是可选的。
不同的ESP要求可根据具体要求进行定制。
一定的空间应保持周围的装置进行维护和过滤除去，和维护孔应保持在暂停的安装单元。
空气供给方法可以定制，标准的单位将如无特殊要求提供。
定制单位将根据要求提供。

产品特点

1.无冷桥设计
无冷桥实现与意大利的设计，消除了造成冷凝水的装修损坏的潜力。
2.低漏风率
接触的是靠近面板和mazelike铝框之间用密封条，空气泄漏比几乎为零。
3.良好的绝缘性能
该面板是由聚氨酯或30毫米厚度的聚苯乙烯，具有0.4mm的外部和内部的钢面板。 它具有良好的绝缘性能，无冷凝水在任何环境条件。

4.可变气流调整
可选的变风量调整为更好的舒适性和节能。
5.低噪音
采用了经过严格的动，静平衡试验质量好着DI弯离心风机电机，运行平稳，噪音低。 风扇电机轴承隐蔽免维护球轴承。
6.易于组装或拆卸
VAH系列采用铝合金框架结构，并插上铝铸造边角，具有良好的机械强度，重量轻，耐腐蚀经久耐用，可以很容易地组装或拆卸现场。
7.可洗前置过滤器是G4型，取得了良好的尼龙材料。
8.线圈由CAD /线圈的软件设计，制作铜管铝翅片的，具有良好的热交换性能和更低的空气阻力与大散热片的空间。
9.特制干水盘，这是稍微倾斜的排水管边，没有就可以了积水，保持干净的环境。
排水盘表面喷塑，保温用高倍率发泡聚苯乙烯，不用担心冷凝水或漏水。

欲了解更多信息，请联络

欧阳诚

奇威特空调有限公司

专业从事研发，生产，销售和服务：

“风冷冷水机组，水冷冷水机组，热泵，屋顶包装机，AHU / FCU

太阳能锅炉

太阳能吸收式制冷机组及热泵“

电子邮件：oyc@vicot.com.cn

www.vicot.com.cn

Skype的： Zaoranzi

联系电话0086 531 82355568

传真0086 531 82357911

移动/ Viber的/ 探戈舞/ WhatsApp的/ 微信/ Kakao通话: 0086 13708931818

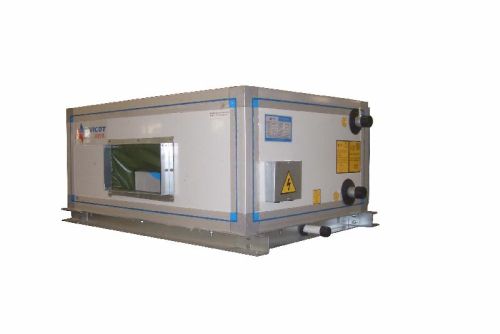

VAH series air handling unit is a high quality and efficiency product developed by Vicot, it's widely applied for central air conditioning system. It's made of special anti-cold bridge aluminum frame, good quality panel, finned heat exchanger, low noise centrifugal fan motor, filter etc. , main features of which are impact size, less power consumption, low noise and convenient for installation and maintenance, widely used in hotel, shopping building, restaurant and various industrial and civil building.
VAH series is classified as per air flow rate from 1500m3/ h to 25000m3/ h, the model can be selected according to the required air flow rate and ESP, it has three types of installation, horizontal, vertical and suspended type. Standard power supply is 380V/ 3PH/ 50Hz, please specify the power supply if not the standard one.
VAH unit intakes air by suction, the hot water should not be higher than 65°C for heating, water quality should be good, and have filter at water inlet.
The unit should not bear the weight of air duct and/ or water piping.
Variable air flow controller and electricity protection device is optional.
Different ESP requirement can be customized upon specific request.
Certain space should be kept around the unit for maintenance and filter removal, and maintenance hole should be kept over the suspended installation unit.
The air supply method can be customized, the standard unit will be provided if no special request.
Customized unit will be provided upon request.

Product feature

1. No cold bridge design
No cold bridge is realized with Italy design, eliminates the potentiality of decoration damage caused by condensed water.
2. Low air leakage ratio
The contact is close between panel and mazelike aluminum frame with the sealing strip, the air leakage ratio is almost zero.
3. Good insulation performance
The panel is made of polyurethane or polystyrene of 30mm thickness, with exterior and interior steel panel of 0.4mm. It's has good insulation performance and no condensed water in any ambient condition.

4. Variable air flow adjustment
Optional variable air flow adjustment for better comfortableness and energy saving.
5. Low noise
Adopts good quality forward DI curved centrifugal fan motor that passed strict dynamic and static balance test, operation is stable and noise is low. Fan motor bearing is concealed maintenance free ball bearing.
6. Easy to assemble or dismantle
VAH series uses aluminum frame structure and plug in aluminum cast corner, has good mechanical strength, light weight and corrosion durable, it's easy to assemble or dismantle at site.
7. The washable preliminary filter is of G4 type, made of good nylon material.
8. The coil is designed by CAD/ Coil software, made of copper tube and aluminum fin, has good heat exchange performance and less air resistance with large fin space.
9. Specially made dry drain pan, it's slightly inclined to the drain pipe side, no water accumulated on it, keeps clean environment.
The drain pan surface is plastic sprayed, and insulated with high magnification expanded polystyrene, no worry about condensed water or water leakage.
