VMA（N）L（奇威特模块化螺杆机组）是新一代由奇威特开发的模块化单元。 这个单元是节能，使用方便，其具有逆循环除霜自动，双步骤自动防冷冻功能，内置自诊断的系统，并且由微型计算机控制的。 适用于宾馆，别墅，医院，电影院，体育场馆，娱乐，写字楼，工厂等。 它也可以为INDUSTRIA目的提供冷冻水或中度热水。

该装置适用于outspace安装，如屋顶，地板和门廊，不放过锅炉房和特价房，降低建设项目的投资。 而且无需冷却塔，冷却水泵，本单位大大节约了水资源。 单位为易于安装，管理和维护。

产品特点：

独特的设计，投资少

模块化设计适用于更大的应用领域，自动能量调节输出根据实际负载要求。

多并联，多步骤，先顺序，最大限度地降低起动电流，良好的电打滑。
全自动控制
本机的操作和管理均由微电脑系统控制。 这是很容易操作，使得专业管理人员是不必要的。 单元打开/关闭压缩机自动根据负载，使得单位上的最经济的，节能的角度进行操作。 并有完善的保护功能，如错误的自我检测系统，平衡压缩机磨损自动，冬天自动防冻。

出现

在M形空气冷却冷凝器模块化螺杆式，这是ingenius，美观，压实。 本机看起来清晰和细化合理设计的组件和浴缸的手段。
该装置是在井防腐，以便它可以放置在室外空间，无需特别的房间。
智能除霜

每个电路是分开的其他在内部冷却系统，并且控制系统的操作独立地。 因此，它被启动时分离。 根据不同的气候条件（温度，湿度），设置参数进行自动除霜，除霜是彻底节能，提高加热效率。 和解冻没有显著影响到室内空调温度。

智能防冻

本机采用防冰冻全自动双级防护，防止供水系统被破坏，一旦制冷剂冻结的冬天。 抗冷冻保护可以全自动地辞去当水温根据加热或泵的操作增加。

操作方便

每个单元都经过严格的测试。 和保护参数被设定。 所以，你会只接电源和水管在安装时，当你使用它操作电脑控制器。

管道长度没有限制

管道长度刚好有多大影响的一个能力，水泵只较长管道的变化。

安装简单。
没有现场的制冷剂充，重量轻，体积小，便于操作。

高效壳管式换热器蒸发器

1. 传热效率高，重量轻，易于清洗。

   2，良好的抗腐蚀性能。

   3.使用寿命长的时间。

   4.精确的温度控制。

   5.易于清洗

在低温加热操作至-10

可靠的螺杆压缩机。

触摸屏控制器

风冷式冷水机组范围：

1. 包装风冷冷水机组从20千瓦到45kW的


2. 模块化滚动风冷冷水机组从65KW到130千瓦

3. 螺杆式风冷冷水机组从180KW到860kW

有关详细信息，请联系：

欧阳诚

奇威特空调有限公司

专业从事研发，生产，销售和服务：

“风冷冷水机组，水冷冷水机组，热泵，屋顶包装机，AHU / FCU

太阳能锅炉

太阳能吸收式制冷机组及热泵“

电子邮件：oyc@vicot.com.cn

www.vicot.com.cn

Skype的： Zaoranzi

联系电话0086 531 82355568

传真0086 531 82357911

移动/ Viber的/ 探戈舞/ WhatsApp的/ 微信/ Kakao通话: 0086 13708931818

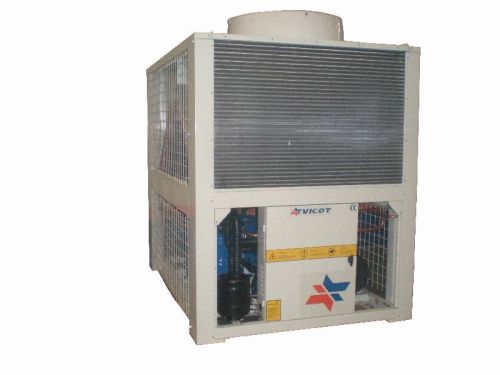

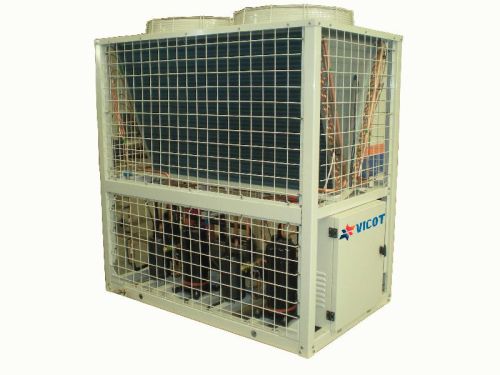

VMA (N) L (Vicot Modular screw unit) is a new generation of modular unit developed by Vicot. This unit is energy saving and convenient in use, which has the function of reverse cycle automatic defrosting, double steps automatic anti-freezing, built-in self-diagnosable system, and is controlled by microcomputer. Applicable to hotels, villas, hospitals, cinemas, stadiums, recreations, office blocks, factories and so on. It can also provide chilled water or moderate hot water for industria purpose.

The unit is suitable for installing in outspace such as roof, floor and porch, left off the boiler room and the special room, decreased the investment of building project. And no need of cooling tower and cooling water pump, this unit saves water greatly. And the unit is easy to install, manage and maintain.

Features:

Unique design, less investment

Modular design suitable for bigger application area, automatic energy output adjustment as per actual load requirement.

Multi parallel connection, multi steps start by sequence, minimize starting current, good to electricity skid.
Fully-automatic control
The operation and management of this unit are controlled by microcomputer system. It is easy to operate so that the professional management personnel are unnecessary. The units turn on/ off the compressor automatically according to the load, making the units operate on the point of the most economical, and energy saving. And there are complete protective functions such as error self-detecting system, balancing the compressor wear automatically, and anti-freezing automatically in winter.

Appearance

The M shaped air cooled condenser for modular screw type, which is ingenius, beautiful and compacting. This unit looks clear and refinement by means of designing the components and tubs reasonably.
The unit is well in anticorrosion, so that it can be placed in outdoor space without special room.
Intelligent defrosting

Each circuit is separate to the others at inner cooling system, and controls the operation of the system independently. So it is separating when booting up. According to the different climatic conditions (temperature and humidity) to set the parameters for automatic defrosting, defrost is thoroughly and energy-saving, increasing the heating efficiency. And the defrosting has no significant influence to the indoor air-conditioning temperature.

Intelligent anti-freezing

This unit adopts anti-freezing automatic dual-class protection, preventing the water system being damaged once the refrigerant freezing at winter. The anti-freezing protection can be quitted automaticly when the water temperature is increased according to the operation of heating or pump.

Convenient operation

Each unit is strictly tested. And the protective parameters are set. So you will just connect the power and the water pipes at installation, and operate the computer controller when you use it.

No limit of pipe length

The piping length just have little impact one the capacity, only the change of water pump for longer piping.

Simple installation.
No on site refrigerant charge, light weight and compact size for easy handling.

Efficient shell & tube heat exchanger evaporator

1. High heat transfer efficiency, less weight, easy to clean.

   2. Good anti corrosion property.

   3. Long life time .

   4. Precise temperature control.

   5. Easy cleaning

Heating operation in low temperature down to -10

Reliable screw compressor.

Touch screen controller

Air cooled water chiller range:

1. Packaged air cooled water chiller from 20kW to 45kW


2. Modular scroll air cooled water chiller from 65kW to 130kW

3. Screw Air cooled water chiller from 180kW to 860kW

For detailed information, kindly contact:

Ouyang Cheng

Vicot Air Conditioning Co., Ltd.

Specialized in R&D, Production, sales and service of:

'Air cooled water chiller, water cooled water chiller, heat pump, rooftop packaged unit, AHU/ FCU

Solar boiler

Solar absorption chiller & heat pump'

Email: oyc@vicot.com.cn

www.vicot.com.cn

Skype: Zaoranzi

Tel: 0086 531 82355568

Fax: 0086 531 82357911

Mobile/Viber/Tango/WhatsApp/Wechat/Kakao Talk: 0086 13708931818
