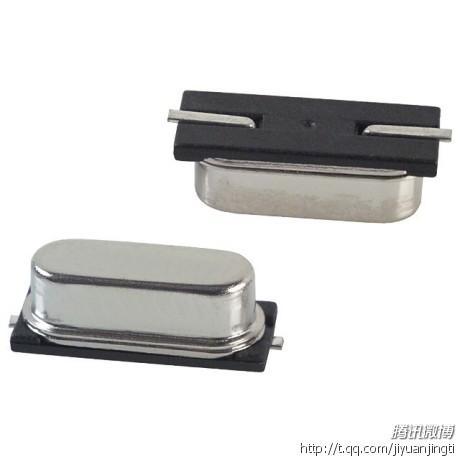

型号Holder type:

49S-SMD

标称频率Frequency:

8.000MHz

调整频差Frequency tolerance at 25ºC:

± 20ppm

温度频差Temperature tolerance:

± 30ppm

工作温度Operating temperature range:

-20ºC ~+70ºC

保存温度 Storge temperature range:

-40ºC ~+85ºC

负载电容Load capacitance (CL) :

20 pF

静电容Shunt capacitance (C0) :

5pF max.

振动模式Vibration mode:

AT fund

等效电阻Equivalent series resistance:

60Ω

绝缘电阻 Insulation resistance:

500Ωmin (DC 100V)

老化率Aging:

± 5ppm/ year

激励功率Drive level:

0.1mw

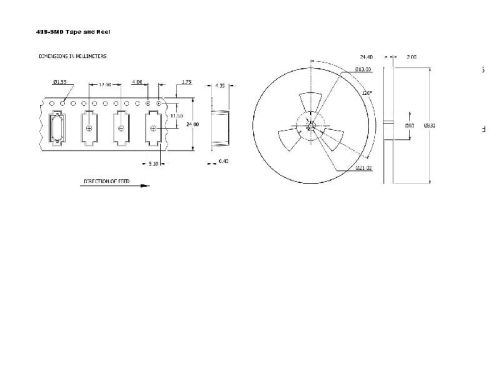

外形尺寸: Size

Unit: mm

印字: Mark: Laser

8.000
