产品描述

特点：
（1）。 磁强度在峰值超过12000高斯
（2）。 磁路的独特和优化的设计使得高梯度磁
实力雄厚，并与分离效果好
（3）。可用于分离强磁性铁杂质和漏磁
铁杂质如铁锈，铁屑等微小磁性杂质

（4）。全捕捉和强大的捕捉能力可用，这可以有效
降低铁的分离和较低的劳动强度工作的时间。
（5）键部件使用钕铁硼稀土永磁由更新的技术制成的材料，具有长寿命的使用固体结构和性能稳定。

工作期间6.无能耗，运行成本低，简单，安装方便，清晰。

7.标准型可容纳到工作温度≤80℃下，我们也可以提供高温型可容纳至温度环境高达200℃。

8.各种结算工具配件可供选择自定义尺寸和多层网格设计可供选择。
应用和结构：
高有效永磁过滤杆可以被安装在固体或液体物质流动的任何点来捕捉和分离很细的含铁颗粒，并且它们可以以药物，卫生，纺织，机械和食品应用。 当含铁材料通过，它们将被强力磁铁被吸引，并吸附到管壁，从而保证完整的机械和产品的安全性的。
该过滤棒都配备有强大的铁氧体磁体或高能钕铁硼（钕铁硼）磁体，其周围的程度很强且致密磁场建立，和施工具有耐腐蚀性的程度高。 这样一来，你的装备和设施将是安全和声音，你的产品将是安全食用。

Basic Info.

Additional Info.

Product Description

Characteristics:
(1) . The magnetic strength at the peak value is more than 12000 gauss
(2) . Unique and optimum design of magnetic circuit makes the high-gradient magnetic
strength, and with the good effect of separation
(3) .Can be used to separate the strong magnetism iron impurity and leak magnetism
iron impurity such as iron rust, iron scrap and other tiny magnetic impurity

(4) .Full catching and strong snap capability available, which can efficiently
reduce the times of iron-separation and lower labor working intensity.
(5) The key parts use the NdFeB rare earth permanent magnetic material made by the updated techniques, having the solid structure and stable performance for long life usage.

6. No energy-consumption during operation, low operation cost, easy and convenient to install and clear .

7. The standard type can accomodate to the working temperature ≤80°C, we can also provide the high-temperature type accomodates to the temperature environment as high as 200°C .

8. Various clearing tool accessories are available for selection Custom-size and multiple-layer grid designs are available.
Application and Structure:

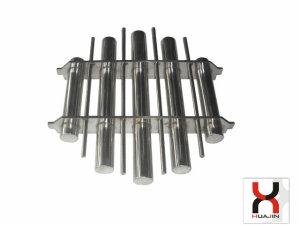

High effective permanent magnetic filter bars can be installed at any point in solid or liquid material flows to catch and separate very fine ferrous particles, and they may apply in medicines, sanitation, textile, machinery and foodstuffs. When the ferrous materials pass through, they will be attracted by strong magnet and absorbed on the pipe wall, so as to ensure the intact of the machinery and the safety of products.
The filter bars are equipped with powerful ferrite magnets or high-energy NdFeB (Neodymium Iron Boron) magnets, which build up a strong and dense magnetic field around the extent, and the construction has a high degree of corrosion resistance. As a result, your equipment and facilities will be safe and sound, and your products will be safe for consumption.
