FAG 7217B.MP.UA Angular Contact Ball Bearings
FAG 7217B。MP。UA 角接触球轴承
议价
加入意向FAG 7217B。MP。UA issingle 排角接触球轴承、 40 度接触角与轴向和径向的支持加载。MP 设计与黄铜保持架 whichevenly 空间辊的负荷分布均匀，并防止接触减少摩擦、 振动和噪声。它是开放轴承润滑就地和用于在应用程序中几乎不接触灰尘、 污垢、 debrisand 其他污染物。
让我们检查技术数据工作表 forFAG 轴承 7217B。MP。UA。
联系人: 销售 (at) hzskf.cn
FAG 部件号 | 7217B。MP。UA |
类型 | 开放的单列角接触球轴承 |
维度 | 85 毫米 × 150 毫米 × 28 毫米 |
重量 | 1.94 公斤 / PC |
径向基本额定动载荷 | 97000N |
径向基本额定静负荷 | 87000N |
限制速度 | 5400 r / min |
参考速度 | 4700 r / min |
疲劳极限载荷 | 5400N |
起源 |
以下是 FAG 角接触球轴承为你检查。
FAG 零件编号: | d | D | B |
毫米 | 毫米 | 毫米 | |
7200-B-JP | 10 | 30 | 9 |
7200-B-TVP | 10 | 30 | 9 |
7201-B-TVP | 12 | 32 | 10 |
7201-B-JP | 12 | 32 | 10 |
7202-B-TVP | 15 | 35 | 11 |
7202-B-JP | 15 | 35 | 11 |
7203-B-JP | 17 | 40 | 12 |
7203-B-TVP | 17 | 40 | 12 |
7204-B-TVP | 20 | 47 | 14 |
7204-B-JP | 20 | 47 | 14 |
7205-B-TVP | 25 | 52 | 15 |
7205-B-JP | 25 | 52 | 15 |
7206-B-TVP | 30 | 62 | 16 |
7206-B-JP | 30 | 62 | 16 |
7207-B-TVP | 35 | 72 | 17 |
7207-B-JP | 35 | 72 | 17 |
7208-B-JP | 40 | 80 | 18 |
7208-B-TVP | 40 | 80 | 18 |
7209-B-TVP | 45 | 85 | 19 |
7209-B-JP | 45 | 85 | 19 |
7210-B-TVP | 50 | 90 | 20 |
7210-B-JP | 50 | 90 | 20 |
7211-B-JP | 55 | 100 | 21 |
7211-B-TVP | 55 | 100 | 21 |
7212-B-TVP | 60 | 110 | 22 |
7212-B-JP | 60 | 110 | 22 |
7213-B-TVP | 65 | 120 | 23 |
7213-B-JP | 65 | 120 | 23 |
7214-B-TVP | 70 | 125 | 24 |
7214-B-JP | 70 | 125 | 24 |
7215-B-TVP | 75 | 130 | 25 |
7215-B-JP | 75 | 130 | 25 |
7216-B-JP | 80 | 140 | 26 |
7216-B-TVP | 80 | 140 | 26 |
7217-B-TVP | 85 | 150 | 28 |
7217-B-JP | 85 | 150 | 28 |
7218-B-TVP | 90 | 160 | 30 |
7218-B-JP | 90 | 160 | 30 |
7219-B-JP | 95 | 170 | 32 |
7219-B-TVP | 95 | 170 | 32 |
7220-B-TVP | 100 | 180 | 34 |
7220-B-JP | 100 | 180 | 34 |
7221-B-MP | 105 | 190 | 36 |
7222-B-JP | 110 | 200 | 38 |
7222-B-TVP | 110 | 200 | 38 |
7224-B-TVP | 120 | 215 | 40 |
7226-B-TVP | 130 | 230 | 40 |
7228-B-MP | 140 | 250 | 42 |
7230-B-MP | 150 | 270 | 45 |
7232-B-MP | 160 | 290 | 48 |
7234-B-MP | 170 | 310 | 52 |
使用上述的 FAG 滚动轴承 ina 范围的应用程序从农业机械到输送设备、 机器人、 牙科设备、 电梯、 轧机、 船舵轴，骨料破碎机，除其他外的。欢迎向我们发送您的询问。

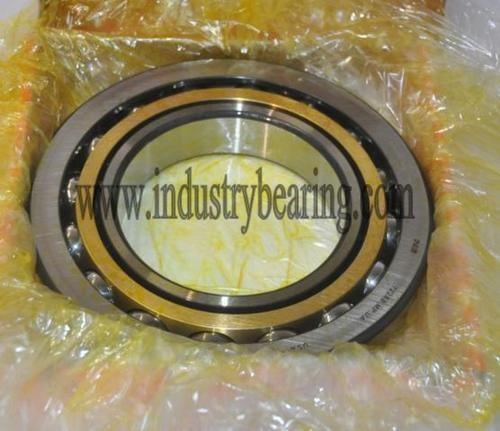

FAG 7217B. MP. UA issingle row angular contact ball bearings, with a 40 degree contact angle tosupport both axial and radial loads. MP is designed with brass cage whichevenly spaces the rollers for even load distribution and prevents contact toreduce friction, vibration and noise. It's open bearing for lubrication inplace and for use in applications with little exposure to dirt, grime, debrisand other contaminants.
Let's check the technical data sheet forFAG bearing 7217B.MP.UA.
Contact: sales (at) hzskf.cn
FAG part NO. | 7217B.MP.UA |
Type | Open single row angular contact ball bearing |
Dimension | 85mm x 150mm x 28mm |
Weight | 1.94 KGS/ PC |
Radial basic dynamic load rating | 97000N |
Radial basic static load rating | 87000N |
Limiting speed | 5400 r/ min |
Reference speed | 4700 r/ min |
Fatigue limit load | 5400N |
Origin |
The following are FAG angular contact ballbearings for your checking.
FAG Part NO.: | d | D | B |
mm | mm | mm | |
7200-B-JP | 10 | 30 | 9 |
7200-B-TVP | 10 | 30 | 9 |
7201-B-TVP | 12 | 32 | 10 |
7201-B-JP | 12 | 32 | 10 |
7202-B-TVP | 15 | 35 | 11 |
7202-B-JP | 15 | 35 | 11 |
7203-B-JP | 17 | 40 | 12 |
7203-B-TVP | 17 | 40 | 12 |
7204-B-TVP | 20 | 47 | 14 |
7204-B-JP | 20 | 47 | 14 |
7205-B-TVP | 25 | 52 | 15 |
7205-B-JP | 25 | 52 | 15 |
7206-B-TVP | 30 | 62 | 16 |
7206-B-JP | 30 | 62 | 16 |
7207-B-TVP | 35 | 72 | 17 |
7207-B-JP | 35 | 72 | 17 |
7208-B-JP | 40 | 80 | 18 |
7208-B-TVP | 40 | 80 | 18 |
7209-B-TVP | 45 | 85 | 19 |
7209-B-JP | 45 | 85 | 19 |
7210-B-TVP | 50 | 90 | 20 |
7210-B-JP | 50 | 90 | 20 |
7211-B-JP | 55 | 100 | 21 |
7211-B-TVP | 55 | 100 | 21 |
7212-B-TVP | 60 | 110 | 22 |
7212-B-JP | 60 | 110 | 22 |
7213-B-TVP | 65 | 120 | 23 |
7213-B-JP | 65 | 120 | 23 |
7214-B-TVP | 70 | 125 | 24 |
7214-B-JP | 70 | 125 | 24 |
7215-B-TVP | 75 | 130 | 25 |
7215-B-JP | 75 | 130 | 25 |
7216-B-JP | 80 | 140 | 26 |
7216-B-TVP | 80 | 140 | 26 |
7217-B-TVP | 85 | 150 | 28 |
7217-B-JP | 85 | 150 | 28 |
7218-B-TVP | 90 | 160 | 30 |
7218-B-JP | 90 | 160 | 30 |
7219-B-JP | 95 | 170 | 32 |
7219-B-TVP | 95 | 170 | 32 |
7220-B-TVP | 100 | 180 | 34 |
7220-B-JP | 100 | 180 | 34 |
7221-B-MP | 105 | 190 | 36 |
7222-B-JP | 110 | 200 | 38 |
7222-B-TVP | 110 | 200 | 38 |
7224-B-TVP | 120 | 215 | 40 |
7226-B-TVP | 130 | 230 | 40 |
7228-B-MP | 140 | 250 | 42 |
7230-B-MP | 150 | 270 | 45 |
7232-B-MP | 160 | 290 | 48 |
7234-B-MP | 170 | 310 | 52 |
The above FAG Rolling bearings are used ina range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, andaggregate crushers, among others. Welcome to send your enquiry to us.
