关键词：4 FXO +4 FXS端口，TI的芯片组，支持音频编解码器：G711U / A，G723，G729A / B，T 38标准

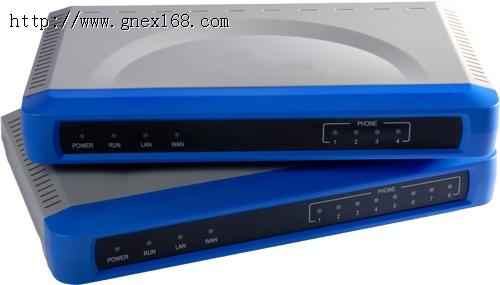

GNEX-6108具有4FXO端口中，基于SIP标准，可以连接到4PSTN线。

产品特点：
•4FXS和4FXO端口媒体网关;
•外部电源
•两个RJ-45端口10/100 Mbps的（交换或路由）
•TFTP和HTTP支持固件升级
•多个SIP帐号（选择每个账户2型材）
•针对不同国家/地区的可编程PSTN线路设置
•1或2阶段拨号
• 来电显示
•G. 168 - 回声消除
•T. 38和PSTN通过
•灵活的DTMF传输：在音频，RFC2833，SIP INFO或3任意组合

技术参数：
以太网端口：2个RJ45
NAT /路由：是
DHCP：客户端
FXS端口：4
FXO端口：4
PSTN直通端口：无
语音邮件指示灯：无
语音编解码器：G. 711（A /法），G。 723，G 729A / B，G 726，T 38
远程配置：TFTP / HTTP

下载：
•宣传册
•快速安装指南
• 使用手册

Key words: 4 FXO +4 FXS ports, TI chipset, Supports Audio Codecs: G711U/ A, G723, G729A/ B, T. 38 compliant

GNEX-6108 has 4FXO ports, Based on SIP standard, can be connected to 4PSTN lines.

Features:
• 4FXS and 4FXO port media gateways;
• External power supply
• Two RJ-45 ports 10/100 Mbps (switched or routed)
• TFTP and HTTP firmware upgrade support
• Multiple SIP accounts (choice of 2 profiles per account)
• Programmable PSTN line settings for different countries/ regions
• 1 or 2 stage dialing
• Caller ID
• G. 168 - echo cancellation
• T. 38 and PSTN pass through
• Flexible DTMF transmission: In Audio, RFC2833, SIP Info or any combination of the 3

Specifications:
Ethernet Ports: 2 RJ45
NAT/ Router: Yes
DHCP: Client
FXS Port: 4
FXO Port: 4
PSTN Pass-through Port: No
Voice Mail Indicator: No
Voice Codec: G. 711 (a/ law) ,G. 723, G. 729A/ B, G. 726, T. 38
Remote Configuration: TFTP/ HTTP

Downloads:
• Brochure
• Quick Install Guide
• User manual
