8CH camera kit and 8CH DVR security system, 420TVL IR dome night vision camera and h.264 Recorder
8CH相机套件，8路安防系统，420线红外半球夜视摄像机和H.264记录
项目细节
- 品牌：
- 全新的
- 型号：
- WI-P108-DM
产品描述
产品描述
介绍
闭路电视系统包括8CH H. 264实时记录网络硬盘录像机和8支穹顶室内红外日夜监控摄像机提供你需要有您的监控系统和您的家庭或企业快速，轻松地运行一切。
该DVR是一个8通道，完全集成的，实时的和基于硬件的独立数字视频录像机。 这个独立的硬盘录像机是基于嵌入式Linux操作系统，并包括一个遥控器，方便安装和操作。 随着网络接入，VGA视频输出，以及USB2.0备份，这DVR是完美的家庭或小型企业。 硬盘录像机还采用了最新的3G移动生活！ 通过手机预览。
套件中包括的相机是1/3英寸的CMOS芯片420TV线，3.6mm镜头（广角）24PCS红外灯半球摄像机。 所有的电缆和电源都包括在内。
闭路电视系统保护您的家庭或小型企业，安全的生活 - 那么容易！
DVR产品特点：
*视频压缩格式是第二代H. 264（主配置文件）;
*支持高达2TB的1倍;
*支持六操作同时工作，录像，回放，网络传输，备份，手机监控和界面操作;
*支持窗口移动，塞班，Android设备，iPhone，黑莓手机;
*配备了动态域名，无需申请。 自动通过路由器，不需要手动映射的端口。
摄像功能：
* 1/3英寸彩色CMOS芯片
* 420线水平清晰度
* 3.6mm镜头（广角）
* 24PCS红外灯
DVR规格 | |
视频压缩 | H. 264（主配置文件） |
图片标准 | PAL：720×576 / NTSC：720×480 |
分辨率编码 | CIF |
视频输入 | BNC×8 ，1.0VP-P / 75？ |
视频输出 | BNC×1，VGA×1 |
录像帧率 | PAL：200FPS，NTSC：240FPS |
音频输入 | RCA×1 |
音频输出 | RCA |
音频编码标准 | ADPCM |
音频编码速率 | 32kbps的 |
录像模式 | 手动录像，motionrecord和外耳炎报警记录 |
MULT模式 | 录制，播放互联网 |
播放 | 同时8CH播放 |
网络端口 | RJ45 10M / 100M |
云台端口 | RS485 |
硬盘端口 | 1个SATA高达2TB |
USB端口 | 2个USB端口，支持鼠标，U盘 USB移动硬盘硬盘 |
VGA端口 | 1个VGA端口，Surpport高达1024 * 768 / 60Hz的分辨率 |
电源 | 12V / 3A DC |
工作温度 | 0°C〜+ 60摄氏度 |
工作湿度 | 10%~90% |
|
|
相机规格 | |
图像传感器 | 1/3英寸彩色CMOS |
有效像素 | PAL：628（H）×582（V）的 |
水平分辨率 | 420电视线 |
透镜 | 3.6毫米 |
最小。 照明 | 0.0勒克斯 |
红外灯 | 24PCS |
BL / WB / AGC | 汽车 |
| |
S / N比率 | ）45.6分贝 |
快门速度 | 1/50 (1/60) ~1/1000.000s |
++包括包+
1个8CH H. 264网络数字视频录像机
8×1/3英寸彩色CMOS 420TVL 24IR的LED球型摄像机
8×20M电源视频即插即用电缆监控摄像机
2×12V /2000毫安4端口电源，用于监控摄像机
1个鼠标专用的DVR
为DVR 1个遥控器
1个DC12V电源适配器DVR
1 x用户手册
1个光驱
在原包
*硬盘驱动器不包括
付款
1.如果您有支付的任何问题，请与我们联系！
2.如果您需要购买更多的商品，但价格也不是很便宜，还是没找到在我们的商店，请与我们联系！
保修及退货
1.所有产品均经过检查和出厂前包装完好。
2.所有的产品有1年保修。
3.如果您不满意我们的产品和服务。 请首先给人一种非正反馈或争议之前与我们联系。 我们将尝试我们最好的解决问题。
送货
1.项目将在1-3个工作日内发货。
2，交货时间：
-via快递：一般3-7个工作日。
-via航空邮件：一般10-30个工作日。
3.如果您还没有缴交30天内接受您的发货，请与我们联系。 我们将跟踪货物，并送还给你尽快与答复。
4.买家响应的（万一）所有在任何情况下税或增值税。
客户服务
1，我们保证我们所有的项目都在他们的描述说明。 我们追求100％的客户满意度在每一个销售我们完成。
2.我们的产品都是直接从工厂，没有中间人，没有高的标记，所以我们可以提供优质的项目还非常有竞争力的价格。
3.如果您有任何疑问，请第一时间联系我们，大部分都在12营业时间回应。
包装详细信息
- 单位类型：
- 片
- 包装重量：
- 7.500千克（16.53磅。）
- 包装尺寸：
- 45厘米x 30厘米×20厘米（17.72in x 11.81in x 7.87in）
Item specifics
- Brand Name:
- Brand new
- Model Number:
- WI-P108-DM
Product Description
Product Description
Introduction
The CCTV Systems includes a 8CH H. 264 Real-time Recording Network DVR and 8pcs dome indoor IR Day&Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
The DVR is a 8 channel, fully integrated, real time, and hardware based standalone digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With network access, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
The cameras included in the kit are 1/3 inch CMOS Chip 420TV Line, 3.6mm Lens (Wide Angle) 24PCS IR Led dome Camera. All cables and power supplies are included.
The CCTV Systems Protect your Home or small Business, Safe Life - So easy!
DVR Features:
* video compression format is the second-generation H. 264 (Main Profile) ;
* Support Up to 1x 2TB;
* support the six operation working simultaneously, recording, playback, network transmission, backup, mobile phone surveillance and interface operating;
* Support Window Mobile, Symbian, Android, iPhone, BlackBerry;
* come with a dynamic domain name, don't need to apply for it. Automatically through the router, do not need to manually map the ports.
Camera Features:
* 1/3inch color CMOS Chip
* 420 TV Lines Horizontal Resolution
* 3.6mm Lens (Wide Angle)
* 24PCS IR Leds
DVR Specification | |
Video Compression | H. 264 (Main Profile) |
Picture Standard | PAL: 720 x 576 / NTSC: 720 x 480 |
Resolution Encoded | CIF |
Video Input | BNC x 8, 1.0Vp-p/ 75? |
Video Output | BNC x 1, VGA x 1 |
Recording Frame Rate | PAL: 200FPS, NTSC: 240FPS |
Audio Input | RCA x 1 |
Audio Output | RCA |
Audio encoded standard | ADPCM |
Audio encoded Rate | 32kbps |
Record Mode | Manual record, motionrecord and externa alarm record |
Mult Mode | Record, Play, Internet |
Playback | 8CH playback simultaneously |
Network Port | RJ45 10M/ 100M |
PTZ Port | RS485 |
Hard Disk Port | 1 SATA up to 2TB |
USB Port | 2 x USB port, Support Mouse, U disk and USB portable hard drive disk |
VGA Port | 1 x VGA port, Surpport up to 1024*768/60Hz Resolution |
Power Supply | 12V/ 3A DC |
Operational Temperature | 0 Degree C~+60 Degree C |
Operational Humidity | 10%~90% |
|
|
Camera Specification | |
Image Sensor | 1/3 inch Color CMOS |
Effective Pixels | PAL: 628 (H) x 582 (V) |
Horizontal Resolution | 420 TV Lines |
Lens | 3.6mm |
Min. Illumination | 0.0 Lux |
IR Led | 24PCS |
BL/ WB/ AGC | Auto |
| |
S/ N Ratio | ) 45.6dB |
Shutter Speed | 1/50 (1/60) ~1/1000.000s |

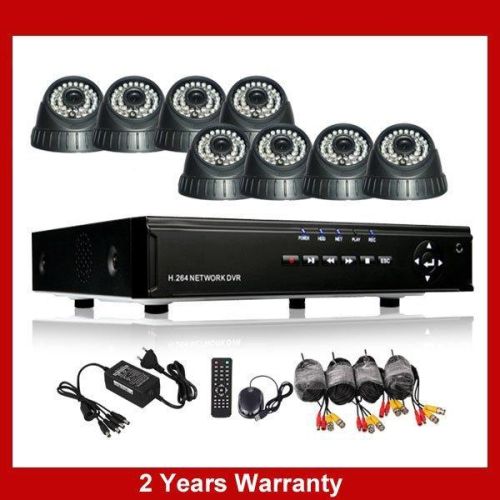

++ Package included ++
1 x 8CH H. 264 Network Digital Video Recorder
8 x 1/3 inch color CMOS 420TVL 24IR Leds dome Cameras
8 x 20M Power Video Plug and Play Cable for CCTV Camera
2 x 12V/ 2000mA 4 Port Power Supply for CCTV Camera
1 x Mouse for DVR
1 x Remote Control for DVR
1 x DC12V Power Adapter for DVR
1 x User manual
1 x CD
In original package
* Hard drive is not included
Payment
1. If you have any problems of payment, please contact us!
2. If you need to buy more goods, but the price is not very cheap, or did not find in our store, please contact us!
Warranty & Return
1. All products have been checked and packaged in good condition before dispatch.
2. All products have 1 year warranty.
3. if you are not satisfied with our product and service. Please contact us first before giving a non positive feedback or dispute. we will try to our best to solve the problems.
Shipping
1. Item will be shipped within 1-3 business days.
2. Delivery Time:
-Via Express: Generally 3-7 working days.
-Via Air Mail: Generally 10-30 working days.
3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply.
4. Buyer responses for (in case) all tax or VAT under any circumstances.
Customer Services
1, We guarantee that all our items are as stated in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from factory, there is no middle man, no high markup, so we can provide quality items yet very competitive price.
3. If you have any questions please contact us first, most are responded with in 12 business hours.
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 7.500kg (16.53lb.)
- Package Size:
- 45cm x 30cm x 20cm (17.72in x 11.81in x 7.87in)
