8 Channel Surveillance DVR Recorder 8 pcs 600TVL Built-in IR-CUT indoor Security Camera System
8路监控DVR录像机8个600TVL内置IR-CUT室内安全摄像系统
项目细节
- 品牌：
- 全新的
- 型号：
- WI-DM8800H
产品描述
产品描述
闭路电视系统包括一个8路（1路D1的7ch CIF）的H.264实时录像网络硬盘录像机
和8件室内红外日夜监控摄像机提供你需要拥有一切
您的监控系统和您的家庭或企业快速，轻松地运行。
该DVR是一个8通道，完全集成的，实时的和基于硬件的独立数字视频录像机。
这个独立的硬盘录像机是基于嵌入式Linux操作系统，并包括一个遥控器
为方便安装和操作。 随着网络接入，VGA视频输出，以及USB2.0备份。
该DVR是完美的家庭或小型企业。 硬盘录像机还采用了最新的3G移动生活！ 通过手机预览。
视频压缩 | H. 264 | ||
视频系统 | NTSC / PAL | ||
操作系统 | 基于Linux的 | ||
视频输入/输出 | BNC 8路输入/ 1路输出 | ||
其它视频输出 | VGA | ||
音频输入/输出 | RCA双声道输入/ 1路BNC输出 | ||
显示帧率 | NTSC：240 fps的D1 / PAL：200 FPS D1 | ||
显示分辨率 | NTSC：D1（720×480）/ PAL：D1（704×576） | ||
录像帧率 | NTSC：30 fps的1路D1 / 210 fps的7通道CIF / PAL：25 fps的1路D1 / 175 fps的7通道CIF | ||
录像分辨率 | 可选择：NTSC：D1（720×480）; CIF（352×240）/ PAL：D1（704×576）; CIF（352×288） | ||
录像模式 | 连续/时间表/移动侦测 | ||
网络 | RJ45，10M / 100M | ||
网协议 | TCP / IP，DHCP，DDNS功能 | ||
远程访问 | 局域网或互联网浏览 | ||
PTZ控制 | RS-485的 | ||
硬盘接口 | SATA，320GB和2TB的支持 | ||
播放模式 | 正常播放/快进/快退/逐帧 | ||
USB | USB备份/ USB 2.0 | ||
遥控 | 红外遥控器 | ||
电源 | DC12V，2.5A | ||
摄像头规格： | |||
图像传感器 | 1/3彩色CMOS | ||
电视系统 | PAL / NTCS | ||
有效像素 | NTSC：811（H）* 508（V）/ PAL：795（H）x596（V）的 | ||
水平分辨率 | 600电视线 | ||
透镜 | 3.6毫米 | ||
红外LED数量 | 36个LED | ||
红外照明（夜视） | 达65英尺 | ||
最低照度 | 0.0勒克斯 | ||
S / N比率 | 50分贝 | ||
视频输出 | 1.0VP - 对，75欧 | ||
防水 | 是 | ||
工作温度 | -25°F〜122°F / -32°C〜50℃ | ||
功率 | 12V DC | ||
总重量 | 0.33磅 | ||
材料 | 塑料 | ||
套餐包括
1个8CH H. 264网络数字视频录像机
8×1/3英寸彩色CMOS 600TVL IR-CUT 36IR LED的相机
8×20M电源视频即插即用电缆监控摄像机
2×12V /2000毫安4端口电源，用于监控摄像机
1个鼠标专用的DVR
为DVR 1个遥控器
1个DC12V电源适配器DVR
1 x用户手册
1个光驱
在原包
*硬盘驱动器不包括
付款
1.如果您有支付的任何问题，请与我们联系！
2.如果您需要购买更多的商品，但价格也不是很便宜，还是没找到在我们的商店，请与我们联系！
保修及退货
1.所有产品均经过检查和出厂前包装完好。
2.所有的产品有1年保修。
3.如果您不满意我们的产品和服务。 请首先给人一种非正反馈或争议之前与我们联系。 我们将尝试我们最好的解决问题。
送货
1.项目将在1-3个工作日内发货。
2，交货时间：
-via快递：一般3-7个工作日。
-via航空邮件：一般10-30个工作日。
3.如果您还没有缴交30天内接受您的发货，请与我们联系。 我们将跟踪货物，并送还给你尽快与答复。
4.买家响应的（万一）所有在任何情况下税或增值税。
客户服务
1，我们保证我们所有的项目都在他们的描述说明。 我们追求100％的客户满意度在每一个销售我们完成。
2.我们的产品都是直接从工厂，没有中间人，没有高的标记，所以我们可以提供优质的项目还非常有竞争力的价格。
3.如果您有任何疑问，请第一时间联系我们，大部分都在12营业时间回应。
包装详细信息
- 单位类型：
- 片
- 包装重量：
- 6.500千克（14.33磅。）
- 包装尺寸：
- 35厘米x20厘米x18厘米（13.78in x 7.87in x 7.09in）
Item specifics
- Brand Name:
- Brand new
- Model Number:
- WI-DM8800H
Product Description
Product Description
The CCTV Systems includes a 8CH (1ch D1 7ch CIF) H. 264 Real-time Recording Network DVR
and 8pcs indoor IR Day&Night surveillance Cameras providing everything you need to have
your surveillance system up and running in your home or business quickly and easily.
The DVR is a 8 channel, fully integrated, real time, and hardware based standalone digital video recorder.
This standalone DVR is based on an embedded Linux operating system and includes a remote control
for easy setup and operation. With network access, VGA video output, and USB2.0 backup.
this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
Video Compression | H. 264 | ||
Video System | NTSC / PAL | ||
Operation System | Linux Based | ||
Video Input / Output | BNC 8-Channel Input / 1-Channel Output | ||
Other Video Output | VGA | ||
Audio Input / Output | RCA 2CH Input / BNC 1CH Output | ||
Display Frame Rate | NTSC: 240 fps D1 / PAL: 200 fps D1 | ||
Display Resolution | NTSC: D1 (720 x 480) / PAL: D1 (704 x 576) | ||
Recording Frame Rate | NTSC: 30 fps 1CH D1 / 210 fps 7CH CIF/ PAL: 25 fps 1CH D1 / 175 fps 7CH CIF | ||
Record Resolution | Selectable: NTSC: D1 (720 x 480) ; CIF (352 x 240) / PAL: D1 (704 x 576) ; CIF (352 x 288) | ||
Record Mode | Continuous / Time Schedule / Motion Detection | ||
Network | RJ45, 10M/ 100M | ||
Net Protocol | TCP/ IP, DHCP and DDNS | ||
Remote Access | LAN or Internet Browsing | ||
PTZ Control | RS-485 | ||
HDD Interface | SATA, Support between 320GB and 2TB | ||
Playback Mode | Normal Play / Fast Forward / Fast Rewind/ Frame by Frame | ||
USB | USB Backup / USB 2.0 | ||
Remote Control | IR Remote Control | ||
Power Supply | DC12V, 2.5A | ||
Camera Specification: | |||
Image Sensor | 1/3 Color CMOS | ||
TV System | PAL/ NTCS | ||
Effective Pixels | NTSC: 811 (H) * 508 (V) / PAL: 795 (H) x596 (V) | ||
Horizontal Resolution | 600 TV-Lines | ||
Lens | 3.6mm | ||
Number of IR LEDs | 36 LEDs | ||
Infrared Illumination (Night Vision) | up to 65ft | ||
Minimum Illumination | 0.0 Lux | ||
S/ N Ratio | 50dB | ||
Video Output | 1.0Vp-p, 75ohms | ||
Weatherproof | Yes | ||
Operating Temperature | -25°F~122°F / -32°C ~50°C | ||
Power | 12V DC | ||
Gross Weight | 0.33 lbs | ||
Material | plastic | ||

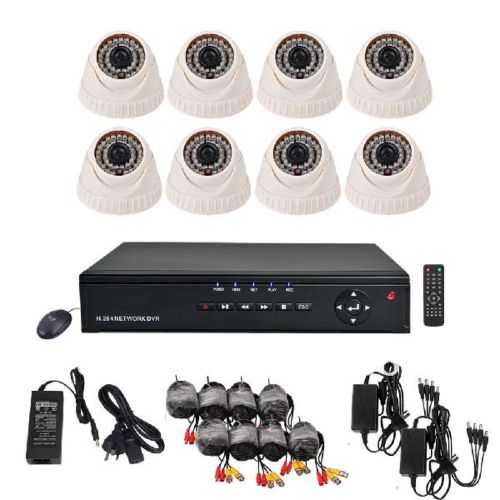

Package included
1 x 8CH H. 264 Network Digital Video Recorder
8 x 1/3 inch color CMOS 600TVL IR-CUT 36IR Leds Cameras
8 x 20M Power Video Plug and Play Cable for CCTV Camera
2 x 12V/ 2000mA 4 Port Power Supply for CCTV Camera
1 x Mouse for DVR
1 x Remote Control for DVR
1 x DC12V Power Adapter for DVR
1 x User manual
1 x CD
In original package
* Hard drive is not included
Payment
1. If you have any problems of payment, please contact us!
2. If you need to buy more goods, but the price is not very cheap, or did not find in our store, please contact us!
Warranty & Return
1. All products have been checked and packaged in good condition before dispatch.
2. All products have 1 year warranty.
3. if you are not satisfied with our product and service. Please contact us first before giving a non positive feedback or dispute. we will try to our best to solve the problems.
Shipping
1. Item will be shipped within 1-3 business days.
2. Delivery Time:
-Via Express: Generally 3-7 working days.
-Via Air Mail: Generally 10-30 working days.
3. If you have not received your shipment within 30 days from payment, please contact us. We will track the shipment and get back to you as soon as possible with a reply.
4. Buyer responses for (in case) all tax or VAT under any circumstances.
Customer Services
1, We guarantee that all our items are as stated in their descriptions. We strive for 100% customer satisfaction on every sale we complete.
2. Our products are direct from factory, there is no middle man, no high markup, so we can provide quality items yet very competitive price.
3. If you have any questions please contact us first, most are responded with in 12 business hours.
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 6.500kg (14.33lb.)
- Package Size:
- 35cm x 20cm x 18cm (13.78in x 7.87in x 7.09in)
