4 部相机 (PAL)-4 无线摄像机和 1 无线接收器的无线监控组合。
无线监控组合 4 部相机 (PAL)。这种无线监控组合是完美的对您的家庭或小型企业保持你的眼睛和耳朵。如果你正在寻找为您的家庭或小型企业的有效而经济的监察系统，再看看。此无线监控组合为欧盟 4 部相机可以提供无线监控解决方案，您需要在您可以承受的价格。四个摄像机和无线接收器，这种无线监控组合提供了一系列灵活的监控解决方案。等不受欢迎的客人吗?之前他们甚至敲在门和屏幕游客安装摄像机。需要防止盗窃案，在你的店?把相机放在每个角落，把他们捉住在法案 》。发现很难对所有的员工保持眼睛和耳朵吗?与容易安装摄像头，高质量的音频和视频和能够链接到电视监视器中，利用这种无线监控组合仅受限于你的想象力。设置您自己的无线监控系统是快速和简单。四个无线摄像头很容易安装和要求只有一个动力源。两个旋转关节与达 15 米的观看距离，相机可以轻松地针对任何位置，无论他们是否安装在墙壁、 地板或天花板上。无线接收器可以放置在从摄像机达 15 米的距离，并可以连接到电视通过 AV，以便您可以监视你的摄像机在大屏幕上。今晚，放心用平和的心态，知道你得到你的家庭或小型企业而不会危及你的钱包。告诉你的朋友你有很多对你无线监控组合从高质量、 低价格的电子产品的领导者: Ankaka。

亮点......

• 4 无线摄像机和 1 无线接收器
• 让你连接到电视监视器的 AV
• 传输高质量音频和视频

本产品采用 PAL 颜色系统。如果你需要一个 NTSC 单位，然后请订购 CVD-42A203X4-NTSC。

生产厂家规格

接收器规格

• 接收频率: ISM 2400 ~ 2483 Mhz
• 中频: 480 Mhz
• 稳频: + /-100 千赫
• 解调模式: 调频
• 天线: 50 欧姆 SMA
• 接收灵敏度: (-85dBm
• 视频输出: S，1Vp-p@75 / N) 38dB
• 音频输出: 1Vp-P@600
• 尺寸: 120 毫米 x 99 毫米 x 30 毫米 (L x W x D)
• 手动或遥控
• 四个通道可用
• 通道扫描和通道跳过多个摄像机

相机规格

• 图像设备: 1/3 英寸豪威 CMOS
• 电视系统: PAL 628 (H) x 568 (V)
• 水平的定义: 380TV 线
• 视场角: 45 度注塑 (f = 6 毫米)
• 最低照度: 3.0 Lux (F1.2)
• 同步系统: 内部
• 扫描频率 (H): 15.625 千赫 PAL
• 扫描频率 (V): 50hz PAL
• 背光补偿: 自动
• 电子快门速度: 1/50 (1/60) ~1/100000sec
• 白平衡: 自动
• S / N 比率:) 48dB
• 伽玛校正:) 0.45
• 操作温度:-10 ~ 50 ℃
• 传输频率: ISM 2400 ~ 2483 MHz
• 锁定的频率
• 尺寸: 32 × 25 毫米 × 53 毫米 (L x W x D)
• 内置麦克风
• 推荐对象的范围: 1-8 米 (最大有效射程 12 米)
• 不受干扰的传输范围: 15 米
• 批发电子参考文献: 批发 E56DCC641555
• 目录 Ref: 安全摄像头，监控套件，无线安全相机套

厂家注意的到

• 很容易可编程自动切换从一个频道到另一碰包括遥控器上的按钮
• 此设置带有 1 接收机和 4 照相机
• 每个无线摄像机有其自己的电源

化学气相沉积-42A203X4-PAL 包列表

• 4 x 无线摄像机
• 1 x 无线视频接收器
• 5 x 电源适配器，100-240V (相机的 4 倍，1 x 为接收器)
• 相机的 4 x 9V 电池电源附件
• 1 x 远程控制
• 1 x 用户手册-英文
• 2 x AV 线

客户服务中注意的到

• 多远的距离可以摄像头麦克风提取音频吗?
  MIC 只能听到清晰音频达 3 米 (最大)。
• 很难安装吗?
  一点也不！只是插去，你要做的就是选择不同的渠道，对每个摄像机的使用通道开关位于尾部的无线摄像机。
• 并接收方也记录视频吗?
  号但一旦将接收器连接到硬盘录像机或类似 AV 中录制设备 (包括媒体计算机)，它是很简单的视频记录。

付款

1.如果您有支付的任何问题，请联系我们!
2.如果您需要购买更多商品，但价格不是很便宜，或者没有找到在我们的商店，请联系我们!

保修卡和回报

1.所有产品均已检查并打包发货前状况良好。

2.所有产品都具有 1 年保修。

3.如果你不满意我们的产品和服务。请联系我们先尝非积极的反馈或争议。我们会为我们最好要解决的问题。

航运

1.项目将在 1-3 个工作日内发货。
2.交货时间:
-通过快递: 一般 3-7 个工作日。
-通过航空邮件: 一般 10-30 天。
3.如果你没有收到付款的你 30 天内的装运，请联系我们。我们将跟踪装运和回到你尽快答复。
4.买方响应 (以防万一) 所有税或增值税在任何情况下。

客户服务

1、 我们保证我们所有的项目都是在他们的描述中所述。我们争取我们完成每销售 100%客户满意度。

2.我们的产品都是直接从工厂，那里是没有中间的人，也没有高的标记，所以我们能提供优质的项目却极具竞争力的价格。

3.如果您有任何疑问请先与我们联系，大部分都被反应在 12 营业时间。

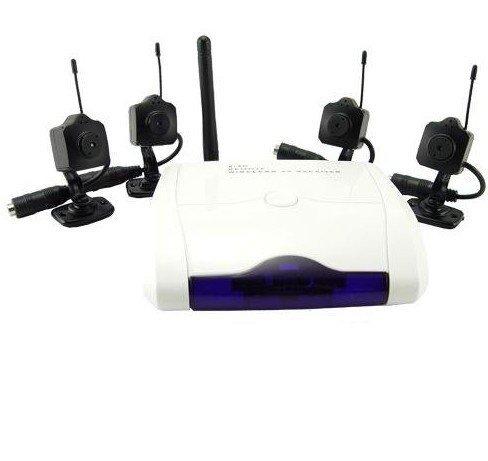

Wireless Surveillance Combo with 4 Cameras (PAL) - 4 wireless cameras and 1 wireless receiver
Wireless Surveillance Combo with 4 Cameras (PAL) . This wireless surveillance combo is perfect for keeping your eyes and ears on your home or small business. If you are looking for an effective and economical surveillance system for your home or small business, look no further. This Wireless Surveillance Combo with 4 Cameras for the EU can provide the wireless surveillance solution you need at a price you can afford. With four cameras and a wireless receiver, this Wireless Surveillance Combo provides a range of flexible surveillance solutions. Expecting unwelcome guests? Install a camera over the door and screen visitors before they even knock. Need to prevent theft in your shop? Put a camera in each corner and catch them in the act. Finding it difficult to keep an eye and an ear on all of your employees? With easy to install cameras, high-quality audio and video, and the ability to link to a TV monitor, the uses of this Wireless Surveillance Combo are limited only by your imagination. Setting up your own wireless surveillance system is quick and simple. The four wireless cameras are easy to install and require only a power source. With two rotatable joints and a viewing distance of up to 15 meters, the cameras can be easily aimed at any location, no matter whether they are installed on the wall, floor, or ceiling. The wireless receiver can be positioned at a distance of up to 15 meters from the cameras and can connect to a TV through AV Out so you can monitor your cameras on a large screen. Tonight, rest easy with the peace of mind that comes with knowing that you have secured your home or small business without endangering your wallet. Tell your friends you got a great deal on your Wireless Surveillance Combo from the leader in high-quality, low-price electronics: Ankaka.

Highlights...

• 4 wireless cameras and 1 wireless receiver
• AV out lets you connect to a TV monitor
• Transmits high quality audio and video

This product uses PAL color system. If you need a NTSC unit then please order CVD-42A203X4-NTSC.

Manufacturer Specifications

Receiver Specifications

• Receiving Frequency: ISM 2400~2483Mhz
• Intermediate Frequency: 480Mhz
• Frequency Stabilization: +/ -100Khz
• Demodulation Mode: FM
• Antenna: 50ohm SMA
• Receiving Sensitivity: (-85dBm
• Video Output: 1Vp-p@75, S/ N) 38dB
• Audio Output: 1Vp-P@600
• Dimensions: 120mm x 99mm x 30mm (L x W x D)
• Manual or Remote Controlled
• Four Channels Available
• Channel Scan and Channel Skip for Multiple Cameras

Camera Specifications

• Image Device: 1/3 Inch OmniVision CMOS
• TV system: PAL 628 (H) x568 (V)
• Horizontal Definition: 380TV Line
• Angular Field of View: 45deg (f=6mm)
• Minimum Illumination: 3.0Lux (F1.2)
• Synchronization System: Internal
• Scanning Freq (H) : 15.625KHz PAL
• Scanning Freq (V) : 50Hz PAL
• Backlight Compensation: Auto
• Electronic Shutter: 1/50 (1/60) ~1/100000sec
• White Balance: Auto
• S/ N Ratio: ) 48dB
• Gamma Correction: ) 0.45
• Operation Temperature: -10~50 deg C
• Transmission Frequency: ISM 2400~2483MHz
• Locked Frequencies
• Dimensions: 32mm x 25mm x 53mm (L x W x D)
• Built In Microphone
• Recommended Range for Objects: 1-8M (Max effective range 12M)
• Transmission Range: 15m without interference
• Wholesale Electronics Ref.: Wholesale E56DCC641555
• Catalog Ref: Security Cameras, Surveillance Kit, Wireless security camera set

Notes from Manufacturers

• Easily programmable to automatically switch from one channel to another at a touch of a button on the included remote control
• This set comes with 1 receiver and 4 cameras
• Each wireless camera has its own power source

Package List for CVD-42A203X4-PAL

• 4x Wireless Video Cameras
• 1x Wireless Video Receiver
• 5x Power Adapters, 100-240V (4x for cameras, 1x for receiver)
• 4x 9V battery power attachments for cameras
• 1x Remote Control
• 1x User Manual - English
• 2x AV cable

Notes from Customer Service

• How far a distance can the cameras microphone pick-up audio?
  The MIC can only hear clear audio up to 3 meters (max) .
• Is it difficult to install?
  Not at all! Just plug and go, all you have to do is select different channels on each camera by using the channel switch located the rear end of the wireless camera.
• Does the receiver also record video?
  No. But it is simple to record video once you connect the receiver to a DVR or similar AV IN recording device (including media computers) .
