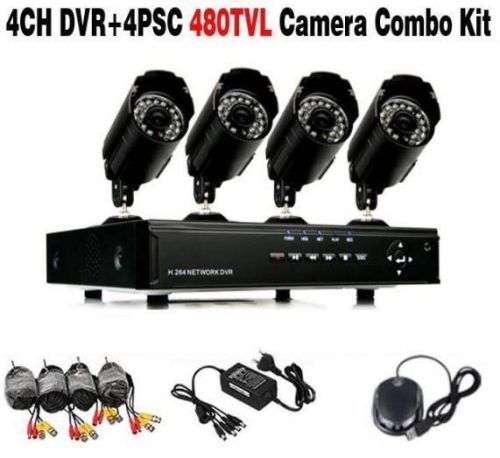

Home 4CH CCTV DVR Day Night Weatherproof Security Camera Surveillance Video System 4ch Kit For DIY CCTV Systems
Home 4CH CCTV DVR Day Night Weatherproof Security Camera Surveillance Video System 4ch Kit For DIY CCTV Systems
首页4路CCTV DVR日夜全天候监控摄像机监控视频系统的4通道套装适合DIY的CCTV系统
项目细节
- 品牌：
- 全新的
- 型号：
- WI-D460B
产品描述
产品描述
首页4路硬盘录像机CCTV监控摄像机监控系统
介绍：
闭路电视系统包括一个4通道的H.264实时录像网络硬盘录像机和4片室内/室外红外防水日夜监控摄像机提供你需要有您的监控系统和您的家庭或企业快速，轻松地运行一切。
闭路电视系统包括一个4通道的H.264实时录像网络硬盘录像机和4片室内/室外红外防水日夜监控摄像机提供你需要有您的监控系统和您的家庭或企业快速，轻松地运行一切。
该DVR是一个4通道，完全集成的，实时的和基于硬件的独立数字视频录像机。 这个独立的硬盘录像机是基于嵌入式Linux操作系统，并包括一个遥控器，方便安装和操作。 随着网络接入，VGA视频输出，以及USB2.0备份，这DVR是完美的家庭或小型企业。 硬盘录像机还采用了最新的3G移动生活！ 通过手机预览。
套件中包括的相机是1/3英寸的CMOS芯片480TV线，3.6mm镜头（广角）24PCS IR LED户外相机。 所有的电缆和电源都包括在内。
闭路电视系统360度全方位保护您的家庭或小型企业，安全的生活 - 那么容易！
DVR产品特点：
*视频压缩格式是第二代H. 264（主配置文件）;
*支持高达2TB的1倍;
*支持六操作同时工作，录像，回放，网络传输，备份，手机监控和界面操作;
*支持窗口移动，塞班，Android设备，iPhone，黑莓手机;
*配备了动态域名，无需申请。 自动通过路由器，不需要手动映射的端口。
如果你不在家，家庭报警系统将启动电子邮件报警功能。
当有盗贼闯入你的房子，该装置会立即发出报警信息和图片到您的尖头的电子邮件地址。 如果你的电话被绑定到电子邮件，那么你就可以接收电子邮件提醒，并激活手机监控后，您就可以立即看到thinss发生在家里。
当有盗贼闯入你的房子，该装置会立即发出报警信息和图片到您的尖头的电子邮件地址。 如果你的电话被绑定到电子邮件，那么你就可以接收电子邮件提醒，并激活手机监控后，您就可以立即看到thinss发生在家里。
摄像功能：
* 1/3英寸彩色CMOS芯片
* 480电视线水平分辨率
* 3.6mm镜头（广角）
* 24PCS红外灯
* IP66 IP率
* 1/3英寸彩色CMOS芯片
* 480电视线水平分辨率
* 3.6mm镜头（广角）
* 24PCS红外灯
* IP66 IP率
DVR规格 | |
视频压缩 | H. 264（主配置文件） |
图片标准 | PAL：720×576 / NTSC：720×480 |
分辨率编码 | CIF |
视频输入 | BNC×4，1.0VP-P / 75？ |
视频输出 | BNC×1，VGA×1 |
录像帧率 | PAL：100FPS，NTSC：120FPS |
音频输入 | RCA×1 |
音频输出 | RCA |
音频编码标准 | ADPCM |
音频编码速率 | 32kbps的 |
录像模式 | 手动录像，motionrecord和外耳炎报警记录 |
MULT模式 | 录制，播放互联网 |
播放 | 同时4路回放 |
网络端口 | RJ45 10M / 100M |
云台端口 | RS485 |
硬盘端口 | 1个SATA高达2TB |
USB端口 | 2个USB端口，支持鼠标，U盘 USB移动硬盘硬盘 |
VGA端口 | 1个VGA端口，Surpport高达1024 * 768 / 60Hz的分辨率 |
电源 | 12V / 3A DC |
工作温度 | 0°C〜+ 60摄氏度 |
工作湿度 | 10%~90% |
相机规格 | |
图像传感器 | 1/3英寸彩色CMOS |
有效像素 | PAL：628（H）×582（V）的 |
水平分辨率 | 480电视线 |
透镜 | 3.6毫米 |
最小。 照明 | 0.0勒克斯 |
红外灯 | 24PCS |
BL / WB / AGC | 汽车 |
IP率 | IP66 |
S / N比率 | ）45.6分贝 |
快门速度 | 1/50 (1/60) ~1/1000.000s |
++包括包+
1个4路H. 264网络数字视频录像机
4个1/3英寸彩色CMOS 420TVL 24IR LED的防水相机
4×20M电源视频即插即用电缆监控摄像机
1个12V /2000毫安4端口电源，用于监控摄像机
1个鼠标专用的DVR
为DVR 1个遥控器
1个DC12V电源适配器DVR
4×防水支架，用于监控摄像机
包装详细信息
- 单位类型：
- 片
- 包装重量：
- 5.500千克
- 包装尺寸：
- 47厘米x31厘米x19厘米
Item specifics
- Brand Name:
- Brand New
- Model Number:
- WI-D460B
Product Description
Product Description
Home 4CH CCTV DVR Security Camera Surveillance System
Introduction:
The CCTV Systems includes a 4CH H. 264 Real-time Recording Network DVR and 4pcs indoor/ outdoor Weatherproof IR Day&Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
The CCTV Systems includes a 4CH H. 264 Real-time Recording Network DVR and 4pcs indoor/ outdoor Weatherproof IR Day&Night surveillance Cameras providing everything you need to have your surveillance system up and running in your home or business quickly and easily.
The DVR is a 4 channel, fully integrated, real time, and hardware based standalone digital video recorder. This standalone DVR is based on an embedded Linux operating system and includes a remote control for easy setup and operation. With network access, VGA video output, and USB2.0 backup, this DVR is perfect for the home or small business. The DVR also features the most updated 3G mobile live! Preview via mobile phone.
The cameras included in the kit are 1/3 inch CMOS Chip 480TV Line, 3.6mm Lens (Wide Angle) 24PCS IR Led Outdoor Camera. All cables and power supplies are included.
The CCTV Systems 360-degree Protect your Home or small Business, Safe Life - So easy!
DVR Features:
* video compression format is the second-generation H. 264 (Main Profile) ;
* Support Up to 1x 2TB;
* support the six operation working simultaneously, recording, playback, network transmission, backup, mobile phone surveillance and interface operating;
* Support Window Mobile, Symbian, Android, iPhone, BlackBerry;
* come with a dynamic domain name, don't need to apply for it. Automatically through the router, do not need to manually map the ports.
If you are not at home, the home alarm system will start the e-mail alarm functions.
When a thief broke into your house, the device will immediately send an alarm message and a picture to your pointed email address. And if your phone is bound to the email, then you'll be able to receive e-mail reminder, and after activating the phone monitoring, you will be able to see thinss happening at home immediately.
When a thief broke into your house, the device will immediately send an alarm message and a picture to your pointed email address. And if your phone is bound to the email, then you'll be able to receive e-mail reminder, and after activating the phone monitoring, you will be able to see thinss happening at home immediately.
Camera Features:
* 1/3inch color CMOS Chip
* 480 TV Lines Horizontal Resolution
* 3.6mm Lens (Wide Angle)
* 24PCS IR Leds
* IP66 IP Rate
* 1/3inch color CMOS Chip
* 480 TV Lines Horizontal Resolution
* 3.6mm Lens (Wide Angle)
* 24PCS IR Leds
* IP66 IP Rate
DVR Specification | |
Video Compression | H. 264 (Main Profile) |
Picture Standard | PAL: 720 x 576 / NTSC: 720 x 480 |
Resolution Encoded | CIF |
Video Input | BNC x 4, 1.0Vp-p/ 75? |
Video Output | BNC x 1, VGA x 1 |
Recording Frame Rate | PAL: 100FPS, NTSC: 120FPS |
Audio Input | RCA x 1 |
Audio Output | RCA |
Audio encoded standard | ADPCM |
Audio encoded Rate | 32kbps |
Record Mode | Manual record, motionrecord and externa alarm record |
Mult Mode | Record, Play, Internet |
Playback | 4CH playback simultaneously |
Network Port | RJ45 10M/ 100M |
PTZ Port | RS485 |
Hard Disk Port | 1 SATA up to 2TB |
USB Port | 2 x USB port, Support Mouse, U disk and USB portable hard drive disk |
VGA Port | 1 x VGA port, Surpport up to 1024*768/60Hz Resolution |
Power Supply | 12V/ 3A DC |
Operational Temperature | 0 Degree C~+60 Degree C |
Operational Humidity | 10%~90% |
Camera Specification | |
Image Sensor | 1/3 inch Color CMOS |
Effective Pixels | PAL: 628 (H) x 582 (V) |
Horizontal Resolution | 480 TV Lines |
Lens | 3.6mm |
Min. Illumination | 0.0 Lux |
IR Led | 24PCS |
BL/ WB/ AGC | Auto |
IP Rate | IP66 |
S/ N Ratio | ) 45.6dB |
Shutter Speed | 1/50 (1/60) ~1/1000.000s |
++ Package included ++
1 x 4CH H. 264 Network Digital Video Recorder
4 x 1/3 inch color CMOS 420TVL 24IR Leds Weatherproof Cameras
4 x 20M Power Video Plug and Play Cable for CCTV Camera
1 x 12V/ 2000mA 4 Port Power Supply for CCTV Camera
1 x Mouse for DVR
1 x Remote Control for DVR
1 x DC12V Power Adapter for DVR
4 x Weatherproof Bracket for CCTV Camera
Packaging Details
- Unit Type:
- piece
- Package Weight:
- 5.500kg
- Package Size:
- 47cm x 31cm x 19cm
