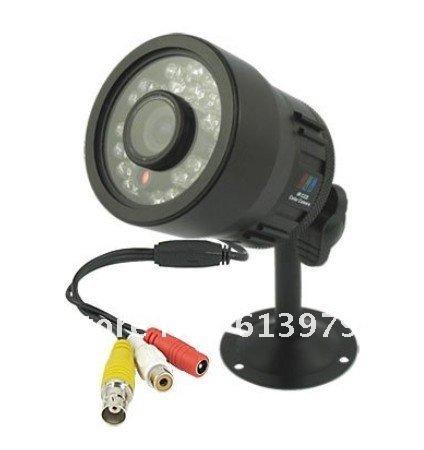

Home security 1\4 inch Sharp 420TVL 23LEDs Day and Night Weatherproof IR Waterproof Camera

Home security 1\4 inch Sharp 420TVL 23LEDs Day and Night Weatherproof IR Waterproof Camera

家庭安防1/4英寸夏普420线23LEDs日夜全天候红外防水摄像机

48 USD

加入意向

项目细节

技术:
红外线
类型:
录影机
品牌:
全新的
传感器品牌:
尖锐
传感器:
CCD
特殊功能:
防水/防水
型号:
WI-CM35AIR

产品描述

技术参数:

  • 类型:彩色摄像机
  • 拾取装置:1/4 SHARP CCD图像传感器
  • 像素高x五:
  • NTSC:512×492- PAL:512×582
  • 水平清晰度:420线
  • 垂直频率:NTSC:59.94Hz- PAL:50赫兹
  • 扫描系统:2:1隔行
  • 迷你照明:0 LUX随着23红外灯的ON
  • 同步:内部
  • S / N比:)48分贝
  • 电子快门:高达1 / 100000sec
  • 白平衡:自动白平衡
  • IR雷:880〜940纳米的红外波长度
  • 镜头:3.6毫米
  • 伽玛:0.45
  • 视频输出:平1Vp-P 75欧姆
  • 自动增益控制:自动
  • 电源:12VDC(+ / -10%)
  • 功耗:350毫安(+ / -10%)
  • 颜色:黑色
  • 储存温度:( - )30(+)60
  • 工作温度:( - )10(+)50

项目包括:

  • 1个1/4英寸夏普芯片,23LED红外日夜全天候安防CCTV有线CCD彩色摄像机
  • 1个摄像机支架

包装详细信息

单位类型:
包装重量:
0.600千克(1.32磅。)
包装尺寸:
21厘米x 21公分x20厘米(8.27in x 8.27in x 7.87in)

Item specifics

Technology:
Infrared
Type:
Video Camera
Brand Name:
Brand New
Sensor Brand:
Sharp
Sensor:
CCD
Special Features:
Waterproof / Weatherproof
Model Number:
WI-CM35AIR

Product Description

Specifications:

  • Type: Color Camera
  • Pick-up Device: 1/4 SHARP CCD Image Sensor
  • Picture Elements H x V:
  • NTSC: 512 x 492- PAL: 512 x 582
  • Horizontal Resolution: 420 Lines
  • Vertical Frequency: NTSC: 59.94Hz- PAL: 50Hz
  • Scanning System: 2: 1 Interlace
  • Mini Illumination: 0 LUX With 23 IR LED'S On
  • Synchronization: Internal
  • S/ N Ratio: ) 48db
  • Electronic Shutter: Up to 1/100000sec
  • White Balance: Auto white Balance
  • IR Ray: 880~940 nm Infrared Wave Length
  • Lens: 3.6mm
  • Gamma: 0.45
  • Video Output: 1Vp-p 75 Ohms
  • Auto Gain Control: Auto
  • Power Supply: 12VDC (+/ -10%)
  • Power Consumption: 350mA (+/ -10%)
  • Color: Black
  • Storage Temperature: (-) 30 to (+) 60
  • Operating Temperature: (-) 10 to (+) 50

Item Includes:

  • 1 x 1/4 Inch Sharp Chip, 23LED Infrared Day&Night Weatherproof Security CCTV Wired CCD Color Camera
  • 1 x Camera Bracket

Packaging Details

Unit Type:
piece
Package Weight:
0.600kg (1.32lb.)
Package Size:
21cm x 21cm x 20cm (8.27in x 8.27in x 7.87in)
