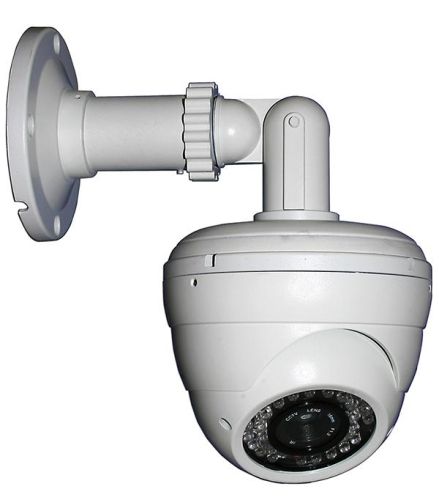

索尼700TVL IR央视圆顶防水安全监控视频监控摄像头安装带有可变焦距镜头

产品特点:
* 1/3 SONY六百三十九分之六百三十八超级HAD CCD + S3000 700TVL高解析度
* 0.1 LUX /彩色照度,0 LUX红外灯开启
* 36×D5最大功率860Nm红外灯30米红外距离
*全金属外壳,IP66防水等级
*变焦镜头4-9mm(2.8-12mm变焦镜头可选)
* 9-18V宽范围电源输入
*双玻璃,防雾灯设计
技术参数:
型号。 | WSK-8JHE | |
传感器 | 1/3“SONY六百三十九分之六百三十八超级HAD CCD + DSP S3000 | |
信号 | 朋友 | NTSC |
像素 | 752(H)* 596(V)的570K | 689(H)* 496(V)的480K |
线 | 700TVL | |
照明 | 0LUX /红外灯开启 | |
透镜 | 变焦镜头4-9mm | |
红外灯 | 36颗φ5mm的大功率红外灯 | |
红外距离 | 30米 | |
垂直 | 50赫兹 | 60赫兹 |
卧式 | 15.625KHz | 15.734KHz |
时钟 | 28.375MHz | 28.636MHz |
扫描 | 2:1隔行 | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100000s | 1/60-1/100000s |
W.B | 自动跟踪 | |
B.L.C | 上 | |
A.G.C | 上 | |
伽玛 | 0.45 | |
视频输出 | 1VP-P,75Ω | |
IP等级 | 没有 | |
功率 | DC / 9-18V | |
体积重量 | 1.5千克 | |
套餐包括:
1个1/3索尼CCD 700TVL 36IR LED防暴/室外监控摄像机
1个螺丝
1 X用户手册
送货
我们很高兴地接受来自欧洲,北美,澳大利亚等国家的订单,某些国家限制可能适用。
包裹将用航空挂号信一般需要12-25个工作日(周末不包含)提供在您的手中运到你。
请允许48小时的准备送货,但通常项目发送48小时内确认付款后。
我们提供装运相结合,买家谁从同一个站点订购多个项目一次时间,以节省邮资的一部分。
我们不会负责项目损失由于错误或无法投递的地址。
所有包裹将被巧辩的礼物',我们总是试图最好从法律上最大限度地减少您的进口关税(或商品及服务税或增值税或其他税费)。 在航运大多数情况下,有没有支付义务。 但是,如果通关所产生的任何额外费用必须由客户承担。
保证
1.12个月生产的保修缺陷的项目(不包括损坏和/或收据后误用项目)
2.有缺陷的项目必须报和在保修期内退回给我们(和原装包。)。我们会给你一个回报的ID。 同时请告诉我们的缺陷是什么,杜绝使用不当。
3.返回运费是由买方负责。
客户服务:
我们保持高标准excellenceand的争取100%的客户满意度。 反馈是对我们非常重要。 我们要求您立即与我们联系之前,你能给我们neutralor负反馈,从而使我们能够圆满解决您的问题。
感谢您访问我们的商店,并欢迎旁边。
Features:
* 1/3 SONY 638/639 Super Had CCD + S3000 700TVL high resolution
* 0.1 LUX / color illumination, 0 LUX IR ON
* 36 X D5 max power 860Nm IR LED, 30 meters IR distance
* full metal casing, IP66 waterproof level
* Vari-focal lens 4-9mm (2.8-12mm Vari-focal lens is optional)
* 9-18V wide range power input
* Double glass, anti-fog design
Specifications:
Model No. | WSK-8JHE | |
Sensor | 1/3″ Sony 638/639 Super Had CCD + S3000 DSP | |
Signal | PAL | NTSC |
Pixels | 752 (H) *596 (V) 570K | 689 (H) *496 (V) 480K |
Line | 700TVL | |
Illumination | 0Lux / IR ON | |
Lens | Vari-focal lens 4-9mm | |
IR LED | 36pcs Φ5mm High Power IR LED | |
IR Distance | 30 Meter | |
Vertical | 50Hz | 60Hz |
Horizontal | 15.625KHz | 15.734KHz |
Clock | 28.375MHz | 28.636MHz |
Scanning | 2: 1 Interlace | |
S.N.R | ≥50dB | |
E.S | 1/50-1/100000s | 1/60-1/100000s |
W.B | Auto Tracking | |
B.L.C | ON | |
A.G.C | ON | |
Gamma | 0.45 | |
Video Output | 1Vp-p, 75Ω | |
IP Rating | No | |
Power | DC/ 9-18V | |
Volume Weight | 1.5kg | |
Package includes:
1 x 1/3 Sony CCD 700TVL 36IR LED Vandalproof/ Outdoor Security Camera
1 x Screws
1 x Users manual
Shipping
We are happy to accept orders from Europe, North American, Australasia, and other countries, certain country restrictions may apply.
Parcel will be shipped to you by Registered Airmail that generally takes 12-25 business days (weekend is not included) to deliver on your hands.
Please allow up to 48 hours preparation for shipping, although usually item send within 48 hours after payment confirmed.
We offer shipment combine to buyer whom ordered more than one items once time from same site, to save a part of postage.
We will not be responsible for item loss because of wrong or undeliverable address.
All of parcels will be declaimed as Gift', and we always try the best to Legally Minimize your import duties (or GST or V. A. T. or other Taxes) . In the most cases of shipping, there is none duty payable. However, if any additional charges generated for customs clearance must be borne by customer.
Warranty
1. 12 months Manufacture's Warranty for defective items (excluding items damaged and/ or misused after receipt)
2. Defective items Must BE reported and returned to us within the warranty period (and the original package.) .we will give you a return ID. Meanwhile Please tell us what the defect is, to eliminate improper use.
3. Return shipping fee be responsible from buyer .
Customer service:
We maintain high standards of excellenceand strive for 100% customer satisfaction. Feedback is very important to us. We request that you contact us Immediately BEFORE you give us neutralor negative feedback, so that we can satisfactorily address your concerns.
Thanks for visit our store and welcome next.
