威斯曼的XRA系列稳压X射线功率suppliesoffer输出电压为30KV，并集成了灯丝电源提供稳压的直流电流可调0A和3.5 A在5.5V之间。 高电压和灯丝电流可以线性斜坡上升。 可选的USB 2.0，RS-232或RS-422是可用的。 在西罗公司合并
本地和远程编程，安全联锁。 短路和过载保护。
典型应用：
阴极接地X射线管，从Kevex。
牛津，RTW，高级，瓦里安和Trufocus .....
选项​​：
CA20N威斯曼CA20N连接器。
USB USB接口
RS232 RS-232接口
RS422 RS-422接口
NAT ARC，不关机
AT（X）ARC，关机（可选1-8弧）
技术参数：
输入：
24V直流±10％，3.0A最大。
输出：
6KV，8KV，10KV，15KV，20KV，25KV，30KV最大的7种型号的输出电压可用。 1.5W，6W，10W，20W，30W，40W最大6款车型的输出功率是可用的。
电压控制：
本地：内部多圈电位器从0设置电压到全输出电压。
远程：0至+ 10V直流比例从0到全输出电压。
排放控制：
本地：内部电位器设定在0至全输出电流束电流。
远程：0至+ 10V直流比例从0到全输出电流。
灯丝电源：
电流：0-3.5A，可调节极限。
电压：5.5伏特的限制。
电压调节：
负载：输出电压的0.001％，空载到满载。
行：±在输入电压±10％的变化0.001％。
电流调节：
负载：输出电流的0.001％从0到额定电压。
行：±在输入电压±10％的变化0.001％。
波纹：
0.01％P-P的最大额定输出电压。
环境：
操作：0°C至+ 50°C
温度系数：
≤25ppm/℃，电压和电流。
稳定性：
≤0.01％/小时，0.02％，每8小时后的半小时热身。
电压和电流监视器：
0〜+ 5V直流比例从0到额定输出。 精度±1％
尺寸：
2.56'H x 4.53'W x 5.91'D
（65.00毫米x115.00毫米x150.00mm）

在威斯曼信息及其众多高压产品，可拨打+ 86-29-3369-3480或访问他们的网站：http：//www.wismanhv.com

威斯曼高压电源是定制的全球领先供应商的设计和标准的AC-DC和DC-DC高压电源转换器：医疗，工业，分析，和安全应用; 半导体制造; 科学仪器; 和供电系统的海底电缆。 威斯曼总部设在中国。 提供设计，制造和服务为我们的客户遍布世界各地。

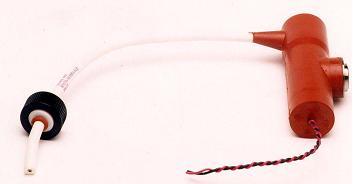

Wisman's XRA Series of regulated X-ray power suppliesoffer output voltages to 30KV and incorporate a filament supply which provides regulated dc current adjustable between 0A and 3.5 A AT 5.5V. High voltage and filament current can be linearly ramped up . An optional USB 2.0, RS-232 or RS-422 is available . The XRA incorporates
local and remote programming, safety interlock. short-circuit and overload protection.
TYPICAL APPLICATIONS:
Grounded cathode X-ray tubes from Kevex.
Oxford, RTW, Superior, Varian and Trufocus.....
OPTIONS:
CA20N WISMAN CA20N connector.
USB USB Interface
RS232 RS-232 Interface
RS422 RS-422 Interface
NAT ARC, does not shutdown
AT (X) ARC, shutdown (option 1-8 arc)
SPECIFICATIONS:
Input:
24Vdc±10% , 3.0A maximum .
Output:
6KV, 8KV, 10KV, 15KV, 20KV, 25KV, 30KV 7 models maximum output voltage is available. 1.5W, 6W , 10W , 20W, 30W , 40W 6 models maximum output power is available.
Voltage Control:
Local: Internal multi-turn potentiometer to set voltage from 0 to full output voltage.
Remote: 0 to +10Vdc proportional from 0 to full output voltage.
Emission Control:
Local: Internal potentiometer to set beam current between 0 and full output current.
Remote: 0 to +10Vdc proportional from 0 to full output current.
Filament Supply:
Current: 0-3.5A, adjustable limit.
Voltage: 5.5 volt limit.
Voltage Regulation:
Load: 0.001% of output voltage no load to full load.
Line: ±0.001% for ±10% change in input voltage.
Current Regulation:
Load: 0.001% of output current from 0 to rated voltage.
Line: ±0.001% for ±10% change in input voltage.
Ripple:
0.01% p-p of maximum rated output voltage.
Environmental:
Operational: 0°C to +50°C
Temperature Coefficient:
≤25ppm/ °C , voltage and current.
Stability:
≤0.01%/ hour, 0.02% per 8 hours after a 1/2 hour warm up.
Voltage and Current Monitors:
0 to +5Vdc proportional from 0 to rated output. Accuracy±1%
Dimensions:
2.56'H x 4.53'W x 5.91'D
(65.00mm x 115.00mm x150.00mm)

Information on wisman and their wide range of high voltage products is available by calling +86-29-3369-3480, or by visiting their website: http: //www.wismanhv.com

wisman High Voltage power supply is the world's leading provider of custom designed and standard AC-DC and DC-DC high voltage power converters for: medical, industrial, analytical, and security applications; semiconductor manufacturing; scientific instrumentation; and power feed systems for undersea cables. wisman is headquartered in the china. that provide design, manufacturing and service to our customers throughout the world.
